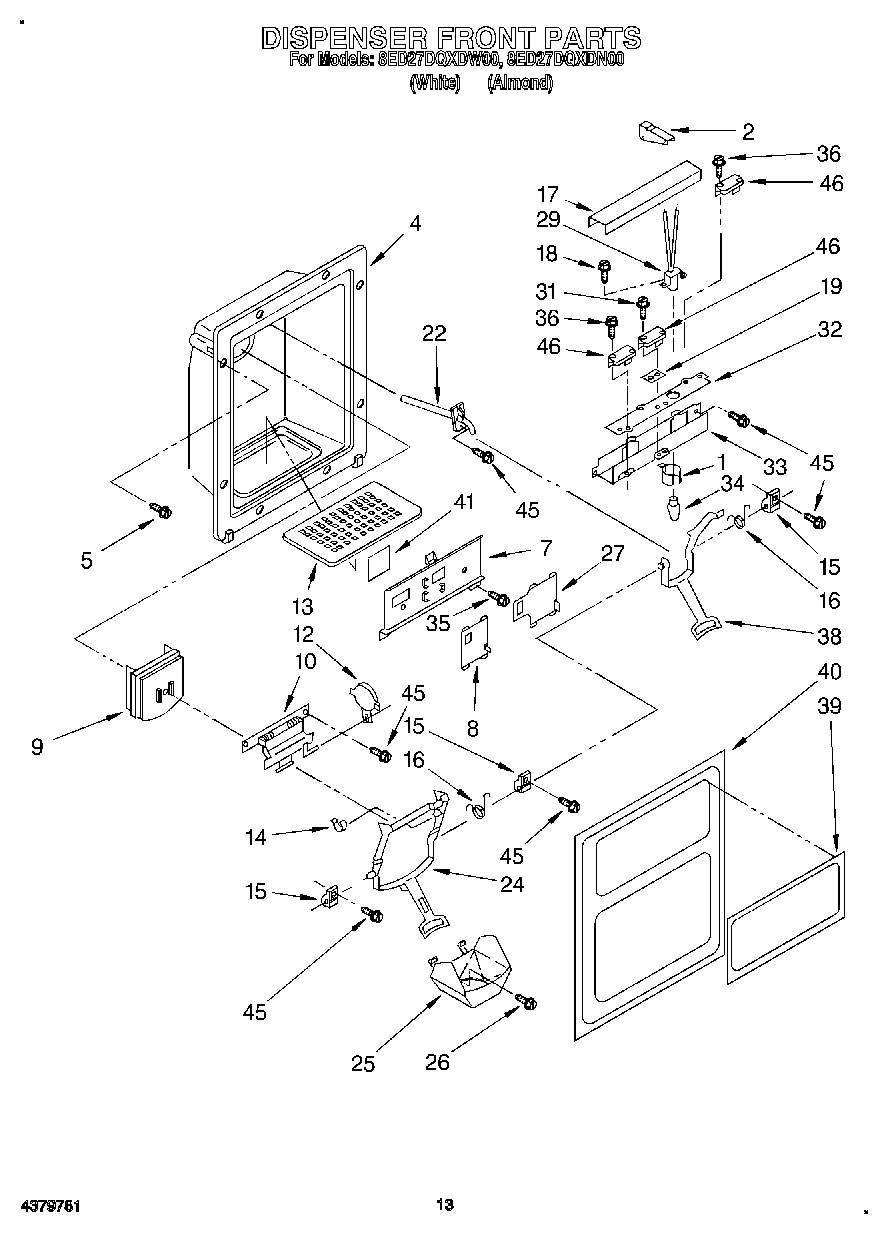

8ED27DQXDW00 08 – DISPENSER FRONT

Products

PositionProduct
1Shroud, Bracket
2Cover, Switch
4Housing, Dispenser (Not a Serviceable Part)
5W11693756 Whirlpool Screw Assembly
7Frame, Slides (Almond)
7Frame, Slides
8Slide, Cube/Crush Switch
8Slide, Cube/Crush Switch (Almond)
9WP2180353 Whirlpool Dispenser Door
10Door Mechanism Assembly
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow (Almond)
13Grille, Overflow (White)
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
19Spacer, Switch (2)
22WP4388152 Whirlpool Refrigerator Fitting
24Lever, Ice Dispenser (White)
24Lever, Ice Dispenser (Almond)
25Guide, Ice (Almond)
25Guide, Ice
26Screw
27Slide, Light Switch (Almond)
27Slide, Light Switch
29Lamp Holder
31Screw, 4-40 x 1
32Insulator, Control Bracket
33Bracket, Control
34WP22002263 Whirlpool Dryer 10W Light Bulb
35WP489069 Whirlpool Compactor Screw
36Screw
38Lever, Water Dispenser (Almond)
38Lever, Water Dispenser (White)
39Plaque, Front Cover (White)
39Plaque, Front Cover (Almond)
40WPL 2174310
40WPL 2179202
41Heat Shield, Frame
45WP3400906 Whirlpool Refrigerator Screw
46WP2162361 Whirlpool Switch
