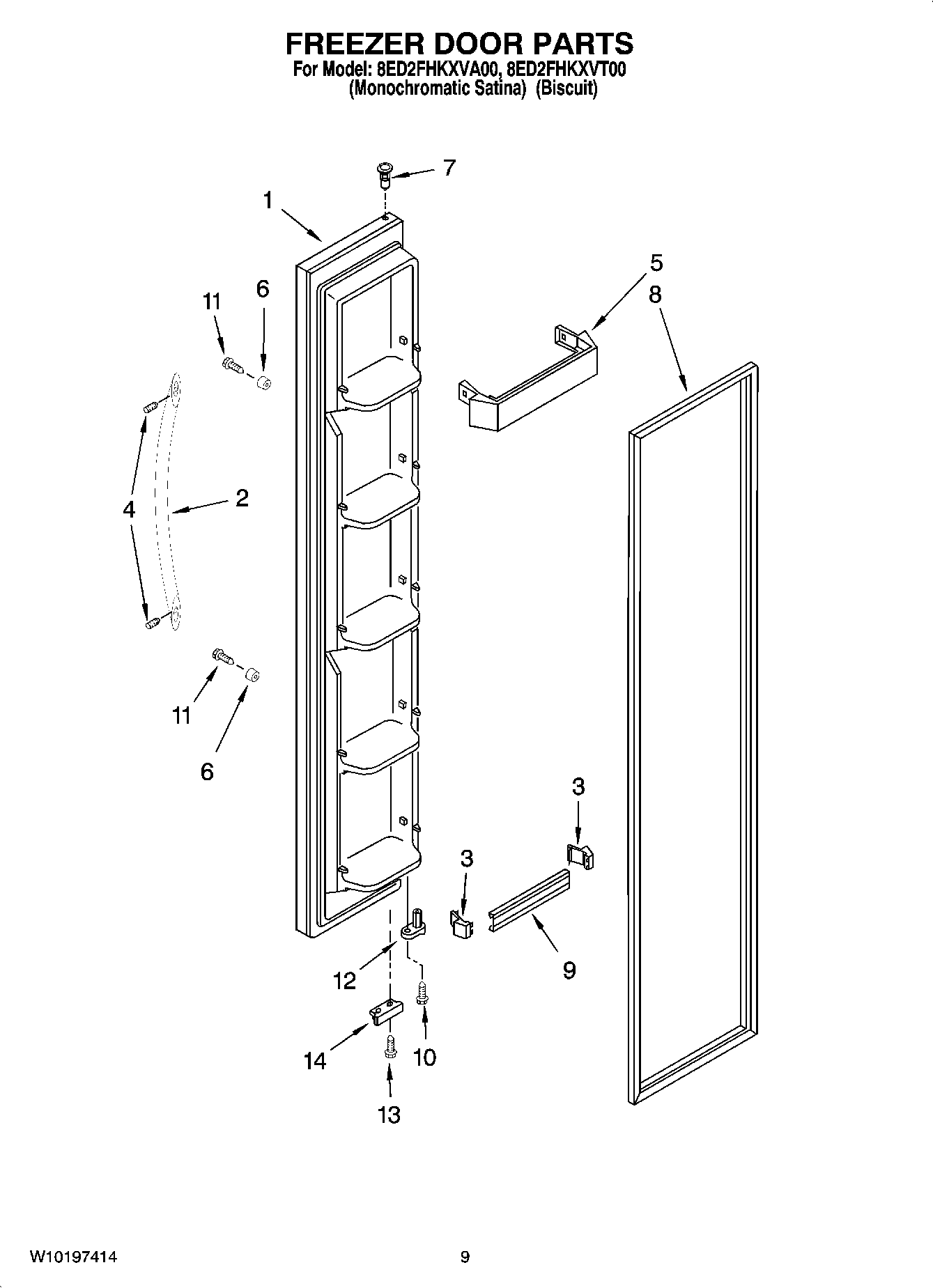

8ED2FHKXVA00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM No.8) (MONO SATINA)
1FREEZER DOOR (INCLUDES ITEM No.8) (BISCUIT)
22254608S Whirlpool Handle
2Handle (Biscuit)
3WP2195917K Whirlpool Refrigerator Endcap
4SCREW
5WP2156021 Whirlpool Refrigerator Door Trim
6WPW10170540 Whirlpool Screw
7WP2182181 Whirlpool Refrigerator Thimble
82159072 Whirlpool Refrigerator FIP Gasket
9Trim, Door (3)
10WP3400012 Whirlpool Refrigerator Screw
11WP488163 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
14Bracket, Door Stop (Apollo Grey)
