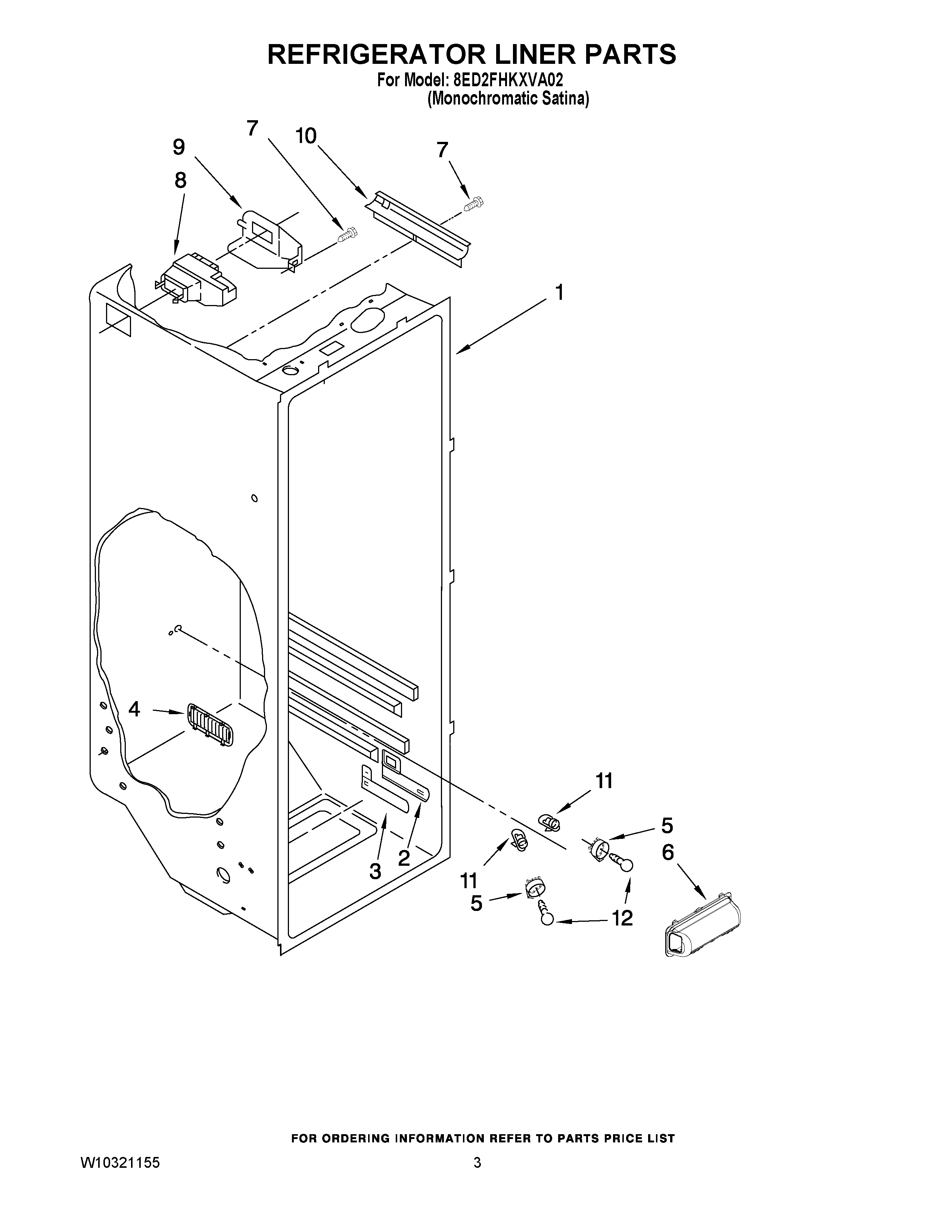

8ED2FHKXVA02 02 – REFRIGERATOR LINER PARTS

8ED2FHKXVA02 02 – REFRIGERATOR LINER PARTS

Written by

in

8ED2FHKXVA02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5WP2175210 Whirlpool Refrigerator Shroud
6W11239891 Whirlpool Refrigerator Light Lens
7W10759522 Whirlpool Screw
8WPW10151374 Whirlpool Refrigerator Diffuser
92152019 Whirlpool Refrigerator Cover
10W10252495 Whirlpool Refrigerator Wire Cover
114387478 Whirlpool Refrigerator Light Socket
12RANGE ONLY 40W 120V APPL BULB
