8ED2FHKXVA02 04 – FREEZER LINER PARTS

8ED2FHKXVA02 04 – FREEZER LINER PARTS

Written by

in

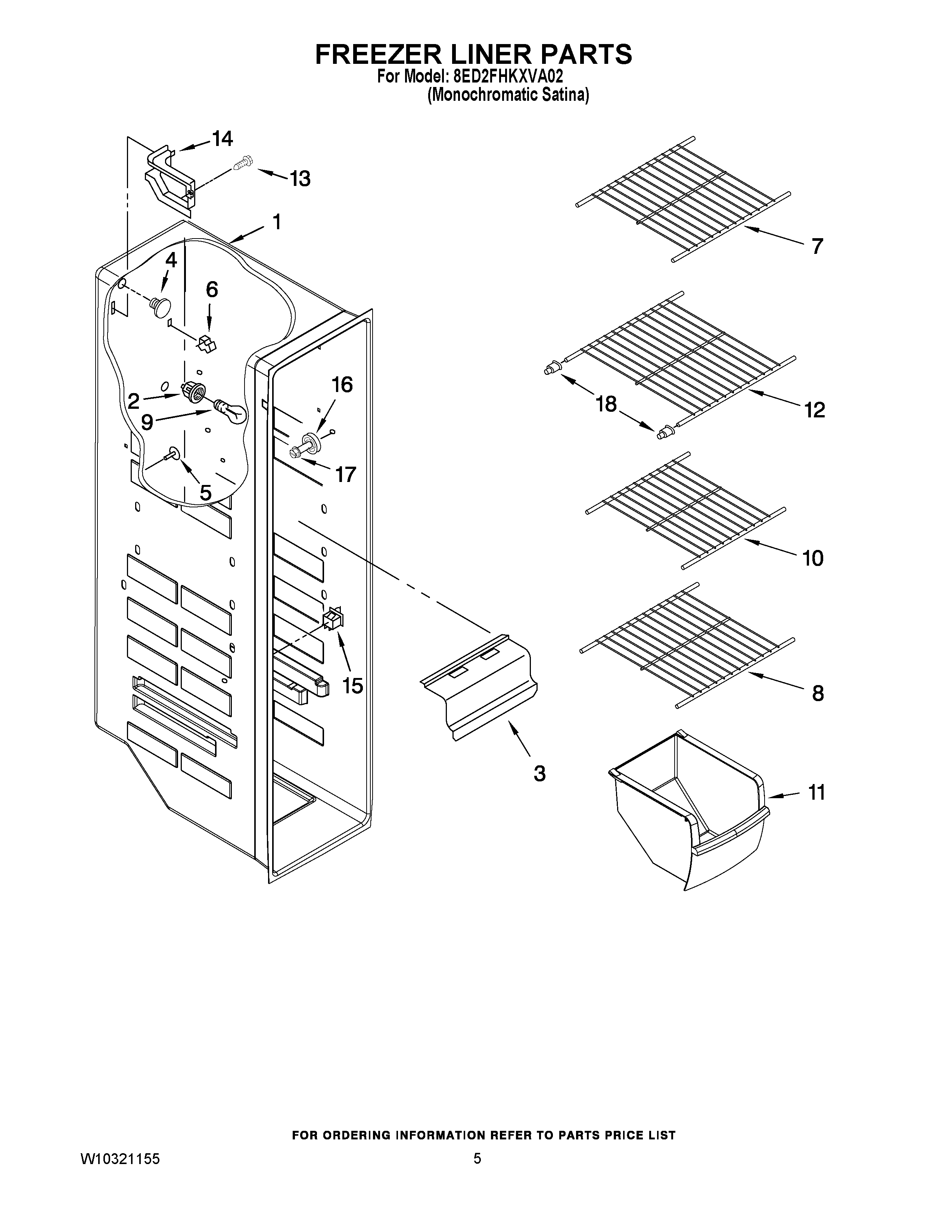

8ED2FHKXVA02 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2SOCKET
3WP2155595 Whirlpool Refrigerator Light Lens
42223173 Whirlpool Refrigerator Tube Plug
5WP941839 Whirlpool Refrigerator Button Plug
62215823 Whirlpool Refrigerator Clip
7WPW10318951 Whirlpool Refrigerator Wire Shelf
8WPW10318949 Whirlpool Refrigerator Wire Shelf
9RANGE ONLY 40W 120V APPL BULB
10WPW10318953 Whirlpool Wire Shelf
11WP2309758 Whirlpool Refrigerator Freezer Bin
12WPW10318952 Whirlpool Wire Shelf
13WP489478 Whirlpool Refrigerator Screw
14Cover, Wiring
15W11384469 Whirlpool Door Switch
16W11527119 Whirlpool Refrigerator Shelf Stud
17WPW10191952 Whirlpool Refrigerator Screw
18WPW10130299 Whirlpool Refrigerator Cup
