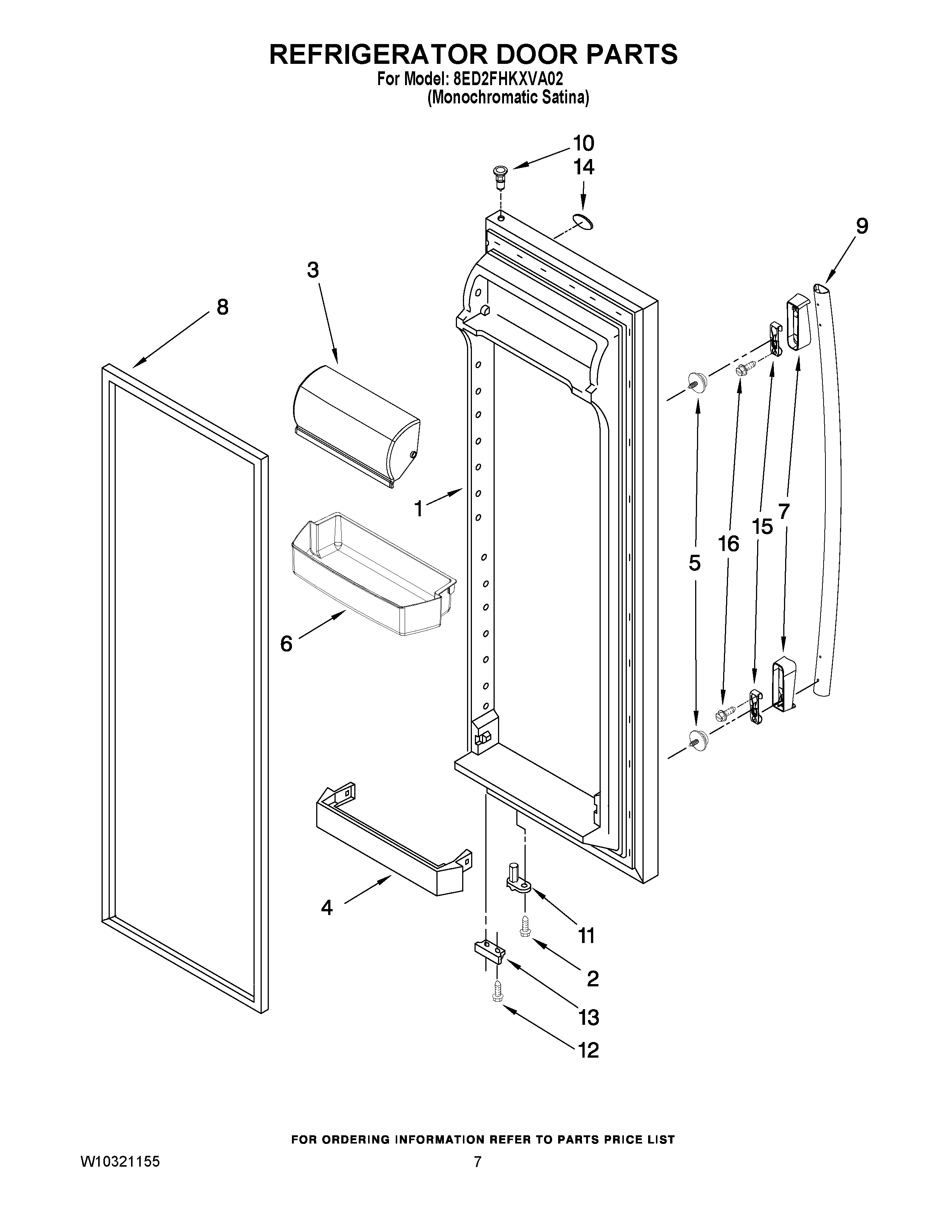

8ED2FHKXVA02 06 – REFRIGERATOR DOOR PARTS

8ED2FHKXVA02 06 – REFRIGERATOR DOOR PARTS

Written by

in

8ED2FHKXVA02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM No.8) (MONO SATINA)
2WP3400012 Whirlpool Refrigerator Screw
3WP2256101 Whirlpool Dairy Door
4WP2309941 Whirlpool Refrigerator Door Bar Trim
5WPW10288153 Whirlpool Refrigerator Screw
6WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7End Cap (Apollo Grey)
8W10136732 Whirlpool Refrigerator FIP Gasket
9WPW10257118K Whirlpool Refrigerator Handle
10WP2182181 Whirlpool Refrigerator Thimble
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13BRACKET, DOOR STOP (SILVER)
14Nameplate
15WP2255411 Whirlpool Refrigerator Clip
16W10267047 Whirlpool Screw
