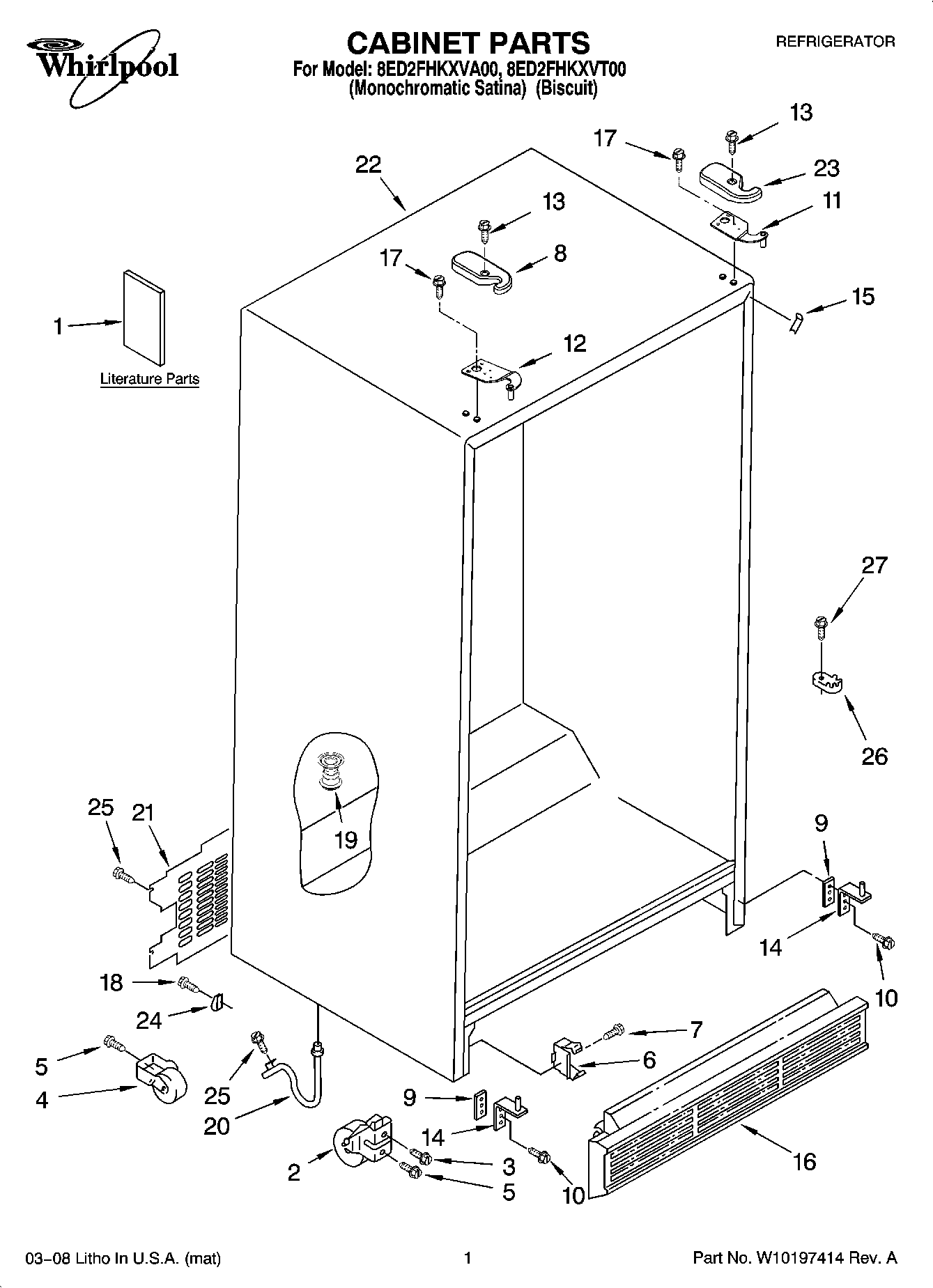

8ED2FHKXVT00 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Use and Care Guide (English)
1	Use and Care Guide (Chinese)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	2203407AP Whirlpool Refrigerator Cover
8	2203407T Whirlpool Refrigerator Cover
9	WP2209697 Whirlpool Refrigerator Shim
10	WP489497 Whirlpool Screw
11	WP2203771 Whirlpool Refrigerator Door Hinge
12	WP2203770 Whirlpool Refrigerator Door Hinge
13	WP8281227 Whirlpool Screw
14	8201707 Whirlpool Door Hinge
15	W10851579 Whirlpool Refrigerator Filler
15	W10283958 Whirlpool Refrigerator Filler
16	Grille (Midnight Grey)
16	Grille (Biscuit)
18	W11693756 Whirlpool Screw Assembly
19	W11566763 Whirlpool Fitting
20	Extension Tube
21	Cover, Unit
22	Cabinet, (Not A Serviceable Part)
23	Hinge Cover (Biscuit)
23	2203408AP Whirlpool Refrigerator Cover
24	489348 Whirlpool Refrigerator Tube Clamp
26	WPW10329686 Whirlpool Door Cam Black
27	WP489483 Whirlpool Screw
