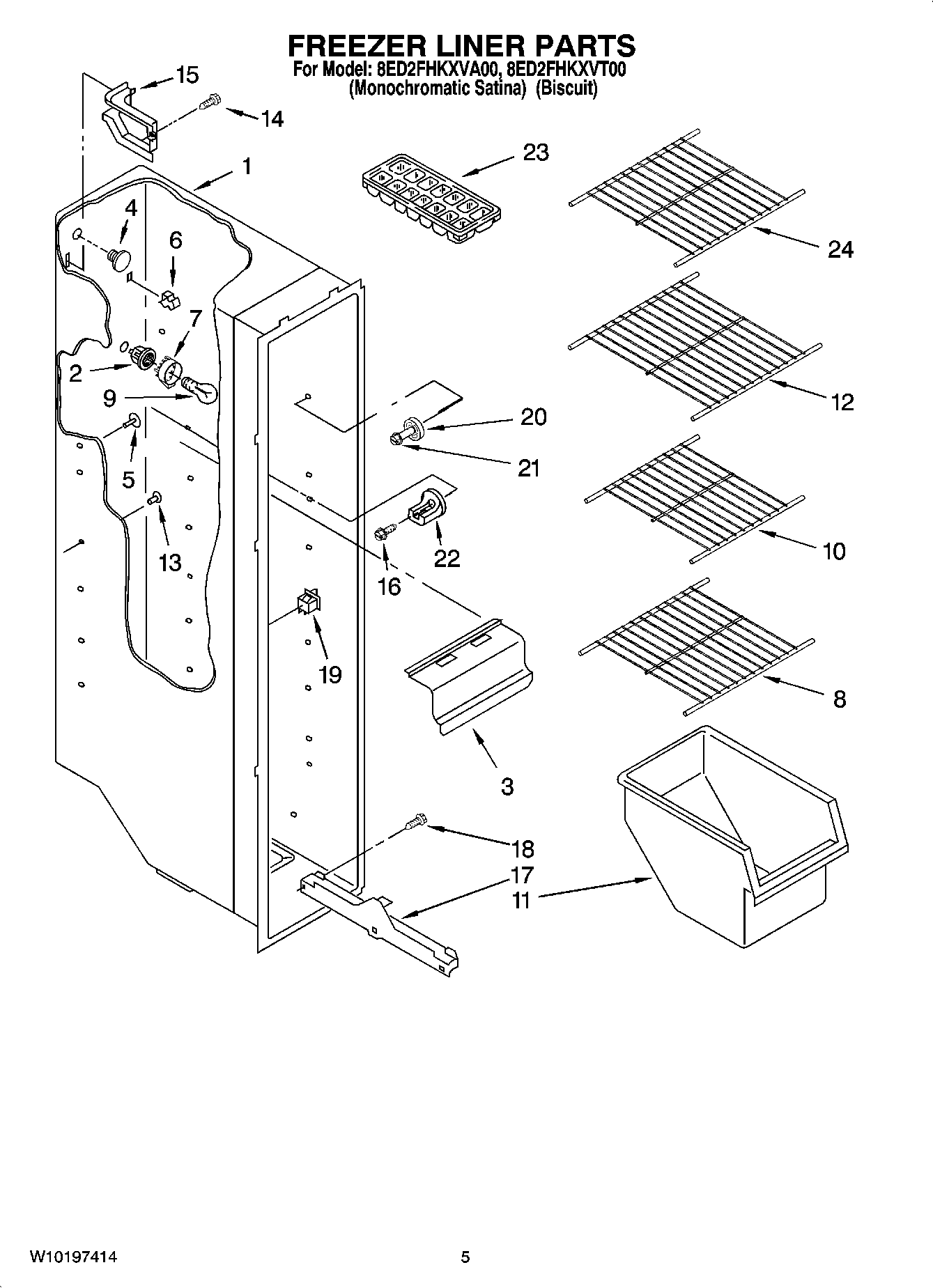

8ED2FHKXVT00 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	SOCKET
3	WP2155595 Whirlpool Refrigerator Light Lens
4	2223173 Whirlpool Refrigerator Tube Plug
5	WP941839 Whirlpool Refrigerator Button Plug
6	2215823 Whirlpool Refrigerator Clip
7	Shroud, Light
8	WPW10318949 Whirlpool Refrigerator Wire Shelf
9	RANGE ONLY 40W 120V APPL BULB
10	WPW10318951 Whirlpool Refrigerator Wire Shelf
11	WP2309758 Whirlpool Refrigerator Freezer Bin
12	WPW10318952 Whirlpool Wire Shelf
13	Grommet
14	WP489478 Whirlpool Refrigerator Screw
15	Cover, Wiring
16	W10142289 Whirlpool Air Conditioner Screw
17	W10845583 Whirlpool Refrigerator Track
17	Slide, Basket (Left Side)
18	718257 Whirlpool Dishwasher Screw
19	W11384469 Whirlpool Door Switch
20	WP2196483 Whirlpool Refrigerator Shelf Stud
21	WP3400806 Whirlpool Screw
22	Stud, Rear
23	WP841180A Whirlpool Microwave Glass Turntable Tray
24	WPW10318953 Whirlpool Wire Shelf
