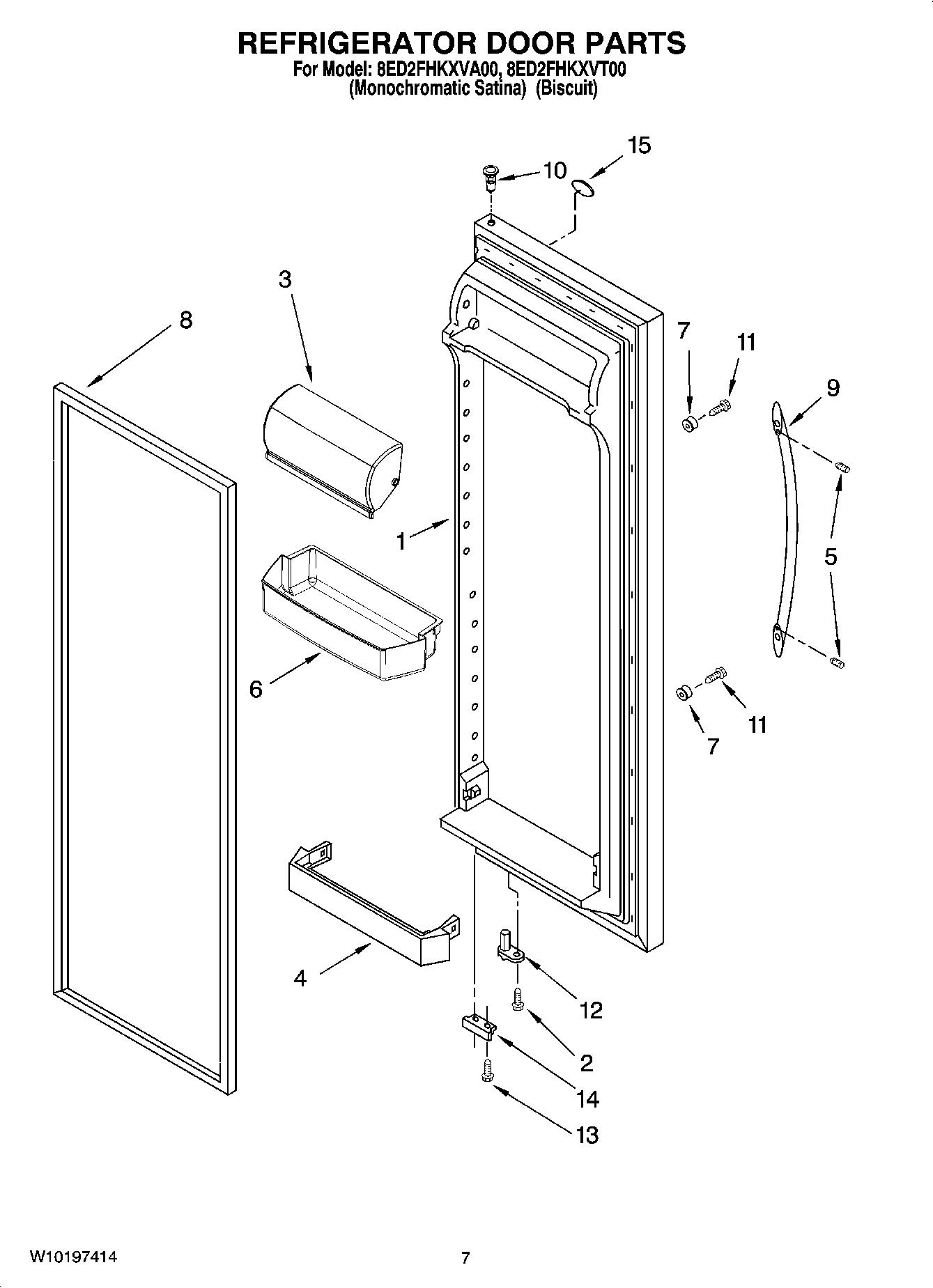

8ED2FHKXVT00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	L2206826T Whirlpool Refrigerator Dorr FIP BT
1	REFRIGERATOR DOOR (INCLUDES ITEM No.8) (MONO SATINA)
2	WP3400012 Whirlpool Refrigerator Screw
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	SCREW
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	WPW10170540 Whirlpool Screw
8	2159073 Whirlpool Refrigerator Door Gasket
8	W10136732 Whirlpool Refrigerator FIP Gasket
9	Handle (Biscuit)
9	2254608S Whirlpool Handle
10	WP2182181 Whirlpool Refrigerator Thimble
11	WP488163 Whirlpool Refrigerator Screw
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
14	Bracket, Door Stop (Apollo Grey)
15	Nameplate
15	Nameplate (Biscuit Model)
