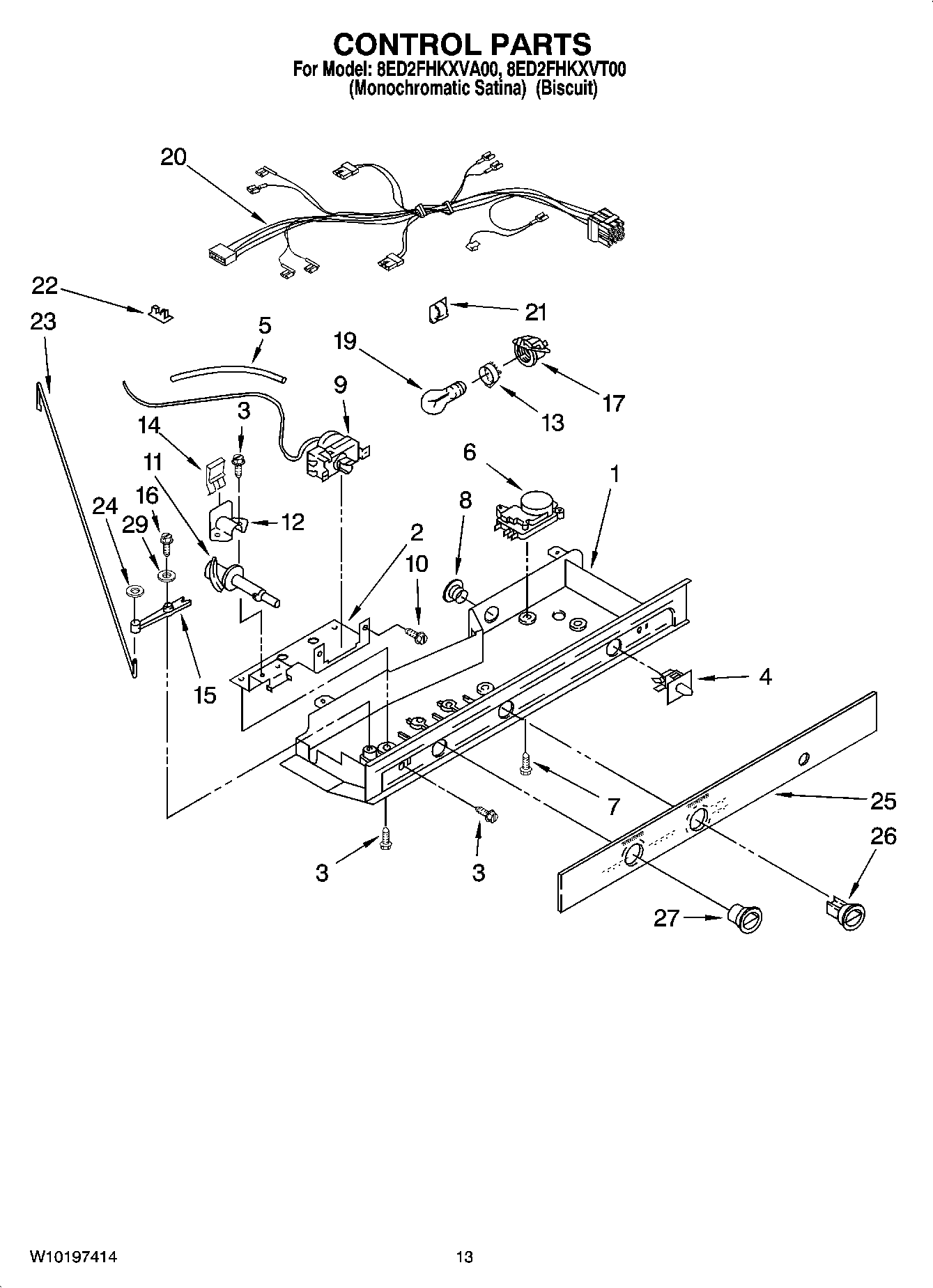

8ED2FHKXVT00 09 – CONTROL PARTS, OPTIONAL PARTS

8ED2FHKXVT00 09 – CONTROL PARTS, OPTIONAL PARTS

Written by

in

8ED2FHKXVT00 09 – CONTROL PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI18491A6
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI18492A3
WPL ARI18487A8
WPL ARI18488A2
WPL ARI18489A7
WPL ARI18490A9
Torx Key
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
350930 Whirlpool White Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
1Control Box
22311611 Whirlpool Refrigerator Bracket
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2196003 Whirlpool Refrigerator Bar Riser
6W10822278 Whirlpool Defrost Timer
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
10WP965173 Whirlpool Dishwasher Screw
11WP2182195 Whirlpool Refrigerator Cam
121110560 Whirlpool Refrigerator Bearing
13WP2175210 Whirlpool Refrigerator Shroud
14WP2196062 Whirlpool Refrigerator Clip
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
19RANGE ONLY 40W 120V APPL BULB
202311636 Whirlpool Refrigerator Wire Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon, Control Box
262182111 Whirlpool Refrigerator Thermal Knob
27Knob, Air Control
29489203 Whirlpool Refrigerator Washer
