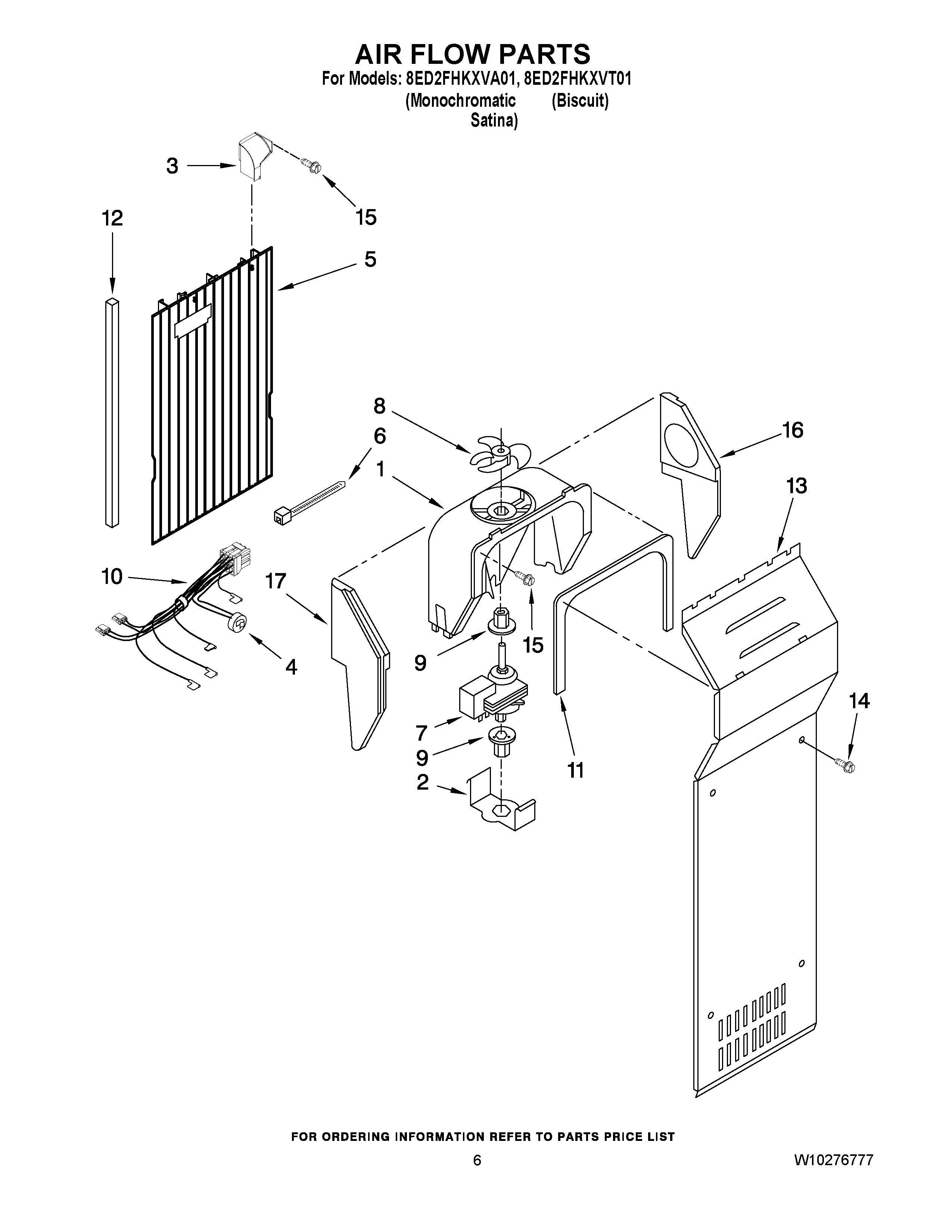

8ED2FHKXVT01 05 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3W10803597 Whirlpool Refrigerator Air Scoop
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5Air Duct Freezer
6WPW10339879 Whirlpool Wire Tie
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
9WP2176759 Whirlpool Refrigerator Grommet
10W11234406 Whirlpool Refrigerator Wire Harness
11WP2155789 Whirlpool Refrigerator Gasket
124388500 Whirlpool Refrigerator Gasket
134388357 Whirlpool Refrigerator Evaporator Cover
144389654 Whirlpool Screw
15WP489478 Whirlpool Refrigerator Screw
164388358 Whirlpool Refrigerator Support Bracket
