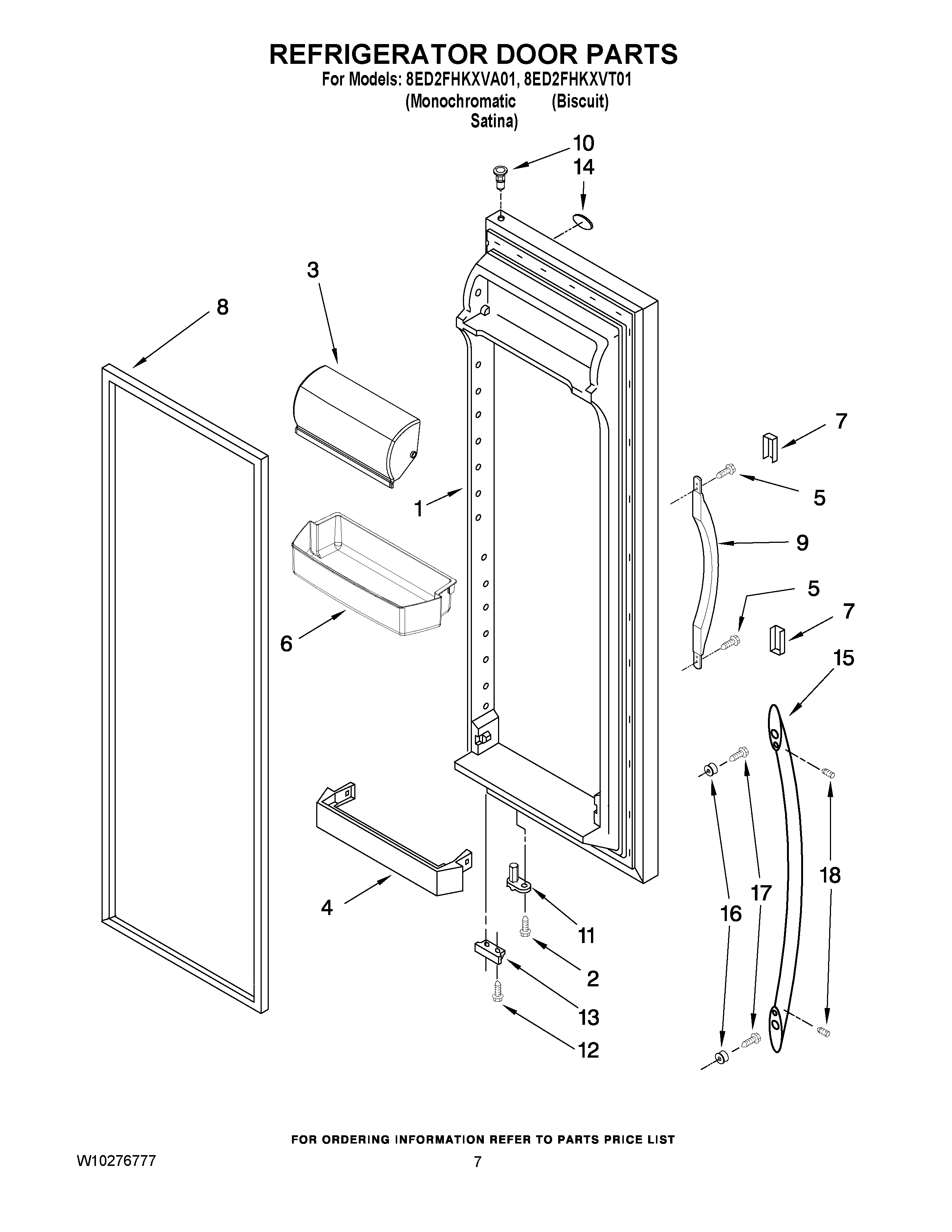

8ED2FHKXVT01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEM No.8) (MONO SATINA)
1	L2206826T Whirlpool Refrigerator Dorr FIP BT
2	WP3400012 Whirlpool Refrigerator Screw
3	WP2256101 Whirlpool Dairy Door
4	WP2309941 Whirlpool Refrigerator Door Bar Trim
5	WP489491 Whirlpool Refrigerator Screw
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	Trim, Handle (Biscuit)
8	2159073 Whirlpool Refrigerator Door Gasket
8	W10136732 Whirlpool Refrigerator FIP Gasket
9	Handle, Center (White)
9	Handle (Biscuit)
10	WP2182181 Whirlpool Refrigerator Thimble
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	BRACKET, DOOR STOP (SILVER)
14	Nameplate
15	Handle (Stainless)
16	WPW10170540 Whirlpool Screw
17	WP488163 Whirlpool Refrigerator Screw
18	SCREW
