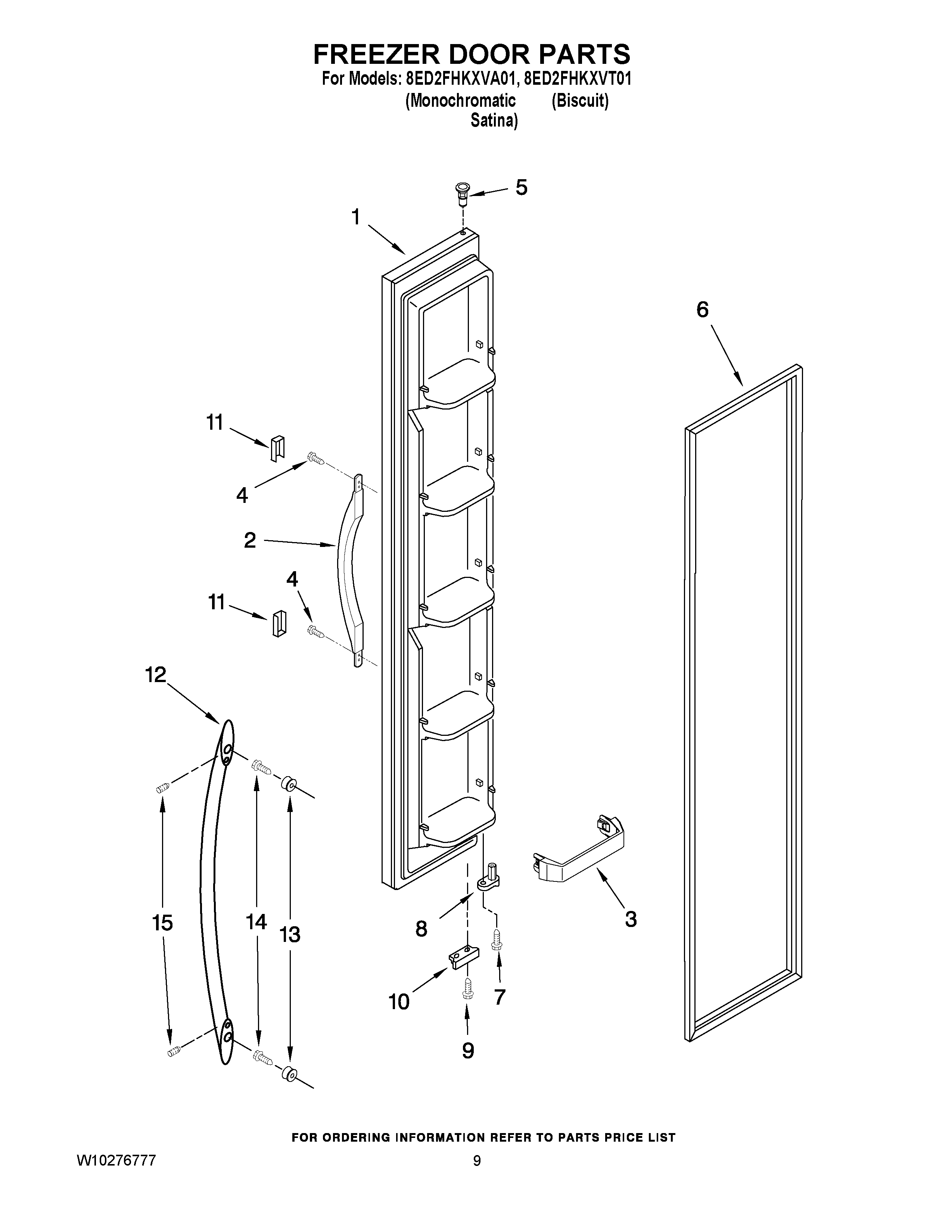

8ED2FHKXVT01 07 – FREEZER DOOR PARTS

8ED2FHKXVT01 07 – FREEZER DOOR PARTS

Written by

in

8ED2FHKXVT01 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM No.8) (BISCUIT)
1FREEZER DOOR (INCLUDES ITEM No.8) (MONO SATINA)
2Handle (Biscuit)
3WP2309717 Whirlpool Refrigerator Door Trim
4WP489491 Whirlpool Refrigerator Screw
5WP2182181 Whirlpool Refrigerator Thimble
6W10136733 Whirlpool Refrigerator FIP Gasket
62159072 Whirlpool Refrigerator FIP Gasket
7WP3400012 Whirlpool Refrigerator Screw
8WP2182179 Whirlpool Cam Closer
9WP489483 Whirlpool Screw
10W10185566 Whirlpool Bracket
11Trim, Handle (Biscuit)
12Handle (Stainless)
13WPW10170540 Whirlpool Screw
14WP488163 Whirlpool Refrigerator Screw
15SCREW
