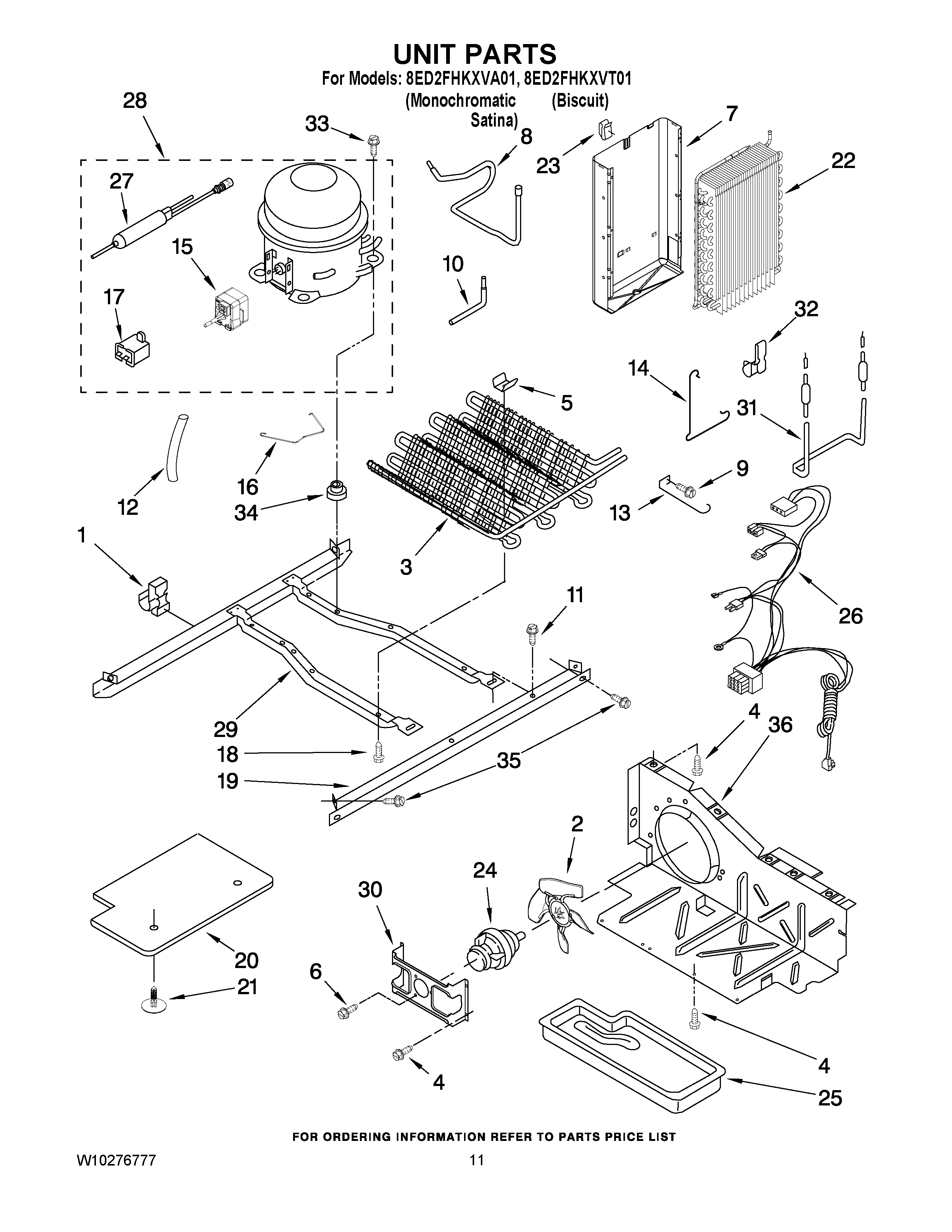

8ED2FHKXVT01 08 – UNIT PARTS

8ED2FHKXVT01 08 – UNIT PARTS

Written by

in

8ED2FHKXVT01 08 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	Clip, Wire & Tube
2	Blade, Fan
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	681390 Whirlpool Refrigerator Screw
7	WPW10194474 Whirlpool Refrigerator Shield
8	2220642 Whirlpool Refrigerator Tube
9	WP489478 Whirlpool Refrigerator Screw
10	W10858105 Whirlpool Refrigerator Tube
11	WP489427 Whirlpool Refrigerator Screw
12	SLEEVE
13	1105612 Whirlpool Fan Guard
14	Clamp
15	WP2188831 Whirlpool Refrigerator Start Device
16	2212996 Whirlpool Refrigerator Retainer
17	WP65889-4 Whirlpool Refrigerator Capacitor
17	CAPACITOR (SERVICE)
18	W11544659 Whirlpool Refrigerator Screw
19	WPW10196323 Whirlpool Refrigerator Rail Assembly
20	W11115203 Whirlpool Control Panel
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clip, Heat Shield
24	W10822259 Whirlpool Refrigerator Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Unit
27	WPW10143759 Whirlpool Dryer Filter
28	W10355489 Whirlpool Refrigerator Compressor
29	2304903 Whirlpool Refrigerator Frame
30	WP2181929 Whirlpool Refrigerator Bracket
31	WP2323197 Whirlpool Refrigerator Heater
32	W11623163 Whirlpool Refrigerator Clip
34	W11661108 Whirlpool Grommet
34	876811 Whirlpool Grommet
35	489340 Whirlpool Refrigerator Screw
36	Air Baffle
