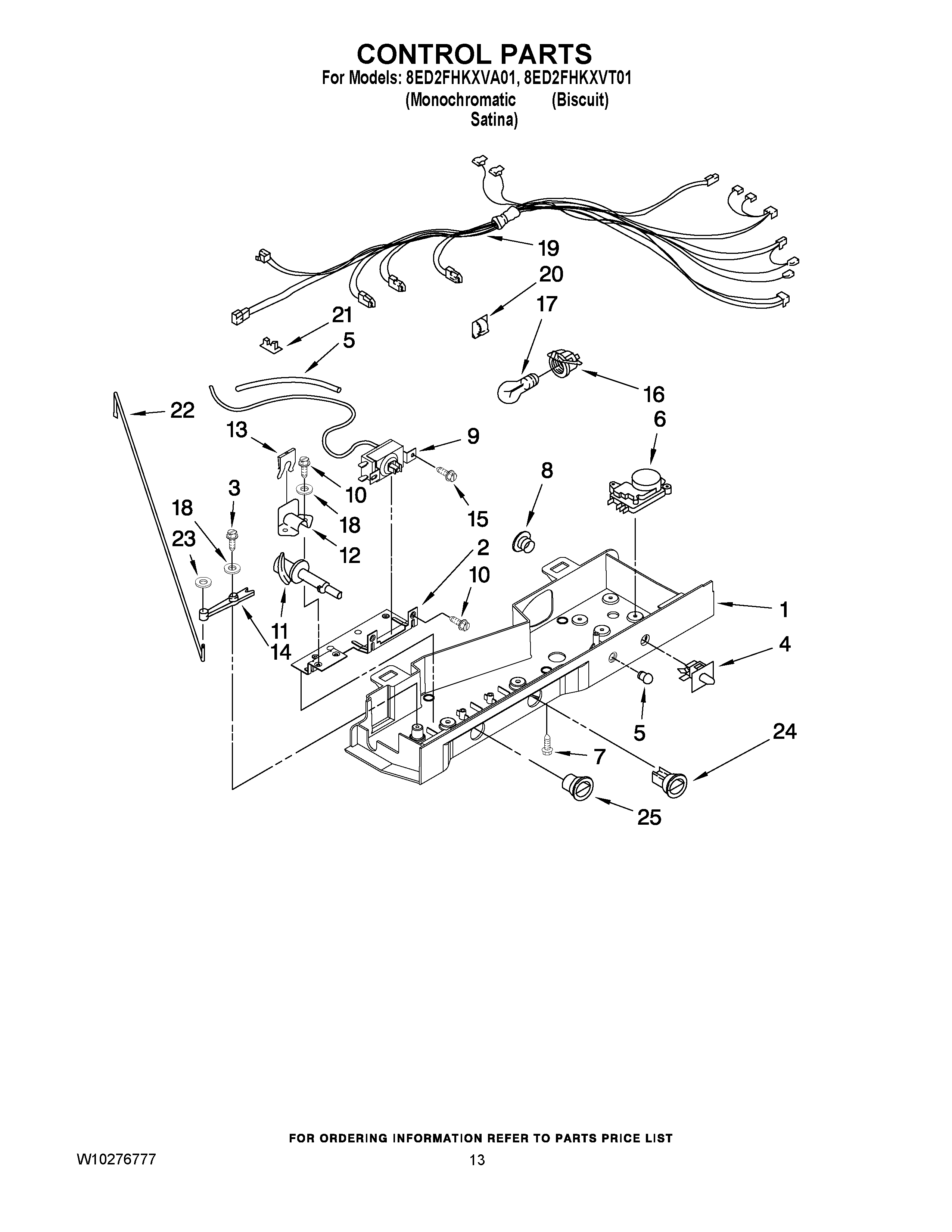

8ED2FHKXVT01 09 – CONTROL PARTS

Products

Position	Product
1	Control Box
2	2311611 Whirlpool Refrigerator Bracket
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	W10822278 Whirlpool Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
13	WP2196062 Whirlpool Refrigerator Clip
14	Pivot Arm
15	627068 Whirlpool Refrigerator Screw
16	4387478 Whirlpool Refrigerator Light Socket
17	RANGE ONLY 40W 120V APPL BULB
18	489203 Whirlpool Refrigerator Washer
19	2311636 Whirlpool Refrigerator Wire Harness
20	WP1115374 Whirlpool Refrigerator Clip
21	CLIP, WIRING
22	2311631 Whirlpool Refrigerator Rod
23	Fastener, Push-On
24	W10723843 Whirlpool Refrigerator Thermostat Knob
25	2311615 Whirlpool Refrigerator Knob
