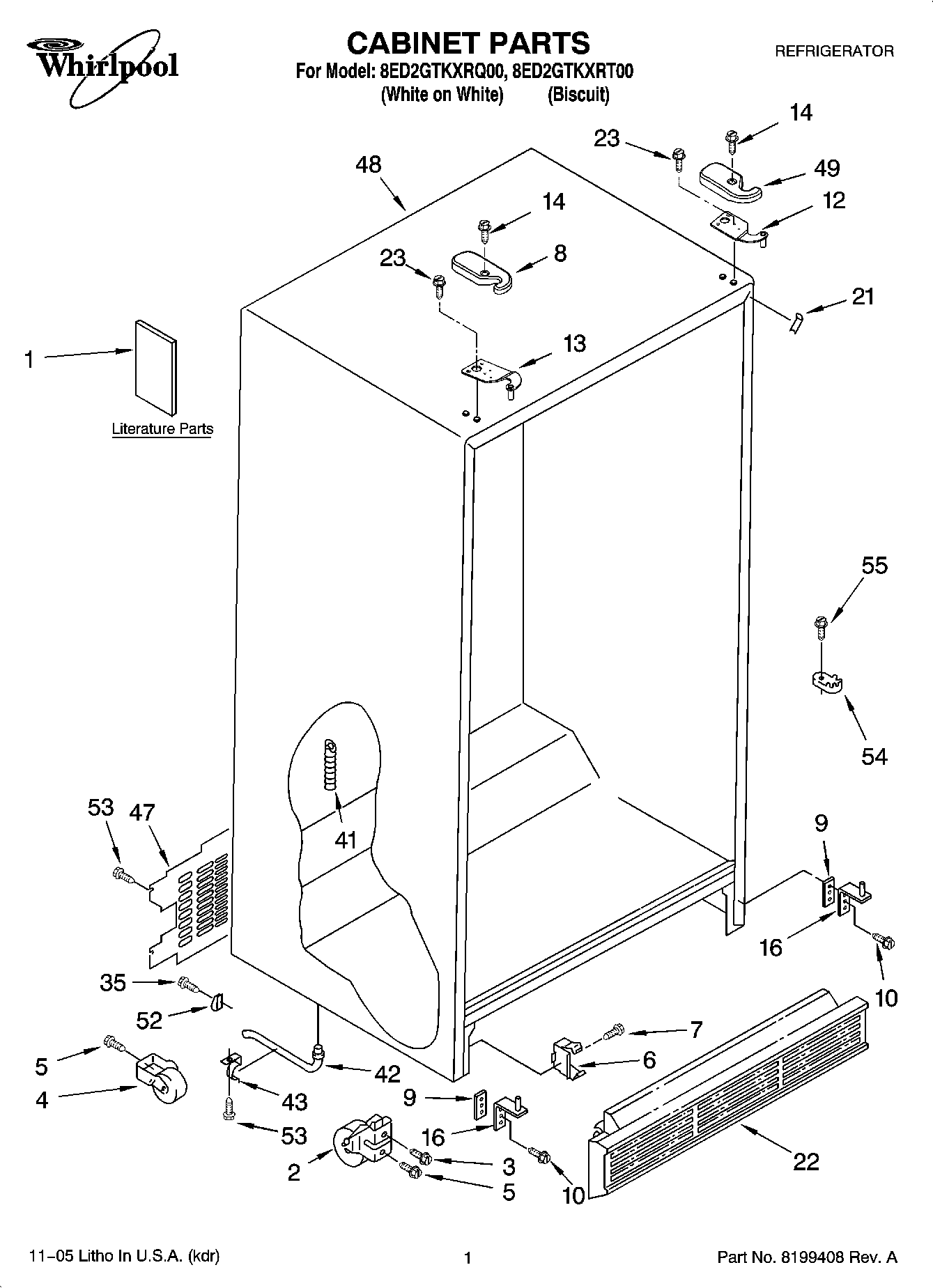

8ED2GTKXRT00 01 – CABINET PARTS
Written by
in
8ED2GTKXRT00 01 – CABINET PARTS
Products
Position
Product
1
Service & Wiring Sheet
1
Use and Care Guide (English)
1
Chinese
2
Front Roller (2)
3
W10850698 Whirlpool Refrigerator Screw
4
WPW10250570 Whirlpool Refrigerator Cabinet Roller
5
WP489427 Whirlpool Refrigerator Screw
6
WP2155013 Whirlpool Refrigerator Clip
7
WP489128 Whirlpool Refrigerator Screw
8
WP2203407W Whirlpool Refrigerator Cover
8
2203407T Whirlpool Refrigerator Cover
9
WP2209697 Whirlpool Refrigerator Shim
10
WP489497 Whirlpool Screw
12
WP2203771 Whirlpool Refrigerator Door Hinge
13
WP2203770 Whirlpool Refrigerator Door Hinge
14
WP8281227 Whirlpool Screw
16
8201707 Whirlpool Door Hinge
21
Filler, Wrapper (White)
22
W10804014 Whirlpool Refrigerator Grille
22
Grille (Biscuit)
35
W11693756 Whirlpool Screw Assembly
41
W11566763 Whirlpool Fitting
42
WP1108438 Whirlpool Refrigerator Extension
43
WP1108439 Whirlpool Refrigerator Clip
47
Cover, Unit
48
Cabinet (Not A Serviceable Part)
49
Hinge Cover (Biscuit)
49
WP2203408W Whirlpool Refrigerator Cover
52
489348 Whirlpool Refrigerator Tube Clamp
54
WPW10329686 Whirlpool Door Cam Black
55
WP489483 Whirlpool Screw
←
