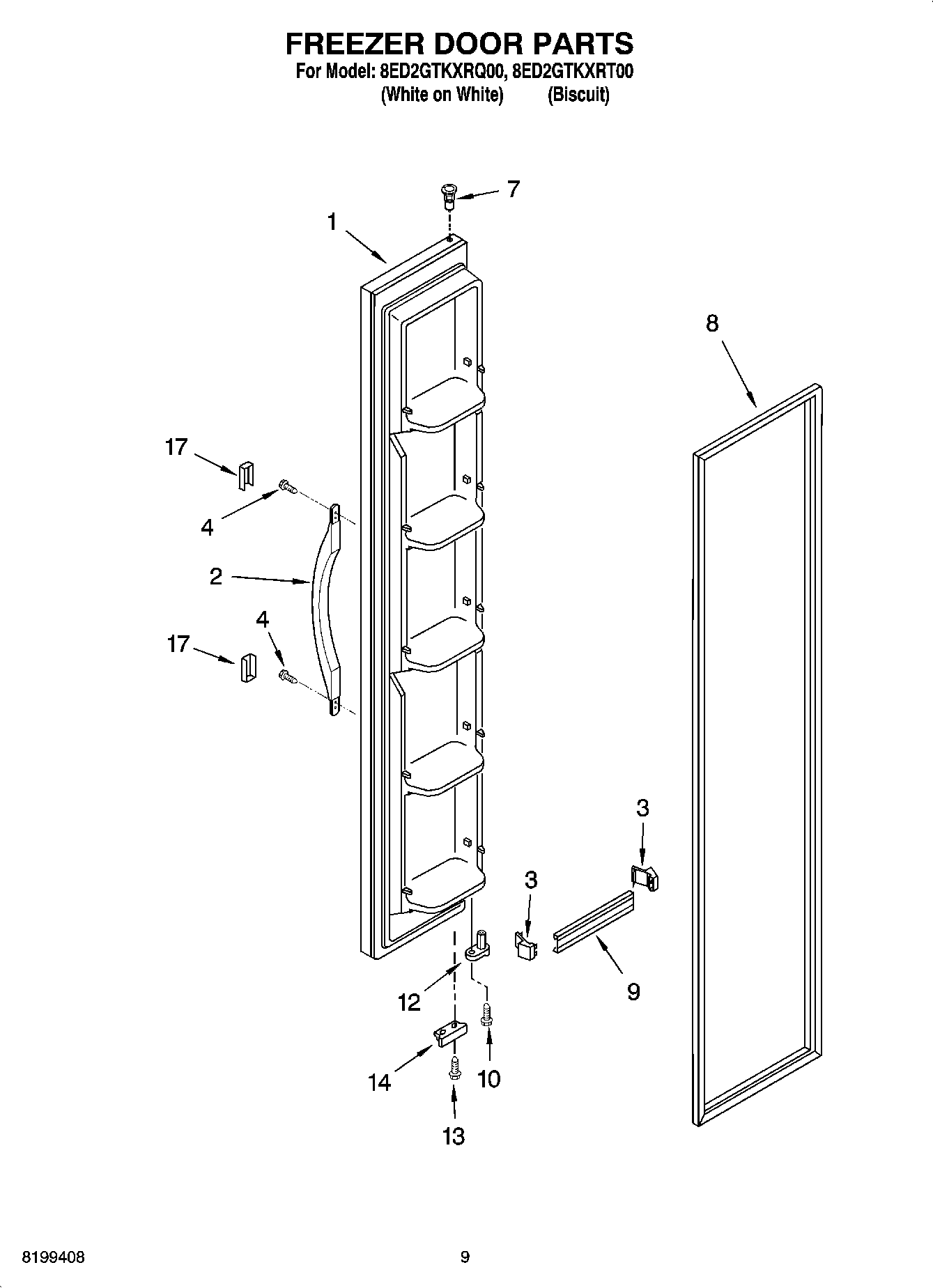

8ED2GTKXRT00 07 – FREEZER DOOR PARTS

8ED2GTKXRT00 07 – FREEZER DOOR PARTS

Written by

in

8ED2GTKXRT00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer, Door (Biscuit)
1Freezer, Door (White)
2Handle, Center (Biscuit)
2Handle, Center (White)
3WP2195917K Whirlpool Refrigerator Endcap
4WP489491 Whirlpool Refrigerator Screw
7WP2182181 Whirlpool Refrigerator Thimble
82159072 Whirlpool Refrigerator FIP Gasket
9Trim, Door (3)
10WP3400012 Whirlpool Refrigerator Screw
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
17Cover, Trim (Biscuit)
17WP2193353W Whirlpool Refrigerator Trim Handle
