8ED5FHKXVY00 09 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
Torx Key
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
WPL 799833
WPW10190943 Whirlpool Refrigerator Icemaker
CLEANER, (STAINLESS STEEL)
FIELD INSTALLABLE ICE MAKER
WP542638 Whirlpool Refrigerator Grease
Miscellaneous
WP503695 Whirlpool Refrigerator Sealer
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
TORX SCREW WRENCH
ACCESSORIES
WP505587 Whirlpool Refrigerator Sealer
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
833938 Whirlpool Refrigerator Terminal

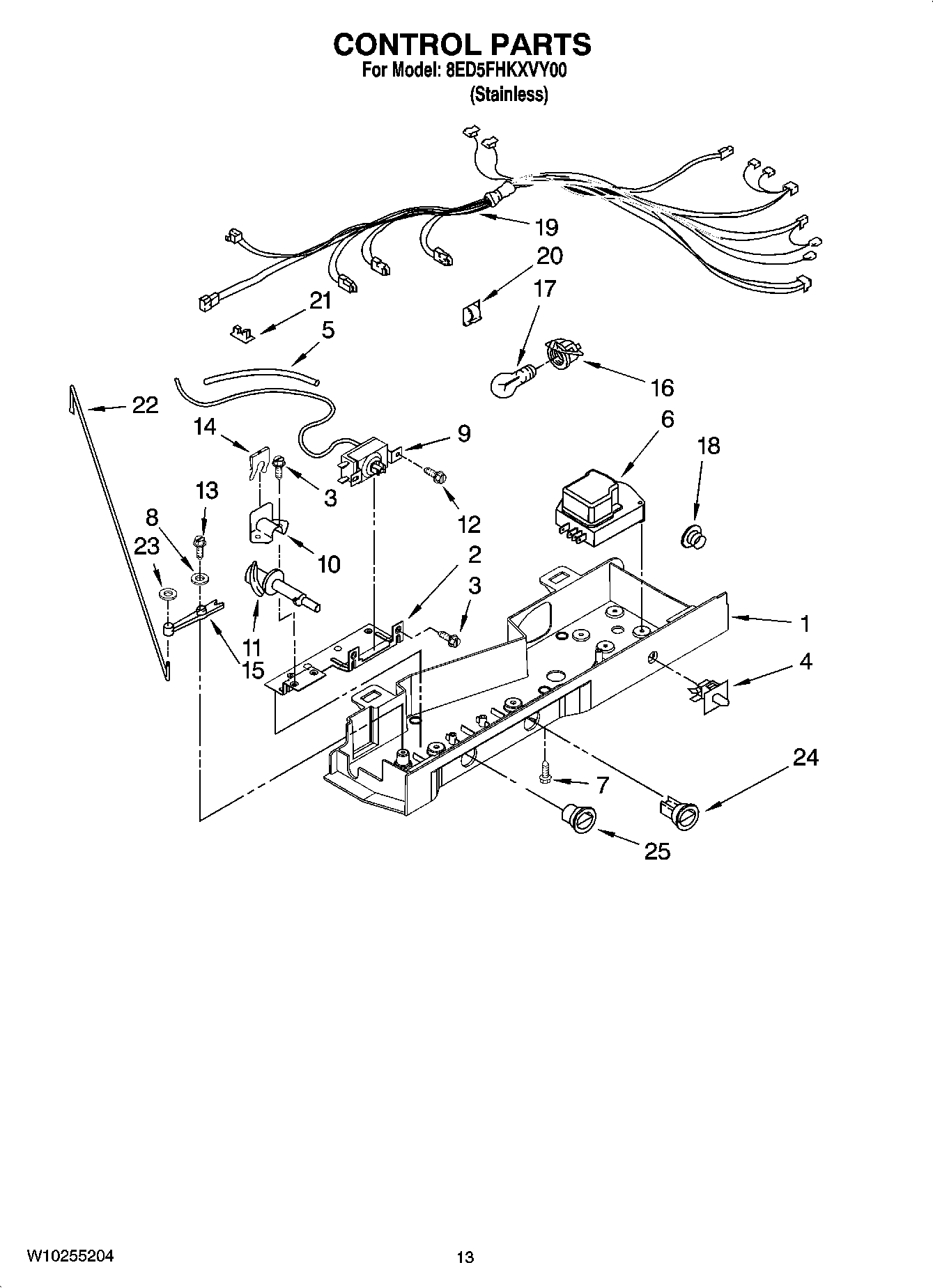

1Control Box
22311611 Whirlpool Refrigerator Bracket
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2196003 Whirlpool Refrigerator Bar Riser
6W10822278 Whirlpool Defrost Timer
7489392 Whirlpool Refrigerator Screw
8489203 Whirlpool Refrigerator Washer
9WP2198202 Whirlpool Refrigerator Temperature Thermostat
101110560 Whirlpool Refrigerator Bearing
11WP2182195 Whirlpool Refrigerator Cam
12WP965173 Whirlpool Dishwasher Screw
13627068 Whirlpool Refrigerator Screw
14WP2196062 Whirlpool Refrigerator Clip
15Pivot Arm
164387478 Whirlpool Refrigerator Light Socket
17RANGE ONLY 40W 120V APPL BULB
18940014 Whirlpool Refrigerator Primary Button Plug
192311636 Whirlpool Refrigerator Wire Harness
20WP1115374 Whirlpool Refrigerator Clip
21CLIP, WIRING
222311631 Whirlpool Refrigerator Rod
23Fastener, Push-On
24W10723843 Whirlpool Refrigerator Thermostat Knob
252311615 Whirlpool Refrigerator Knob
