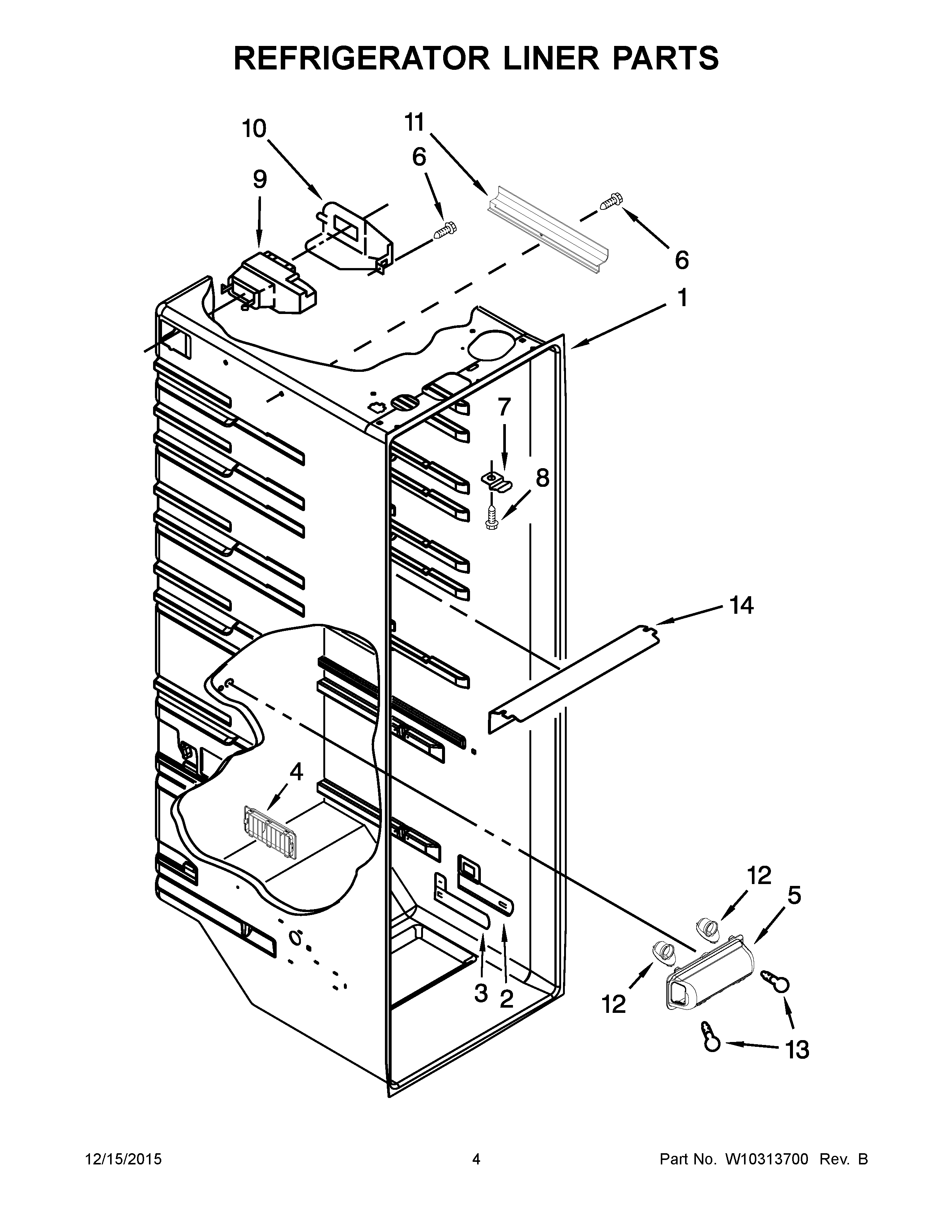

8ED5FHKXVY02 03 – REFRIGERATOR LINER PARTS

8ED5FHKXVY02 03 – REFRIGERATOR LINER PARTS

Written by

in

8ED5FHKXVY02 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
6W10759522 Whirlpool Screw
72311612 Whirlpool Refrigerator Clip
8WP488488 Whirlpool Refrigerator Screw
9WPW10151374 Whirlpool Refrigerator Diffuser
102152019 Whirlpool Refrigerator Cover
11W10252495 Whirlpool Refrigerator Wire Cover
124387478 Whirlpool Refrigerator Light Socket
13RANGE ONLY 40W 120V APPL BULB
142198479 Whirlpool Refrigerator Light Lens
