8ED5FHKXVY02 06 – REFRIGERATOR DOOR PARTS

8ED5FHKXVY02 06 – REFRIGERATOR DOOR PARTS

Written by

in

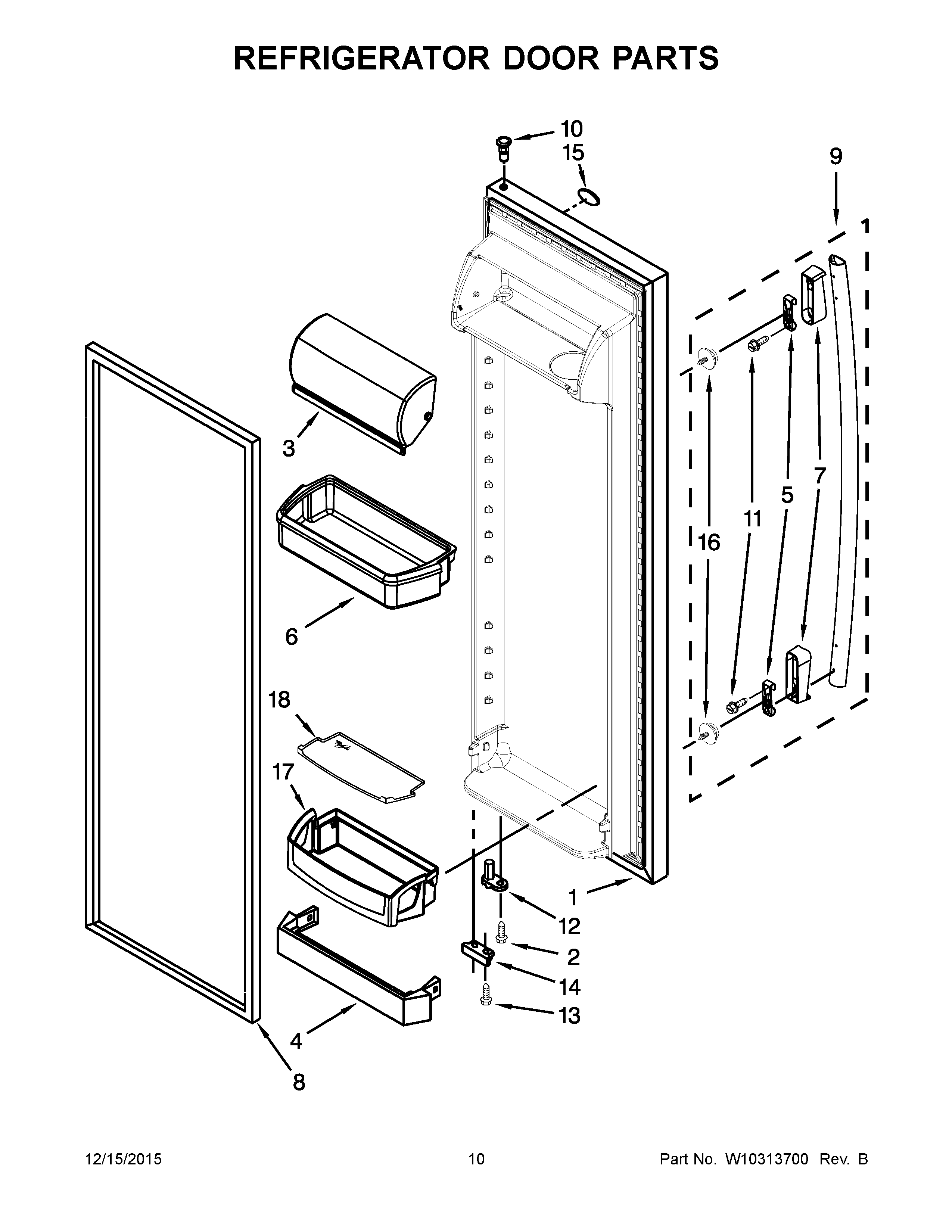

8ED5FHKXVY02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (Stainless)
2WP3400012 Whirlpool Refrigerator Screw
3WP2256101 Whirlpool Dairy Door
4WP2309941 Whirlpool Refrigerator Door Bar Trim
5WP2255411 Whirlpool Refrigerator Clip
6Shelf Bin (3)
7End Cap (Apollo Grey)
8WPW10136734 Whirlpool Refrigerator Door Gasket
9WPW10257118K Whirlpool Refrigerator Handle
10WP2182181 Whirlpool Refrigerator Thimble
11W10267047 Whirlpool Screw
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14BRACKET, DOOR STOP (SILVER)
15Nameplate
16WPW10288153 Whirlpool Refrigerator Screw
17Door Bin
18Mat, Bin (2)
