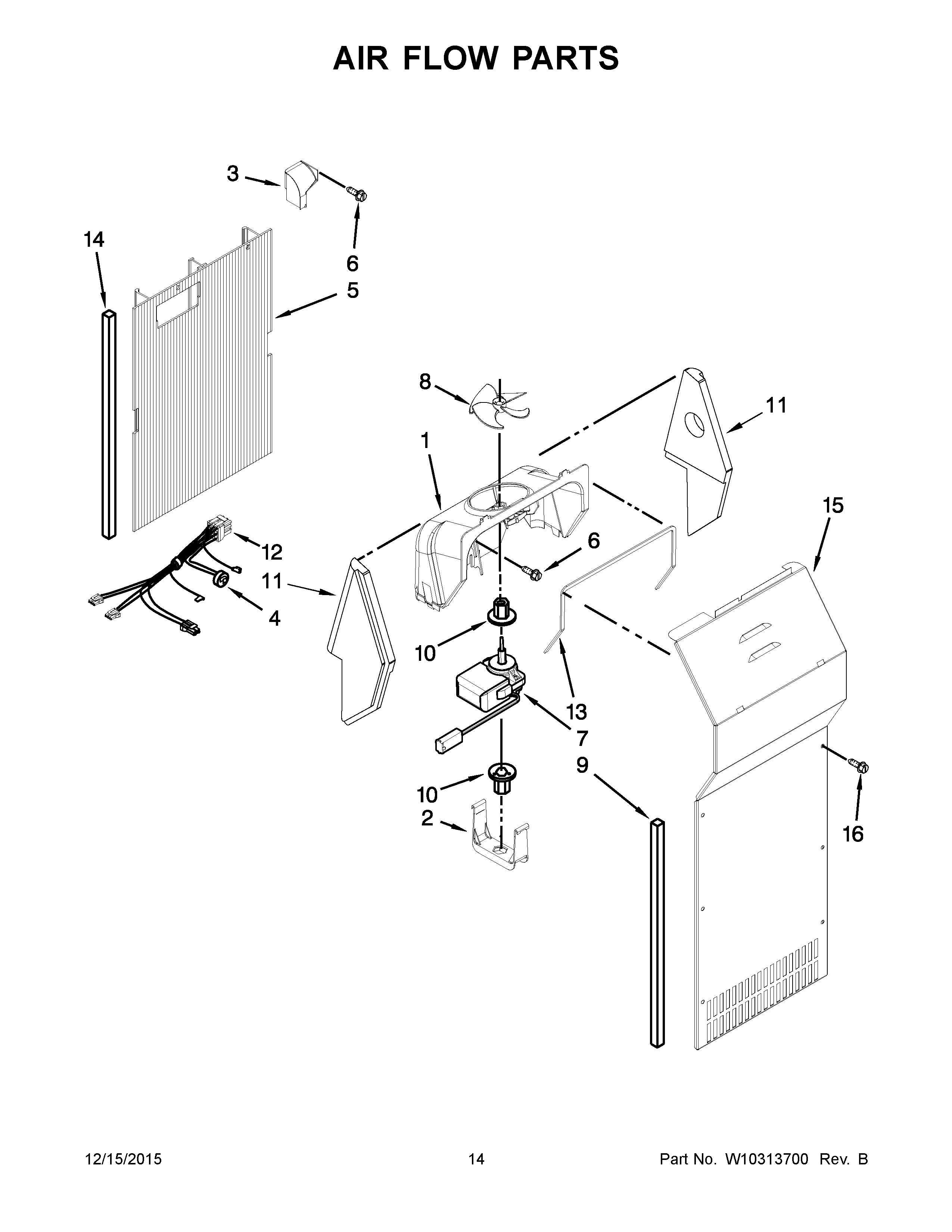

8ED5FHKXVY02 08 – AIR FLOW PARTS

8ED5FHKXVY02 08 – AIR FLOW PARTS

Written by

in

8ED5FHKXVY02 08 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3W10803597 Whirlpool Refrigerator Air Scoop
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5Air Duct Freezer
6WP489478 Whirlpool Refrigerator Screw
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
10WP2176759 Whirlpool Refrigerator Grommet
11A4388358 Whirlpool Refrigerator Support Bracket
12W11084324 Whirlpool Refrigerator Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
14WP2304241 Whirlpool Refrigerator Gasket
15Cover, Evaporator
164389654 Whirlpool Screw
