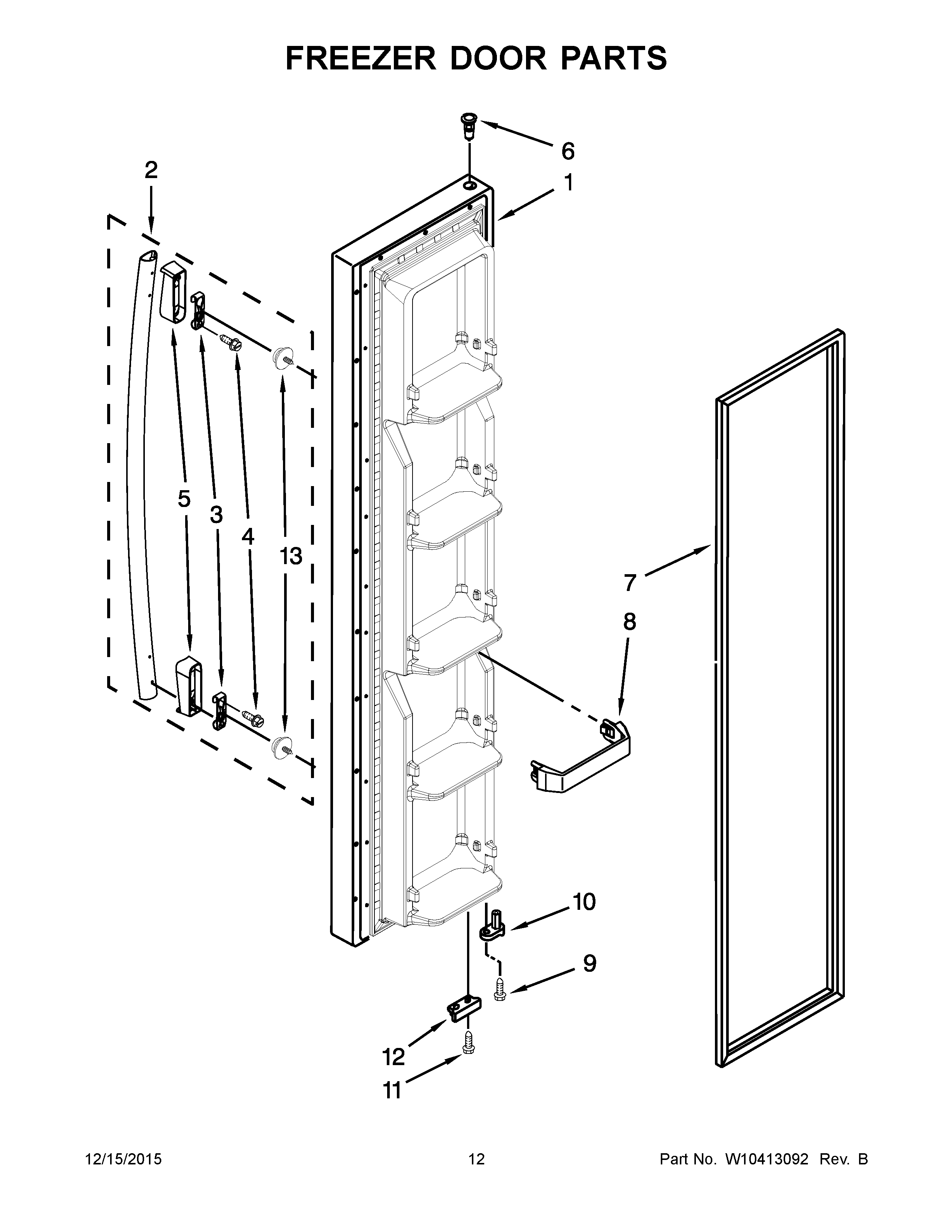

8ED5FHKXVY03 07 – FREEZER DOOR PARTS

8ED5FHKXVY03 07 – FREEZER DOOR PARTS

Written by

in

8ED5FHKXVY03 07 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER (INCLUDES ITEM #7) (STAINLESS)
2WPW10257118K Whirlpool Refrigerator Handle
3WP2255411 Whirlpool Refrigerator Clip
4W10267047 Whirlpool Screw
5End Cap (Apollo Grey)
6WP2182181 Whirlpool Refrigerator Thimble
7W10136735 Whirlpool Refrigerator Door Gasket
8WP2171157 Whirlpool Shelf Trim
9WP3400012 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12W10185566 Whirlpool Bracket
13WPW10288153 Whirlpool Refrigerator Screw
