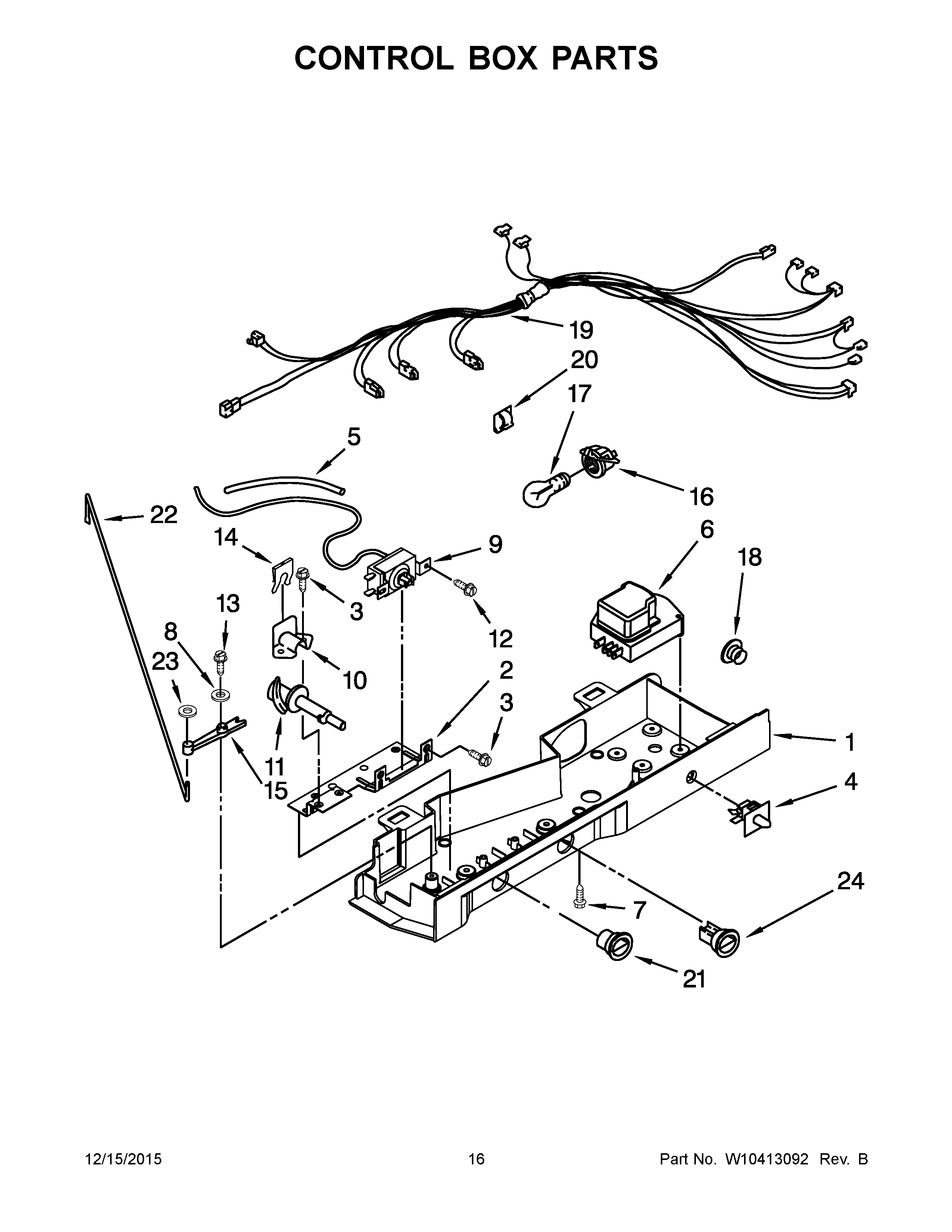

8ED5FHKXVY03 09 – CONTROL BOX PARTS

Products

Position	Product
1	Control Box
2	2311611 Whirlpool Refrigerator Bracket
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	W10822278 Whirlpool Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	489203 Whirlpool Refrigerator Washer
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	1110560 Whirlpool Refrigerator Bearing
11	WP2182195 Whirlpool Refrigerator Cam
12	WP965173 Whirlpool Dishwasher Screw
13	627068 Whirlpool Refrigerator Screw
14	WP2196062 Whirlpool Refrigerator Clip
15	Pivot Arm
16	4387478 Whirlpool Refrigerator Light Socket
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	940014 Whirlpool Refrigerator Primary Button Plug
19	2311636 Whirlpool Refrigerator Wire Harness
20	WP1115374 Whirlpool Refrigerator Clip
21	2311615 Whirlpool Refrigerator Knob
22	2311631 Whirlpool Refrigerator Rod
23	Fastener, Push-On
24	W10723843 Whirlpool Refrigerator Thermostat Knob
