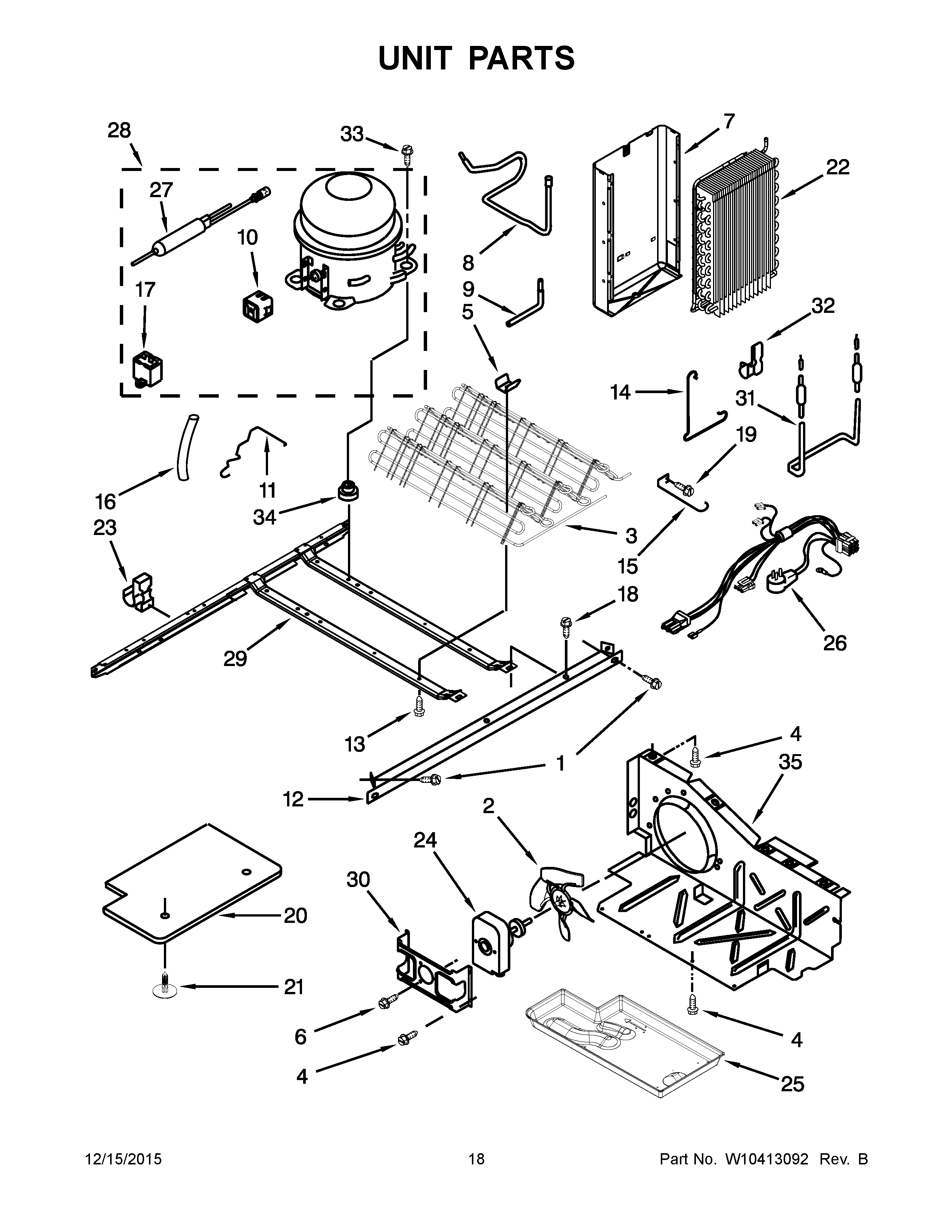

8ED5FHKXVY03 10 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	489340 Whirlpool Refrigerator Screw
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	W10194475 Whirlpool Refrigerator Shield
8	WP2205765 Whirlpool Refrigerator Tube
9	W10858105 Whirlpool Refrigerator Tube
10	WP2304885 Whirlpool Refrigerator Start Device
11	2223314 Whirlpool Refrigerator Clip
12	W10196313 Whirlpool Refrigerator Rail Unit
13	W11544659 Whirlpool Refrigerator Screw
15	Guard, Fan
16	SLEEVE
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	WP489427 Whirlpool Refrigerator Screw
19	WP489478 Whirlpool Refrigerator Screw
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clip, Wire & Tube
24	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Harness, Unit
27	WPW10143759 Whirlpool Dryer Filter
28	W10139460 Whirlpool Refrigerator Compressor
29	W10196321 Whirlpool Refrigerator Frame
30	WP2181929 Whirlpool Refrigerator Bracket
31	WP2323198 Whirlpool Refrigerator Heater
32	Clamp
34	876811 Whirlpool Grommet
35	BAFFLE, AIR
