8ET18ZKXBN00 06 – UNIT

8ET18ZKXBN00 06 – UNIT

Written by

in

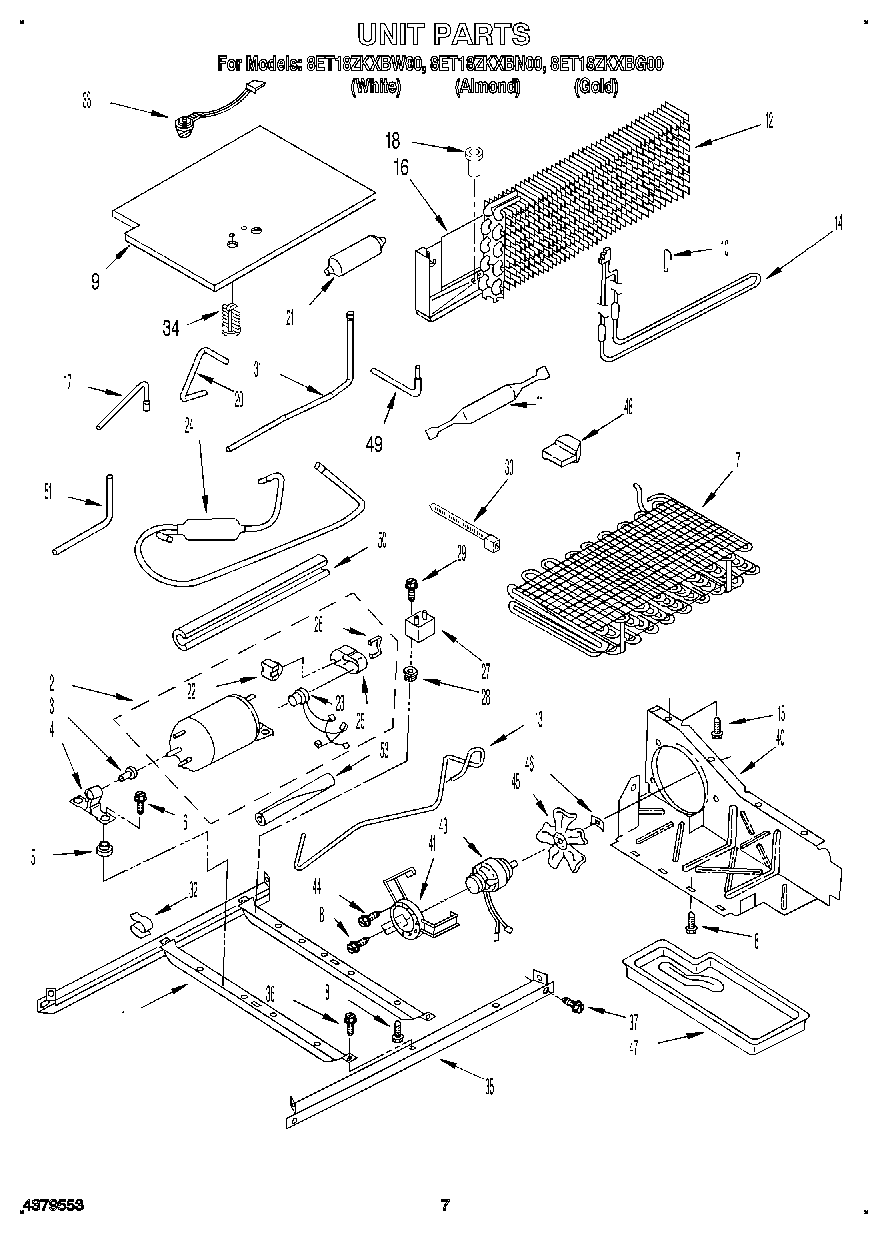

8ET18ZKXBN00 06 – UNIT

Products

PositionProduct
1Unit, Frame
2Compressor KIt Includes Items 22 (23, 25, 26 & 27)
3Grommet, Compressor Bracket
4Bracket, Mounting
5Grommet, Compressor (4)
6Screw (4)
7Condenser Assembly
8WP489464 Whirlpool Refrigerator Screw
9Cover, Unit Bottom
10Support, Heater
11W10843121 Whirlpool Refrigerator Tube
12Evaporator
13Tube, Discharge
14Heater, Defrost
15WP489478 Whirlpool Refrigerator Screw
16Drain Pan & Heat Shield
17Tube, Process
18Drain Fitting
20Tube, Muffler & Reservoir
21Reservoir
22Start Relay
23Overload (Service (Includes Relay))
23Overload (Production (Includes Relay))
24Muffler
25Terminal Cover (Service)
26Strap, Cover
27WPW10662129 Whirlpool Refrigerator Run Capacitor
28Screw Grommet
29W11693756 Whirlpool Screw Assembly
30WPW10339879 Whirlpool Wire Tie
31Tube, Reservoir & Heat Exchanger
32Clip, Wire (2)
33WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
34489396 Whirlpool Refrigerator Clip
35Unit, Rail
36WP489427 Whirlpool Refrigerator Screw
37489340 Whirlpool Refrigerator Screw
40Air, Baffle
41Fan, Mounting Bracket
43833697 Whirlpool Condenser Fan Motor
44681390 Whirlpool Refrigerator Screw
45Fan Blade
46WP486692 Whirlpool Refrigerator Nut
47Tray, Evaporator
48Wedge, Air Baffle
49Tube, Process
50WP2002171 Whirlpool Refrigerator Sleeve
51Tube, Condenser To Heat Loop
53VALVE, ACCESS (5/8“)
53876764 Whirlpool Refrigerator Primary Valve
53978027 Whirlpool Refrigerator Primary Valve
53978030 Whirlpool Refrigerator Valve
53WP978025 Whirlpool Refrigerator Valve
53VALVE, ACCESS (1/2“)
53978026 Whirlpool Refrigerator Primary Valve
53Sleeve
