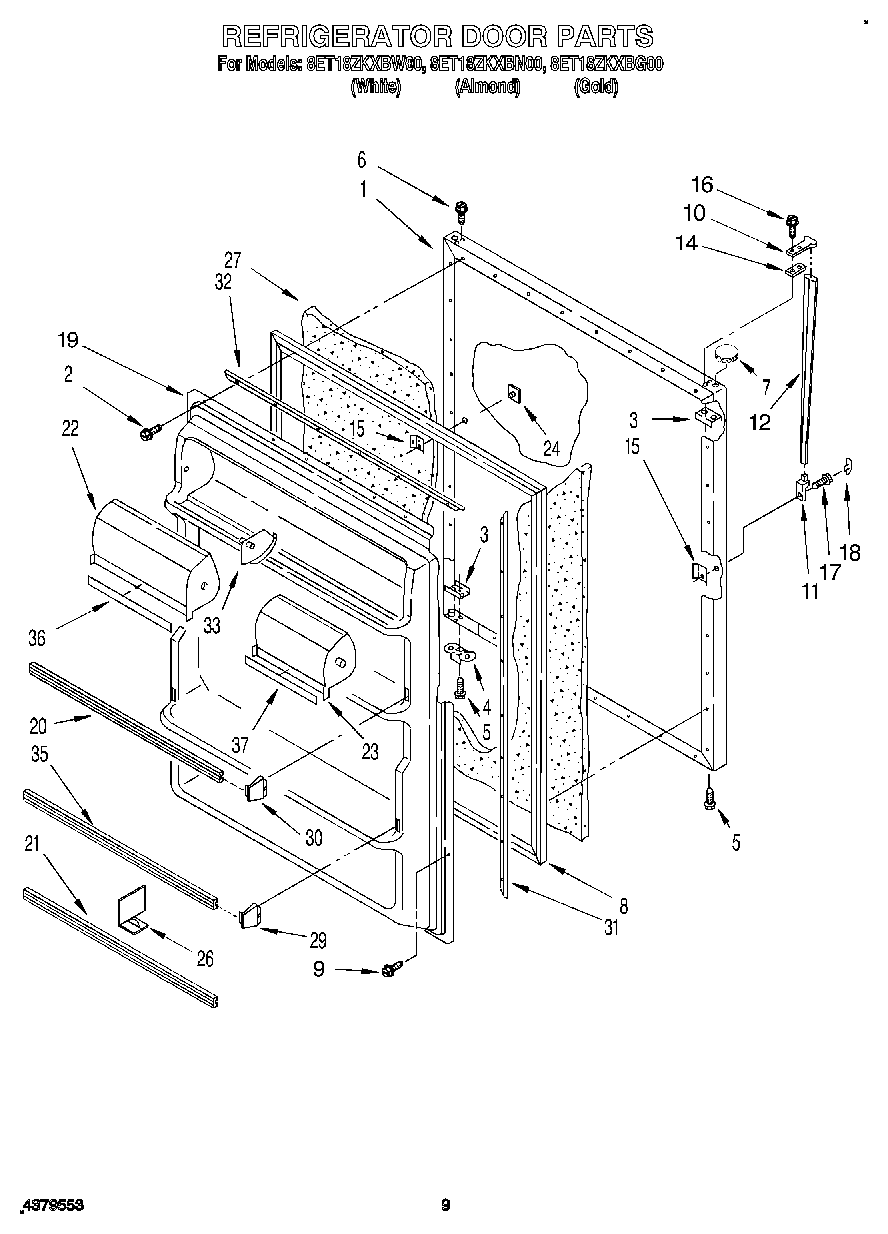

8ET18ZKXBN00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

8ET18ZKXBN00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

8ET18ZKXBN00 07 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2170407
	W11729596 Whirlpool Ice Maker Field Install Kit
	Torx Key
	WPL LIT2158683
1	Panel, Refrigerator Door (Also Order Item 27) (Almond)
1	Panel, Refrigerator Door (Also Order Item 27) (White)
1	Panel, Refrigerator Door (Also Order Item 27) (Golden Harvest)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
7	Hole Plug (2) (Golden Harvest)
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	WP2191883 Whirlpool Refrigerator Handle Endcap
11	WP2183139 Whirlpool Refrigerator Handle End Cap
12	Handle, Center (Almond)
12	Handle, Center
12	WP2162555 Whirlpool Refrigerator White Door Handle
14	Spa
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP1101634 Whirlpool Refrigerator Cover
19	Interior Door Panel
20	Trim, Door Shelf
21	Trim, Door Shelf
22	Compartment Door (L.S.)
23	Compartment, Door (R.S.)
24	Hole Plug, Handle (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (White)
26	Divider-Door
29	4318297 Whirlpool Refrigerator Shelf Bar Endcap Kit, 2 Pack
30	4386917 Whirlpool Endcap Kit
31	Retainer, Gasket Side (2)
32	WPL 1115137
33	WP1118001 Whirlpool Hinge Pin
35	Trim, Door Shelf
36	Trim, Door Compartment (L.S.)
37	Door Reversal Instructions
37	350956 Whirlpool Spray Assembly
37	72017 Whirlpool Appliance Touch-Up Paint White
37	Trim, Compartment Door
37	799344 Whirlpool Refrigerator Paint
37	350930 Whirlpool White Spray Paint
37	WP505587 Whirlpool Refrigerator Sealer
37	WP72107 Whirlpool Touchup
37	212643 Whirlpool Refrigerator Permagum Sealer
37	TAPE, VINYL (3/4 X 108“)
37	CEMENT, ALUMILASTIC (1 1/4 OZ.)
37	WPL 799833
37	WPL 876029
37	WP503695 Whirlpool Refrigerator Sealer
37	876370 Whirlpool Refrigerator Insulation
37	833938 Whirlpool Refrigerator Terminal
37	285006 Whirlpool Spray
37	606755 Whirlpool Refrigerator Bag
37	511873 Whirlpool Refrigerator Paint
37	350942 Whirlpool Spray Paint
37	Golden Harvest (Uncut)
37	72032 Whirlpool Touch Up Paint Black
37	Golden Harvest
37	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
37	Almond (Uncut)
37	WP542638 Whirlpool Refrigerator Grease
