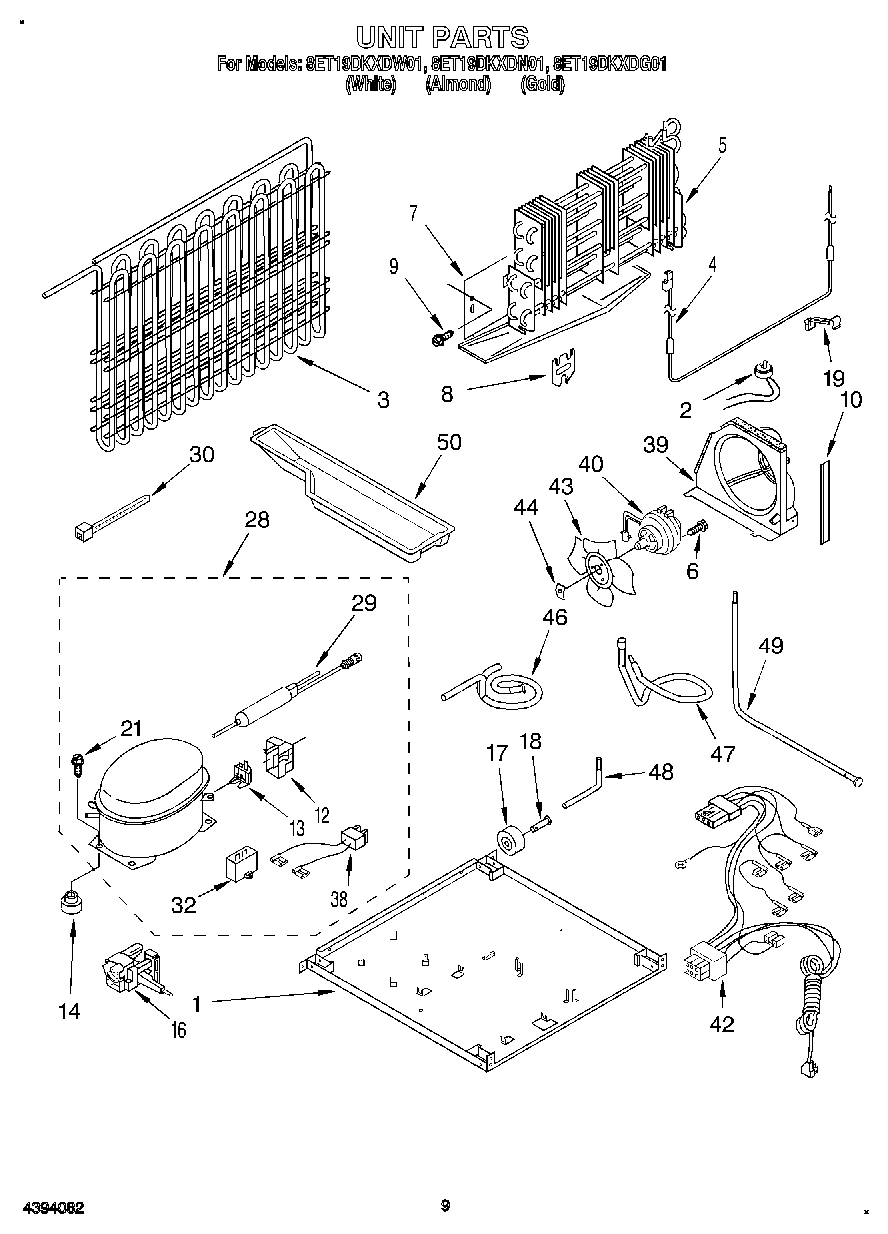

8ET19DKXDG01 05 – UNIT

Products

Position	Product
1	Plate, Unit Mounting
2	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
3	Condenser
4	WP2315531 Whirlpool Refrigerator Heater
5	Evaporator Assy.
6	Screw
7	Drain Pan
8	Bracket, Heater
9	WP489478 Whirlpool Refrigerator Screw
10	Extension, Air Baffle
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	4387913 Whirlpool Refrigerator Primary Overload Relay
13	Overload (Production (Includes Relay))
14	W11661108 Whirlpool Grommet
14	876811 Whirlpool Grommet
16	Module
17	Roller (2)
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	SCREW
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Installation Kit
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
32	Capacitor
38	WP2172890 Whirlpool Refrigerator Wire
39	Air Baffle
40	W10822259 Whirlpool Refrigerator Condenser Fan Motor
42	Wire Assy., Unit
43	Fan, Blade
44	WP486692 Whirlpool Refrigerator Nut
46	Tube, Discharge
47	Tube, Suction
48	2154109 Whirlpool Refrigerator Tube
49	Tube, Condenser To Heat Loop
50	978030 Whirlpool Refrigerator Valve
50	WP978025 Whirlpool Refrigerator Valve
50	978026 Whirlpool Refrigerator Primary Valve
50	876764 Whirlpool Refrigerator Primary Valve
50	VALVE, ACCESS (1/2“)
50	Start Kit
50	VALVE, ACCESS (5/8“)
50	Evap. Tray
50	978027 Whirlpool Refrigerator Primary Valve
