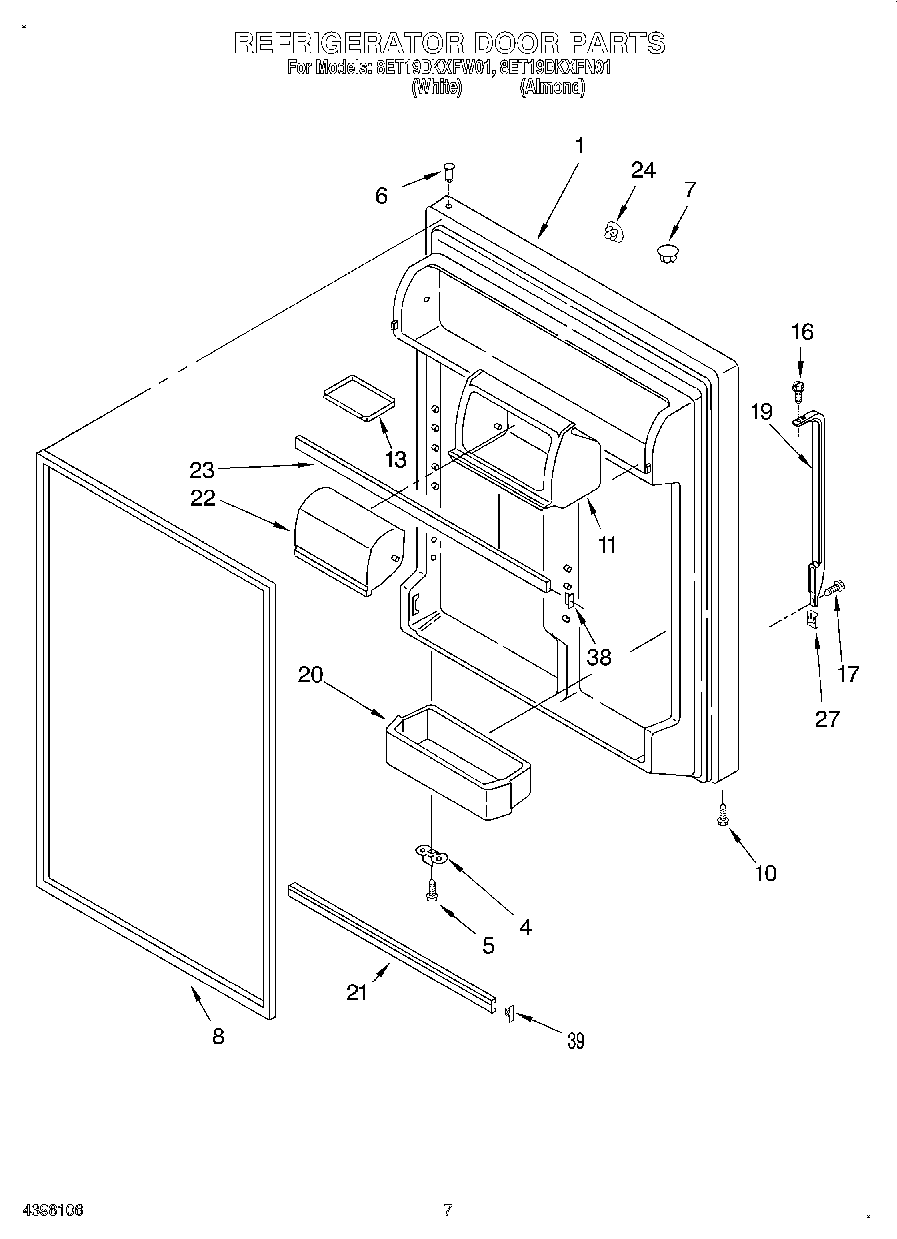

8ET19DKXFN01 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.6 & No.8) (Almond)
1	Refrigerator Door (Includes Illus. 2,3,6 & 8)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
10	WP8281206 Whirlpool Refrigerator Screw
11	Housing Compartment
13	Tray, Door
16	WP489357 Whirlpool Recessed Screw
17	WP488729 Whirlpool Refrigerator Door Screw
19	Handle Center (Almond)
19	4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
20	Bin, Door (3)
21	WPW10421484 Whirlpool Refrigerator Door Trim
22	DOOR-COMP
23	WP2159312 Whirlpool Refrigerator Door Trim
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug (Almond)
27	WP2193353W Whirlpool Refrigerator Trim Handle
27	Endcap, Handle (2) (Almond)
38	Endcap, Door Trim
39	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
100	Featurepak (Includes 11, 13, 20, 21, 22, 23, 38, 39) Also See Frz.Dr. & Shelf Parts Pgs.
