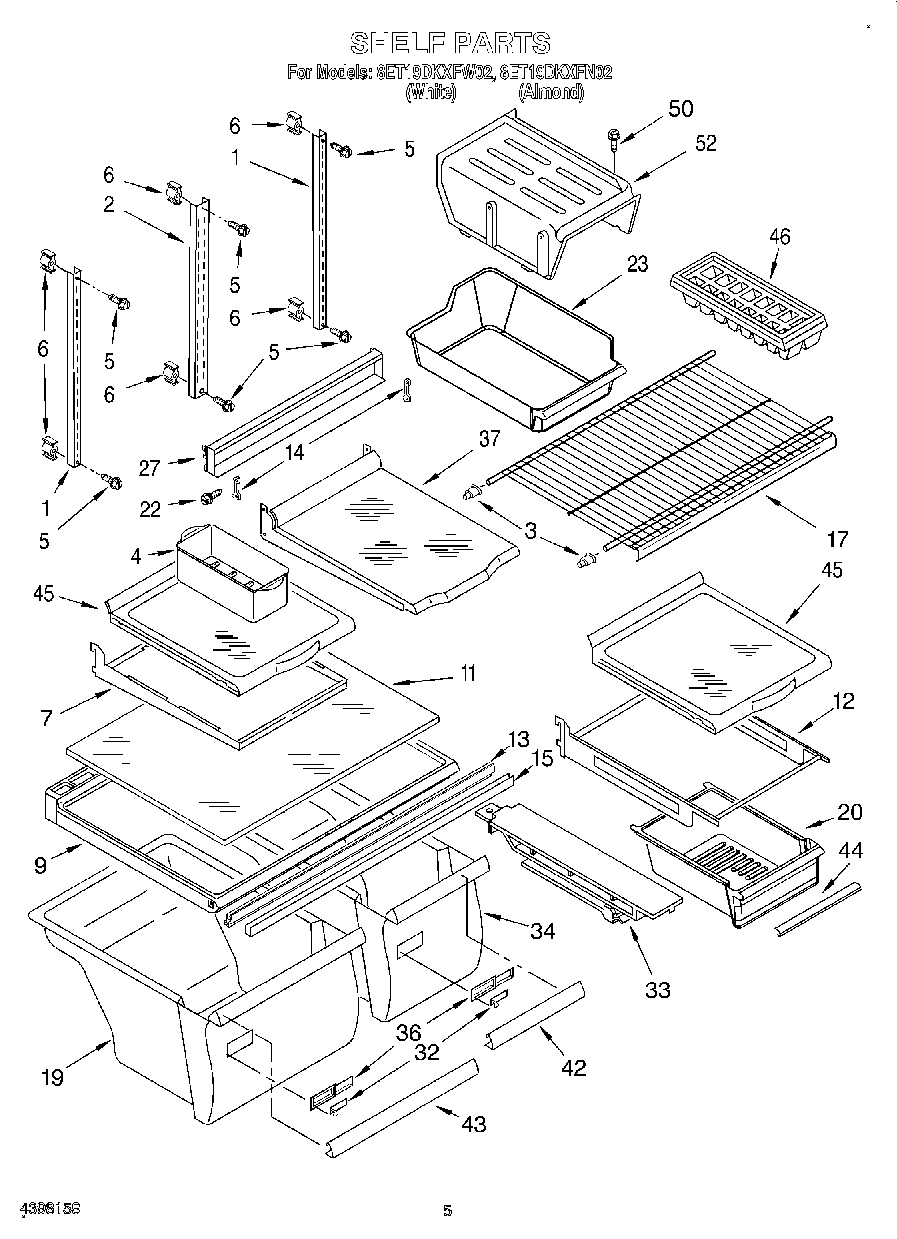

8ET19DKXFN02 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	2163762 Whirlpool Refrigerator Cup Assembly
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
6	520965 Whirlpool Refrigerator Support
7	Frame Assembly, Shelf (3)
9	WP2314548 Whirlpool Refrigerator Cover
11	WP2169921 Whirlpool Refrigerator Glass Shelf
12	Frame Assembly, Meat Shelf
13	Gasket, Crisper Cover
14	Hook, Shelf
15	WP2172748 Whirlpool Drawer Support
17	WP2176275 Whirlpool Refrigerator Wire Shelf
19	W10854037 Whirlpool Refrigerator Crisper Pan
20	PAN-MEAT
22	Screw
23	2254352A Whirlpool Refrigerator Ice Container
27	Track Assembly, Shelf
32	WP2176222 Whirlpool Refrigerator Slide
33	WP2163835 Whirlpool Track Assembly
34	W10856580 Whirlpool Crisper Pan
36	WP2212446 Whirlpool Refrigerator Control Body
37	Shelf Assembly, Spillguard
42	Trim, Crisper Pan
43	WP2195341 Whirlpool Refrigerator Pan Trim
44	Trim, Meat Pan
45	Shelf Assembly, Spillguard
46	WP841180A Whirlpool Microwave Glass Turntable Tray
50	WP489478 Whirlpool Refrigerator Screw
52	Shelf, Ice Tray
100	Featurepak (Includes 11, 13, 20, 21, 22, 23, 38, 39) Also See Frz.Dr. & Shelf Parts Pgs.
