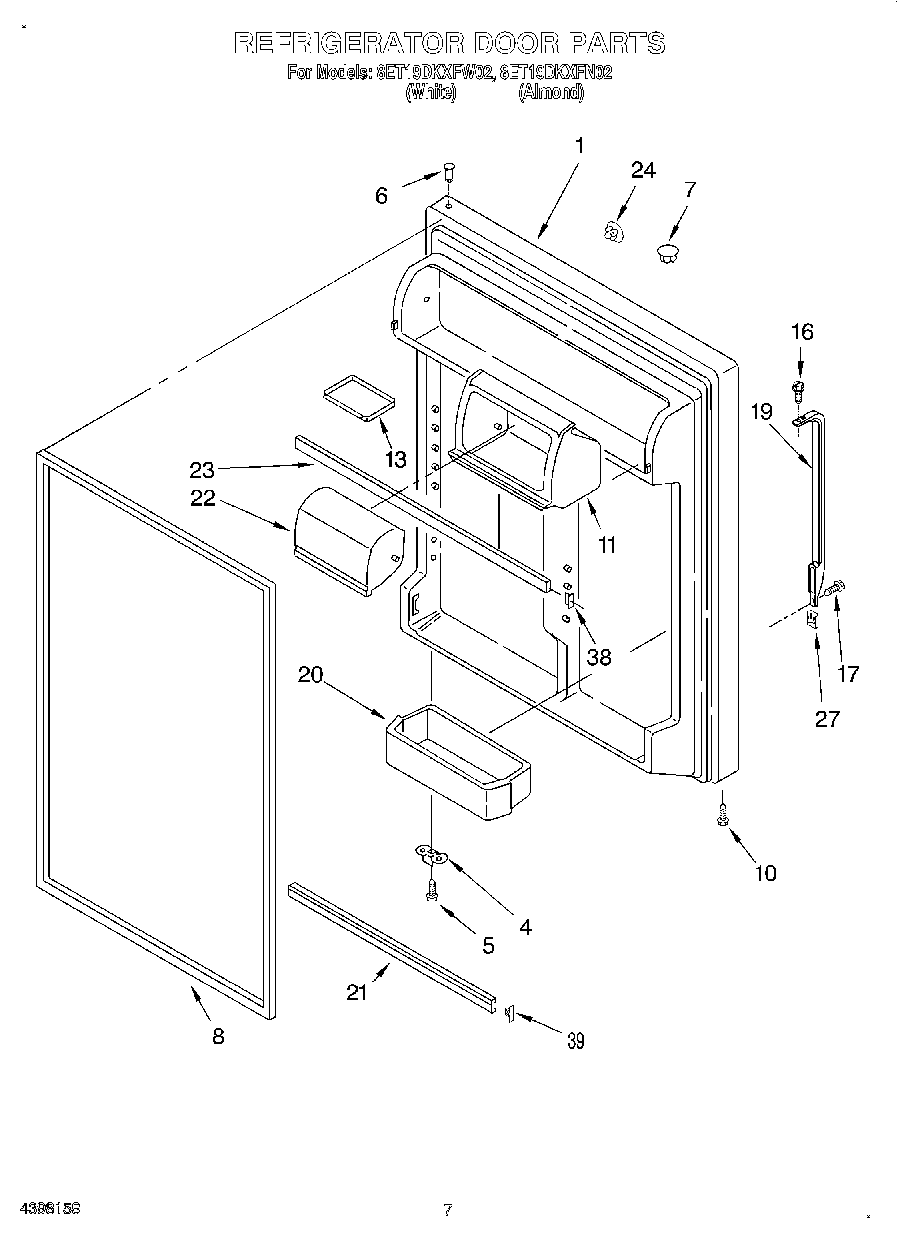

8ET19DKXFN02 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.6 & No.8) (Almond)
1Refrigerator Door (Includes Illus. 2,3,6 & 8)
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP2183003 Whirlpool Thimble
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159057 Whirlpool Refrigerator Fresh Food Door Gasket
10WP8281206 Whirlpool Refrigerator Screw
11Housing Compartment
13Tray, Door
16WP489357 Whirlpool Recessed Screw
17WP488729 Whirlpool Refrigerator Door Screw
19Handle Center (Almond)
194388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White
20Bin, Door (3)
21WPW10421484 Whirlpool Refrigerator Door Trim
22DOOR-COMP
23WP2159312 Whirlpool Refrigerator Door Trim
24WP2189000 Whirlpool Refrigerator Handle Plug
24Hole Plug (Almond)
27WP2193353W Whirlpool Refrigerator Trim Handle
27Endcap, Handle (2) (Almond)
38Endcap, Door Trim
39WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
100Featurepak (Includes 11, 13, 20, 21, 22, 23, 38, 39) Also See Frz.Dr. & Shelf Parts Pgs.
