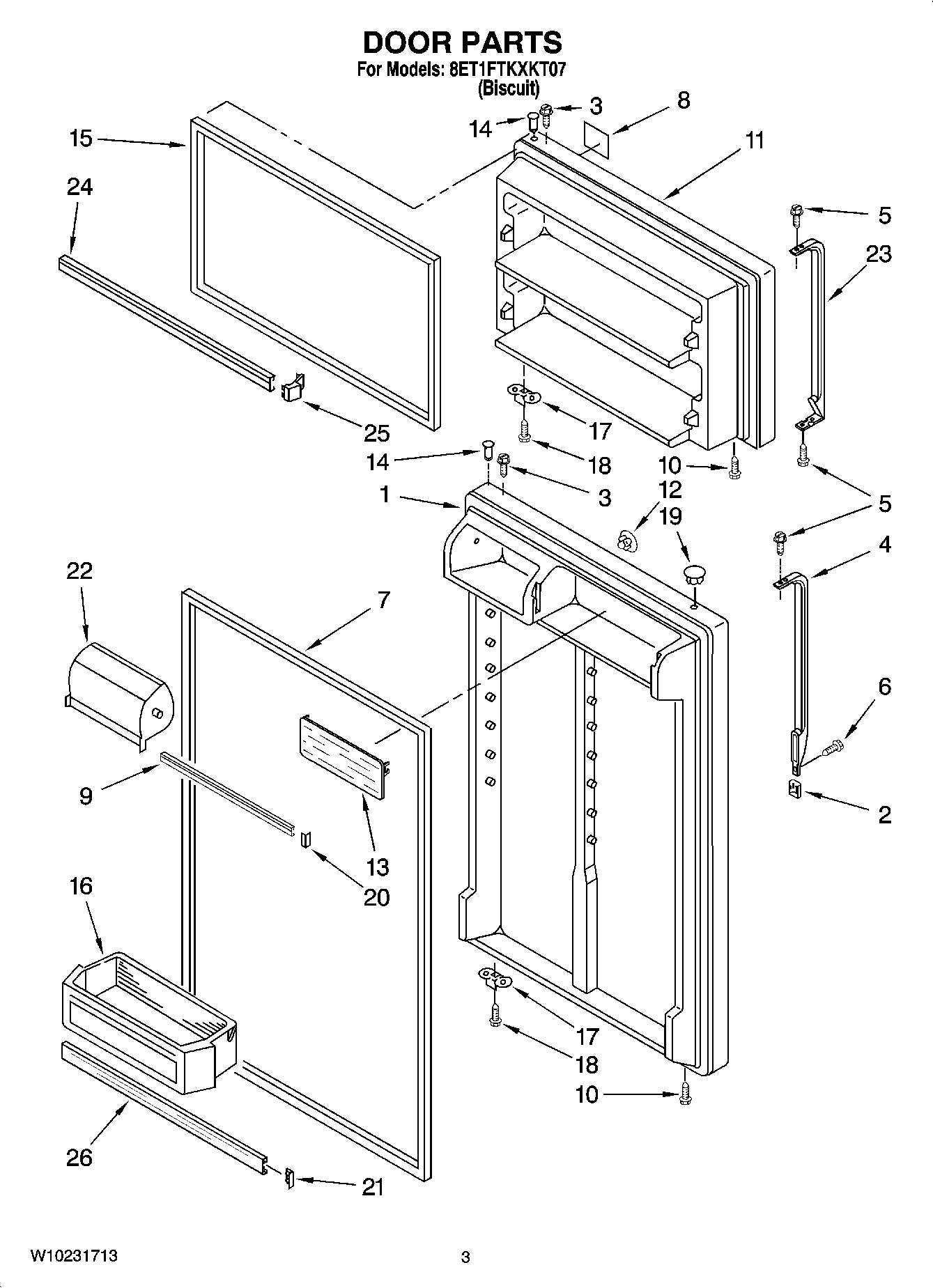

8ET1FTKXKT07 02 – DOOR PARTS

8ET1FTKXKT07 02 – DOOR PARTS

Written by

in

8ET1FTKXKT07 02 – DOOR PARTS

Products

PositionProduct
2Cover, Trim (Biscuit)
3WP8281206 Whirlpool Refrigerator Screw
5WP489357 Whirlpool Recessed Screw
6WP8281146 Whirlpool Screw
72159061 Whirlpool Refrigerator Door Gasket
8Nameplate (Biscuit)
9TRIM-DOOR
10WP489427 Whirlpool Refrigerator Screw
11W11023688 Whirlpool Refrigerator Door Assembly
12WP2200936 Whirlpool Refrigerator Handle Plug
13WP2188236 Whirlpool Refrigerator Shelf Door
14WP2314293 Whirlpool Refrigerator Thimble
15WHITE DOOR GASKET-FIP
16WP2204812 Whirlpool Refrigerator Door Bin
17W11745278 Whirlpool Bracket
18WP488921 Whirlpool Refrigerator Screw
19WP2212649 Whirlpool Refrigerator Button Plug
20ENDCAP-TRM
21WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
22WP2218118 Whirlpool Refrigerator Door Compressor
234388949 Whirlpool Refrigerator Handle
24Trim, Door Shelf (2)
25ENDCAP
26WPW10421486 Whirlpool Refrigerator Door Trim
