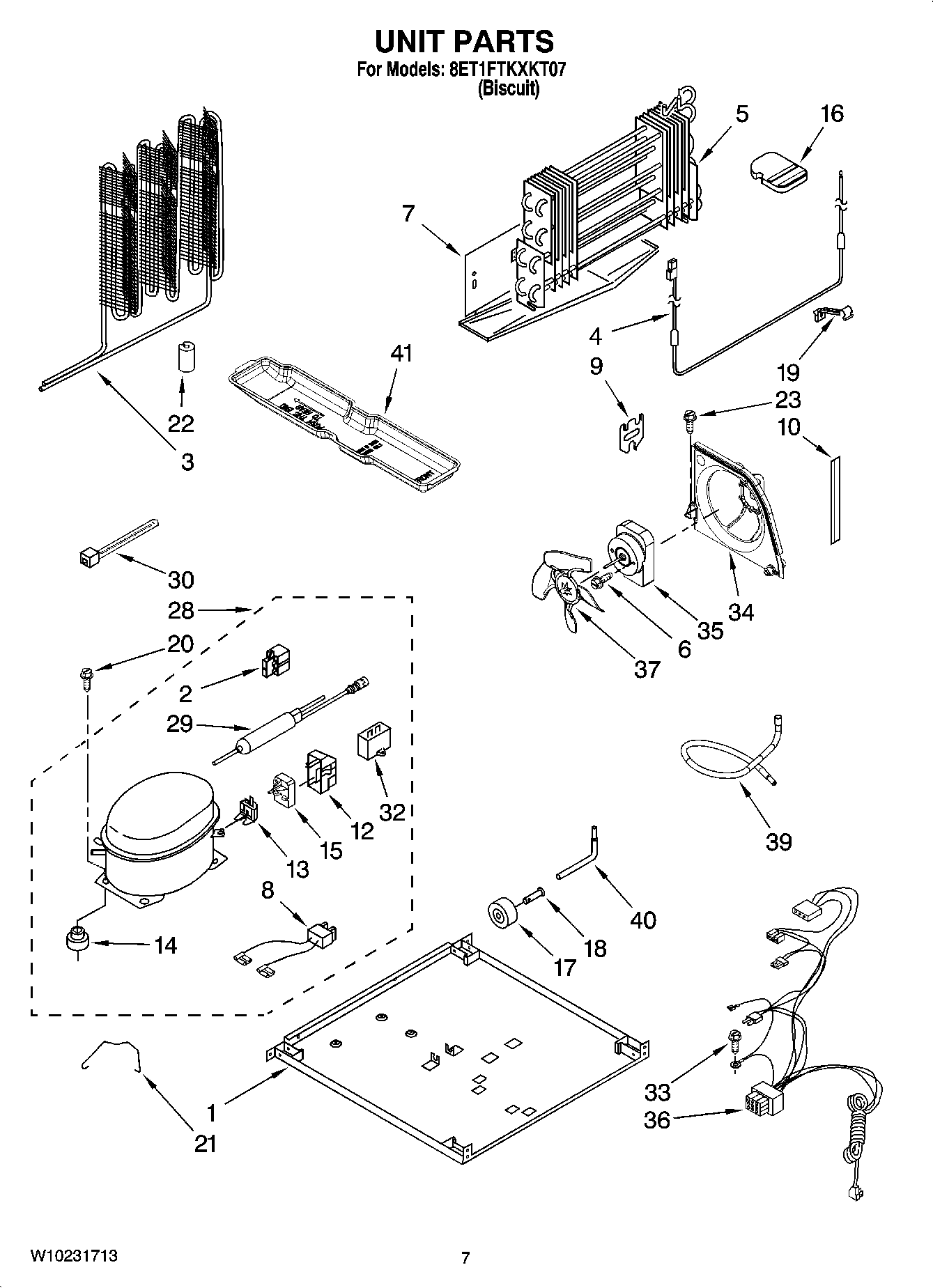

8ET1FTKXKT07 04 – UNIT PARTS

8ET1FTKXKT07 04 – UNIT PARTS

Written by

in

8ET1FTKXKT07 04 – UNIT PARTS

Products

Position	Product
	978027 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	REFRIGERANT CHARGE 4.00 Ozs. (R134A)
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
1	Plate, Unit Mounting
2	W10920279 Whirlpool Refrigerator Start Relay
3	Condenser
4	WPW10140847 Whirlpool Refrigerator Heater
5	EVAPORATOR ASSY.
6	W11501418 Whirlpool Refrigerator Screw
7	Drain Pan
8	WP2172890 Whirlpool Refrigerator Wire
9	Bracket, Heater
10	Extension, Air Baffle
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	876811 Whirlpool Grommet
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
15	WP2225929 Whirlpool Refrigerator Start Device
16	Support Block
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	2212996 Whirlpool Refrigerator Retainer
22	W10852725 Whirlpool Refrigerator Grommet
23	3400518 Whirlpool Oven Foot Mount Screw
28	W10285060 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WP489442 Whirlpool Refrigerator Screw
34	WP2315541 Whirlpool Refrigerator Air Baffle
35	WP2188874 Whirlpool Refrigerator Condenser Motor
36	Wire Assembly Unit
37	W11458267 Whirlpool Refrigerator Fan Blade
39	Tube, Suction
40	2154109 Whirlpool Refrigerator Tube
41	WP2254574 Whirlpool Refrigerator Evaporator Tray
