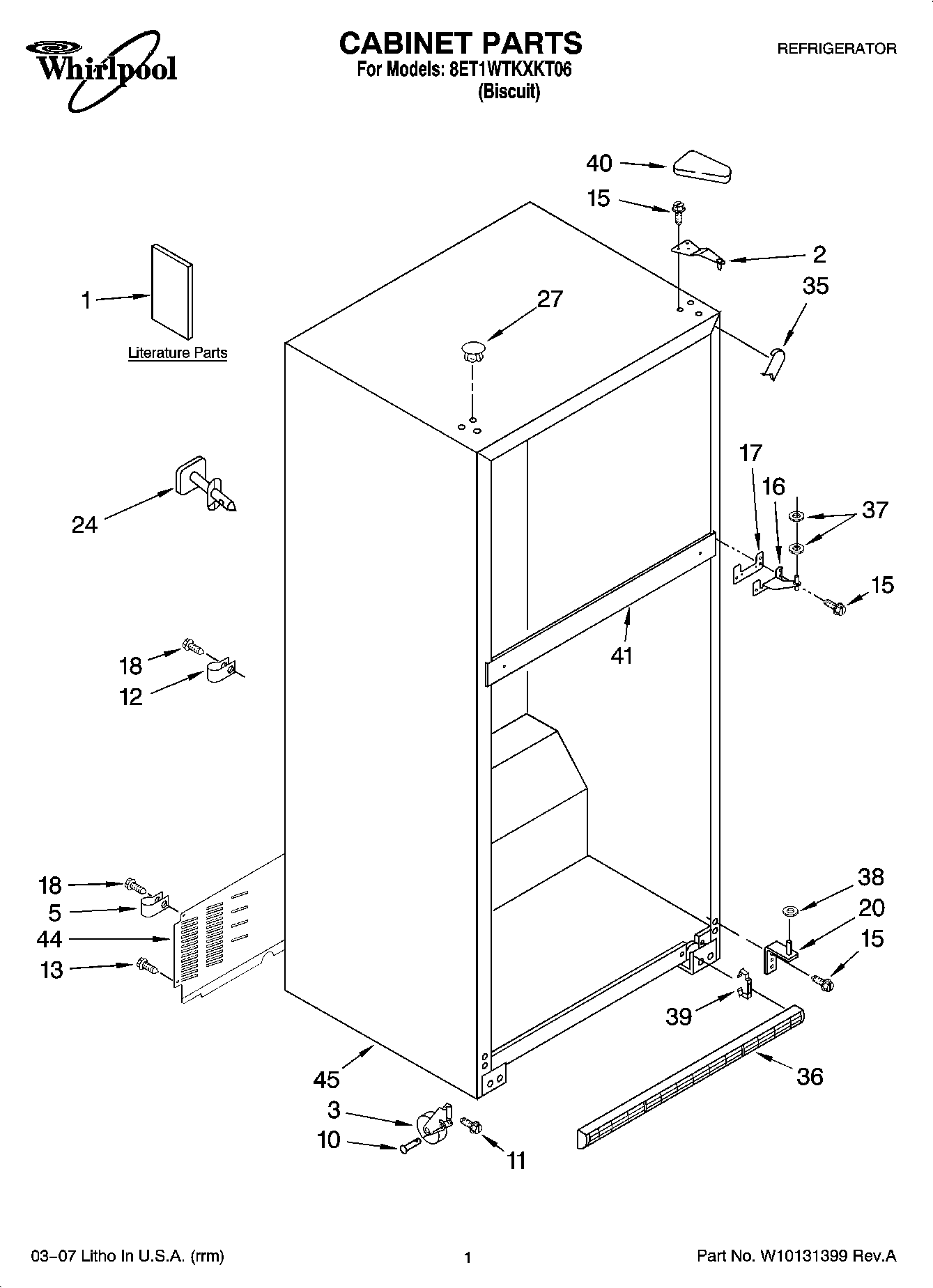

8ET1WTKXKT06 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide (English)
1	Use & Care Guide (Chinese)
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Service & Wiring Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
10	W11594405 Whirlpool Axle
11	WP3400504 Whirlpool Refrigerator Screw
12	489348 Whirlpool Refrigerator Tube Clamp
13	WP489442 Whirlpool Refrigerator Screw
15	WP489497 Whirlpool Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
24	Fitting, Water Tube (Not Serviced)
27	Hole Plug (6) (Biscuit)
35	W10283958 Whirlpool Refrigerator Filler
36	Grille (Biscuit)
37	WP489467 Whirlpool Hinge Shim
38	WP487576 Whirlpool Washer
39	CLIP, GRILLE
40	2213364 Whirlpool Refrigerator Cover
41	Rail, Center (Not Serviced)
44	Cover, Unit
45	Cabinet, (Not A Serviceable Part)
