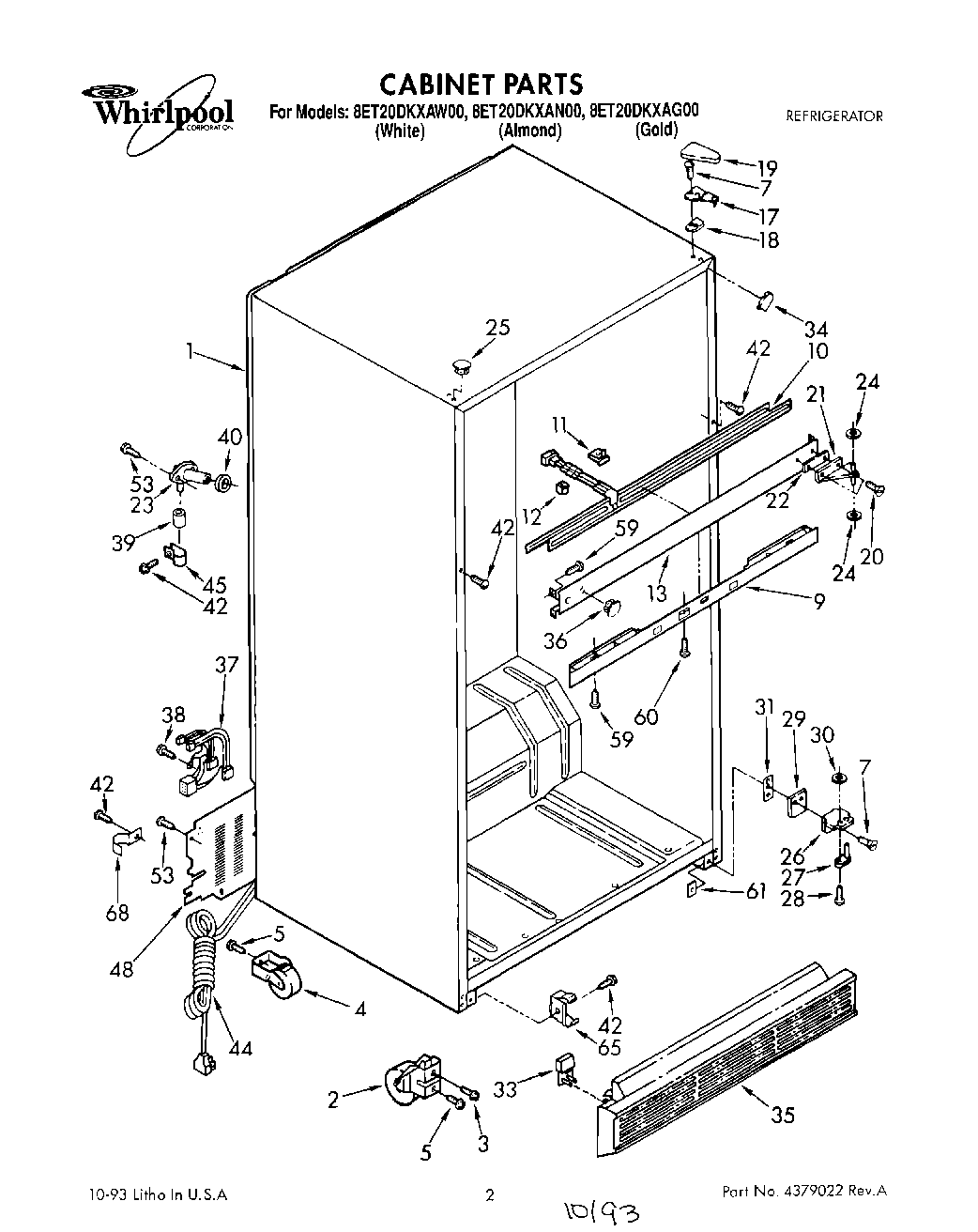

8ET20DKXAG00 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Front Roller (2)
3Screw, 5/16-24 x 1-1/4
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5Screw, 1/4-28 x 1/2 (2)
9Control, Front Cover
10Heater, Mullion
11Clip, Center Rail (4)
12Spacer (3)
13Center Rail
17WP2189412 Whirlpool Refrigerator Door Hinge
18Shim, Hinge Top
19WP2213360 Whirlpool Refrigerator Cover
19Cover, Hinge (Almond)
20WP999367 Whirlpool Refrigerator Screw
21Hinge, Center
22Shim, Hinge Center
23WP2196157 Whirlpool Fill Tube
24WP487802 Whirlpool Refrigerator Washer
25Hole Plug (6) (Almond)
25WP2151652 Whirlpool Refrigerator Button Plug
25Hole Plug (5) (Golden Harvest)
26Hinge Butt, Bottom
27Hinge Pin, Bottom
28Screw 10-32 x 5/16
29Shim, Bottom
31Spacer
33Corner Filler, Grille (White)
33Corner Filler, Grille (Almond)
33Corner Filler, Grille
34Filler, Wrapper Corner (2) (Golden Harvest)
34Filler, Wrapper Corner (2) (Almond)
34Filler, Wrapper Corner (2) (White)
35Grille (Black)
35Grille (Almond)
35Grille (White)
36Hole Plug (4) (White)
37Wiring Assembly, Intermediate
38WP250830 Whirlpool Refrigerator Screw
39WP487996 Whirlpool Refrigerator Cap Tube
40WP1106508 Whirlpool Refrigerator Gasket
42WP489478 Whirlpool Refrigerator Screw
44Cord, Service
45WP488366 Whirlpool Refrigerator Clamp
48Cover, Unit
53WP489464 Whirlpool Refrigerator Screw
59WP488163 Whirlpool Refrigerator Screw
60WP489174 Whirlpool Refrigerator Screw
61Tap Plate (2)
65WP2155013 Whirlpool Refrigerator Clip
68549193 Whirlpool Refrigerator Power Clamp
