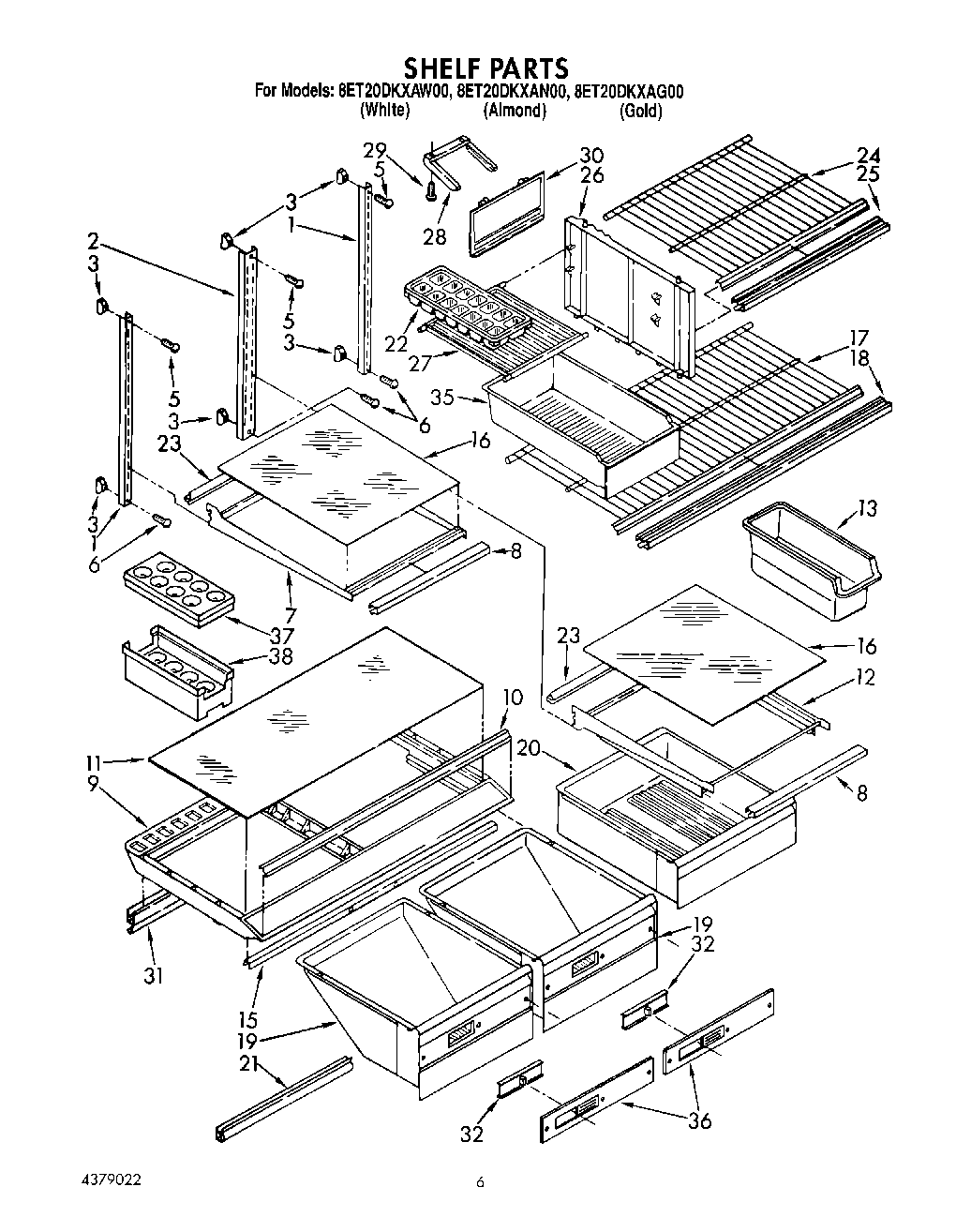

8ET20DKXAW00 04 – SHELF, LIT/OPTIONAL

8ET20DKXAW00 04 – SHELF, LIT/OPTIONAL

8ET20DKXAW00 04 – SHELF, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2170140
WPL LIT2158683
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
5Screw (3)
7Shelf, Cantilever
8Trim, Shelf
9WP2151749 Whirlpool Refrigerator Cover
10Trim, Crisper Cover
11Glass, Crisper Cover
12Pan Shelf, Cantilever
13WP982704 Whirlpool Refrigerator Container
15WP2172748 Whirlpool Drawer Support
16Shelf, Glass
17Shelf, Freezer
18Trim, Shelf Front
19Pan, Crisper
20Pan, Meat
21Gasket-Front
22WP841180A Whirlpool Microwave Glass Turntable Tray
23Reflector, Shelf
24Shelf, Freezer (Top)
25Trim, Shelf
26Divider
27Shelf, Ice Compartment (2)
28Slide, Ice Compartment
29WP488163 Whirlpool Refrigerator Screw
30Door, Ice Compartment
31Gasket, Rear
32Slide, Crisper
35PAN-ICE
36Crisper Front
37Egg Container, Top
38CEMENT, ALUMILASTIC (1 1/4 OZ.)
38212643 Whirlpool Refrigerator Permagum Sealer
3872032 Whirlpool Touch Up Paint Black
38Golden Harvest (Uncut)
38Golden Harvest
38Almond (Uncut)
3872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
38Leveler (Thinner)
38WP72107 Whirlpool Touchup
38799344 Whirlpool Refrigerator Paint
3872017 Whirlpool Appliance Touch-Up Paint White
38350956 Whirlpool Spray Assembly
38350930 Whirlpool White Spray Paint
38Egg Container, Bottom
38350942 Whirlpool Spray Paint
38TAPE, VINYL (3/4 X 108“)
38Torx Key
38WP542638 Whirlpool Refrigerator Grease
38WPL 799833
38WPL 876029
38WP505587 Whirlpool Refrigerator Sealer
38WP503695 Whirlpool Refrigerator Sealer
38876370 Whirlpool Refrigerator Insulation
38833938 Whirlpool Refrigerator Terminal
38606755 Whirlpool Refrigerator Bag
381129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
38285006 Whirlpool Spray
38511873 Whirlpool Refrigerator Paint
