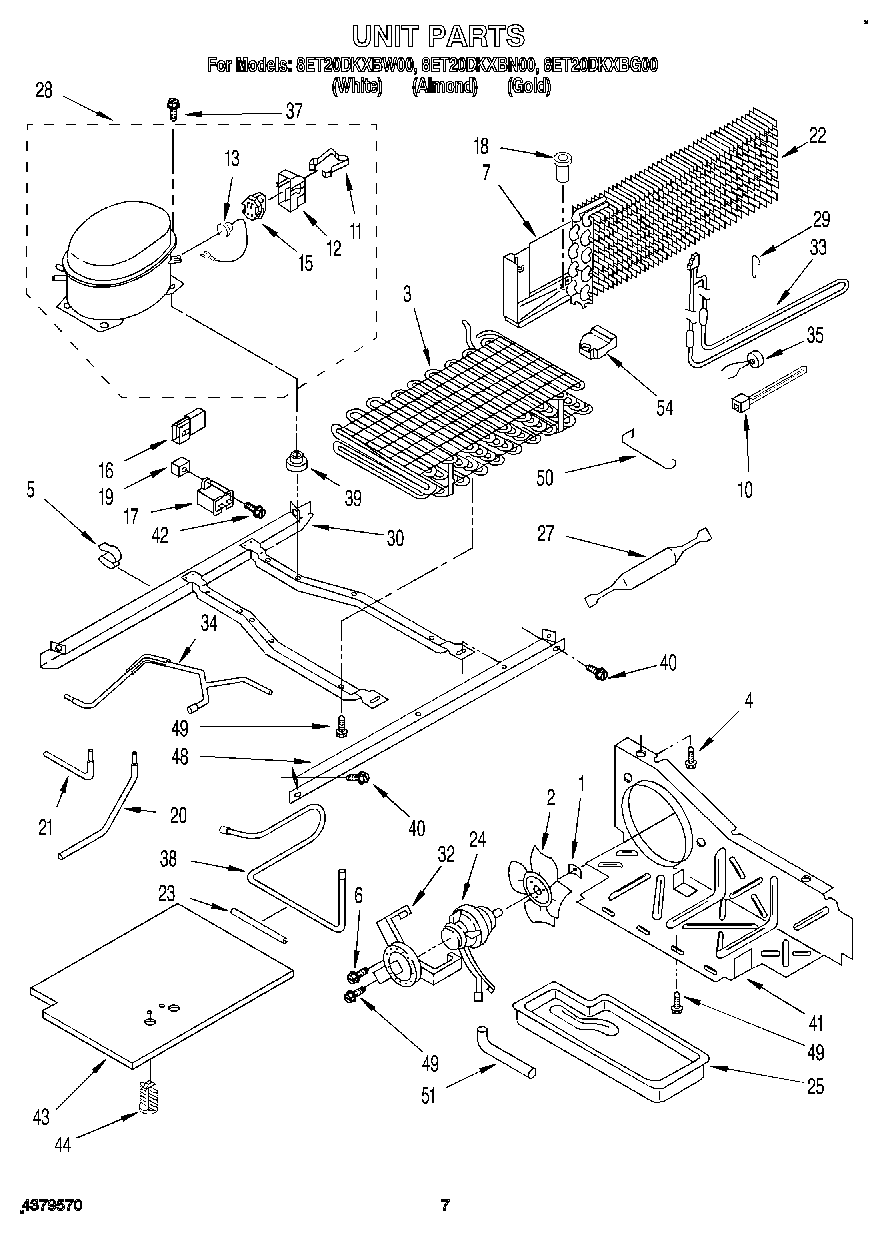

8ET20DKXBN00 05 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
10	WPW10339879 Whirlpool Wire Tie
11	Strap
12	Cover
13	OVERLOAD
15	4318083 Whirlpool Air Conditioner Start Relay
16	Housing Plug
17	Capacitor
18	Drain Fitting
19	Screw Grommet
20	Tube, Condenser To Heat Loop
21	2154109 Whirlpool Refrigerator Tube
22	Evaporator
23	SLEEVE
24	833697 Whirlpool Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
27	W10843121 Whirlpool Refrigerator Tube
28	W10439652 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Support, Heater
30	Unit Mounting Frame
32	Fan, Motor Bracket
33	Heater, Defrost
34	Tube, Discharge
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
38	Tube, Suction
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
42	W11693756 Whirlpool Screw Assembly
43	Cover-Unit Btm.
44	489396 Whirlpool Refrigerator Clip
48	Unit Mounting Rail
50	1105612 Whirlpool Fan Guard
51	Drain Extension
54	876764 Whirlpool Refrigerator Primary Valve
54	VALVE, ACCESS (1/2“)
54	Support (R.S.)
54	VALVE, ACCESS (5/8“)
54	WP978025 Whirlpool Refrigerator Valve
54	978030 Whirlpool Refrigerator Valve
54	978027 Whirlpool Refrigerator Primary Valve
54	978026 Whirlpool Refrigerator Primary Valve
54	Support-Evaporator (L.S.)
