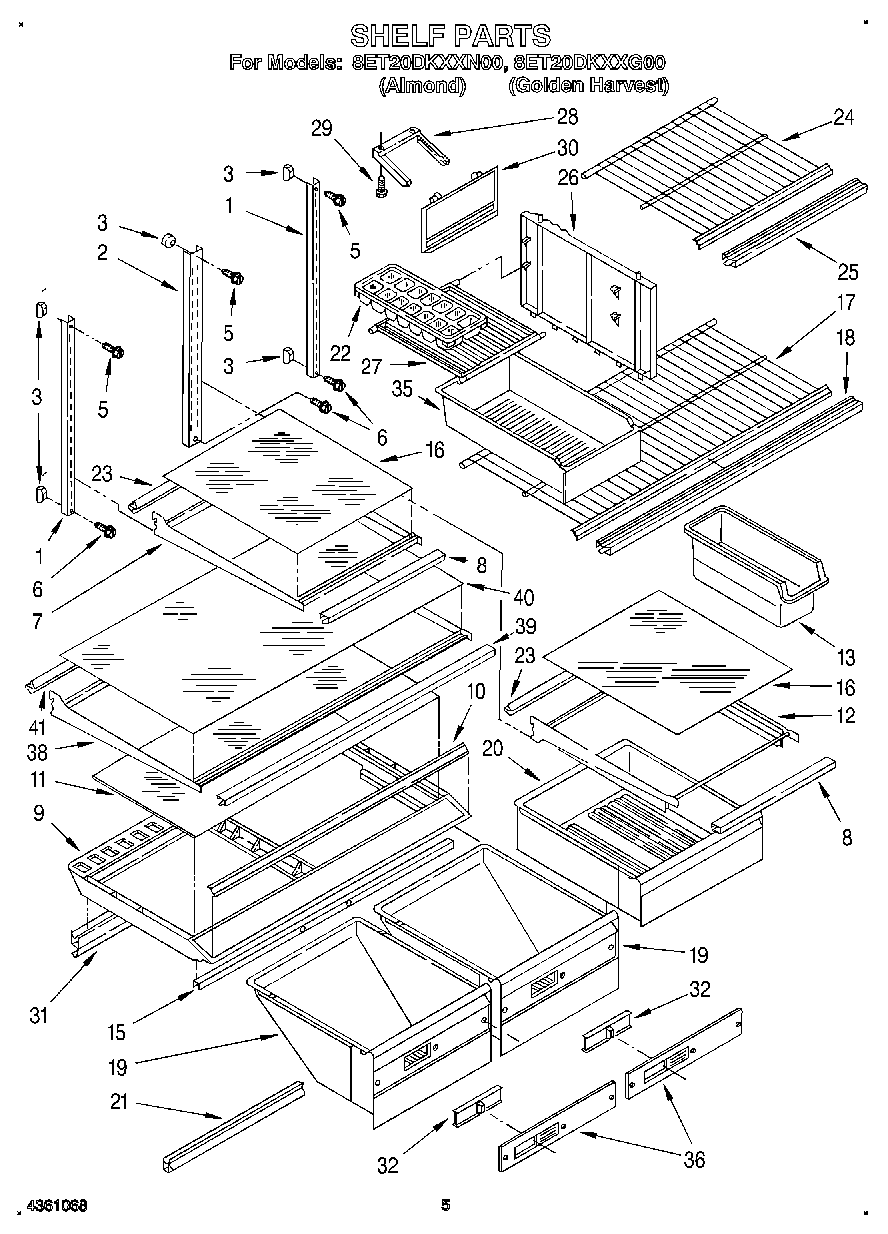

8ET20DKXXN00 04 – SHELF, LIT/OPTIONAL

8ET20DKXXN00 04 – SHELF, LIT/OPTIONAL

Written by

in

8ET20DKXXN00 04 – SHELF, LIT/OPTIONAL

Products

PositionProduct
WPL LIT4361068
WPL LIT2156521
WPL LIT1124256
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
5Screw (3)
7Shelf, Cantilever
8Trim, Shelf
9WP2151749 Whirlpool Refrigerator Cover
10Trim, Crisper Cover
11Glass, Crisper Cover
12Pan Shelf, Cantilever
13WP982704 Whirlpool Refrigerator Container
15WP2172748 Whirlpool Drawer Support
16Shelf, Glass
17Shelf, Freezer
18Trim, Shelf Front
19Pan, Crisper
20Pan, Meat
21Gasket-Front
22WP841180A Whirlpool Microwave Glass Turntable Tray
23Reflector, Shelf
24Shelf, Freezer (Top)
25Trim, Shelf
26Divider
27Shelf, Ice Compartment (2)
28Slide, Ice Compartment
29WP488163 Whirlpool Refrigerator Screw
30Door, Ice Compartment
31Gasket, Rear
32Slide
35PAN-ICE
36Crisper Pan, Front
38Shelf, Full Cantilever
39Trim, Shelf
40Glass, Shelf
41Almond (Uncut)
4172110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41Golden Harvest (Uncut)
41212643 Whirlpool Refrigerator Permagum Sealer
41Leveler (Thinner)
41WP72107 Whirlpool Touchup
41Golden Harvest
41Reflector, Shelf
41799344 Whirlpool Refrigerator Paint
4172017 Whirlpool Appliance Touch-Up Paint White
41350956 Whirlpool Spray Assembly
41350942 Whirlpool Spray Paint
41511873 Whirlpool Refrigerator Paint
411129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
4172032 Whirlpool Touch Up Paint Black
41285006 Whirlpool Spray
41WPL 876029
41CEMENT, ALUMILASTIC (1 1/4 OZ.)
41TAPE, VINYL (3/4 X 108“)
41Torx Key
41WPL 799833
41WP542638 Whirlpool Refrigerator Grease
41WP505587 Whirlpool Refrigerator Sealer
41WP503695 Whirlpool Refrigerator Sealer
41876370 Whirlpool Refrigerator Insulation
41833938 Whirlpool Refrigerator Terminal
41606755 Whirlpool Refrigerator Bag
41350930 Whirlpool White Spray Paint
