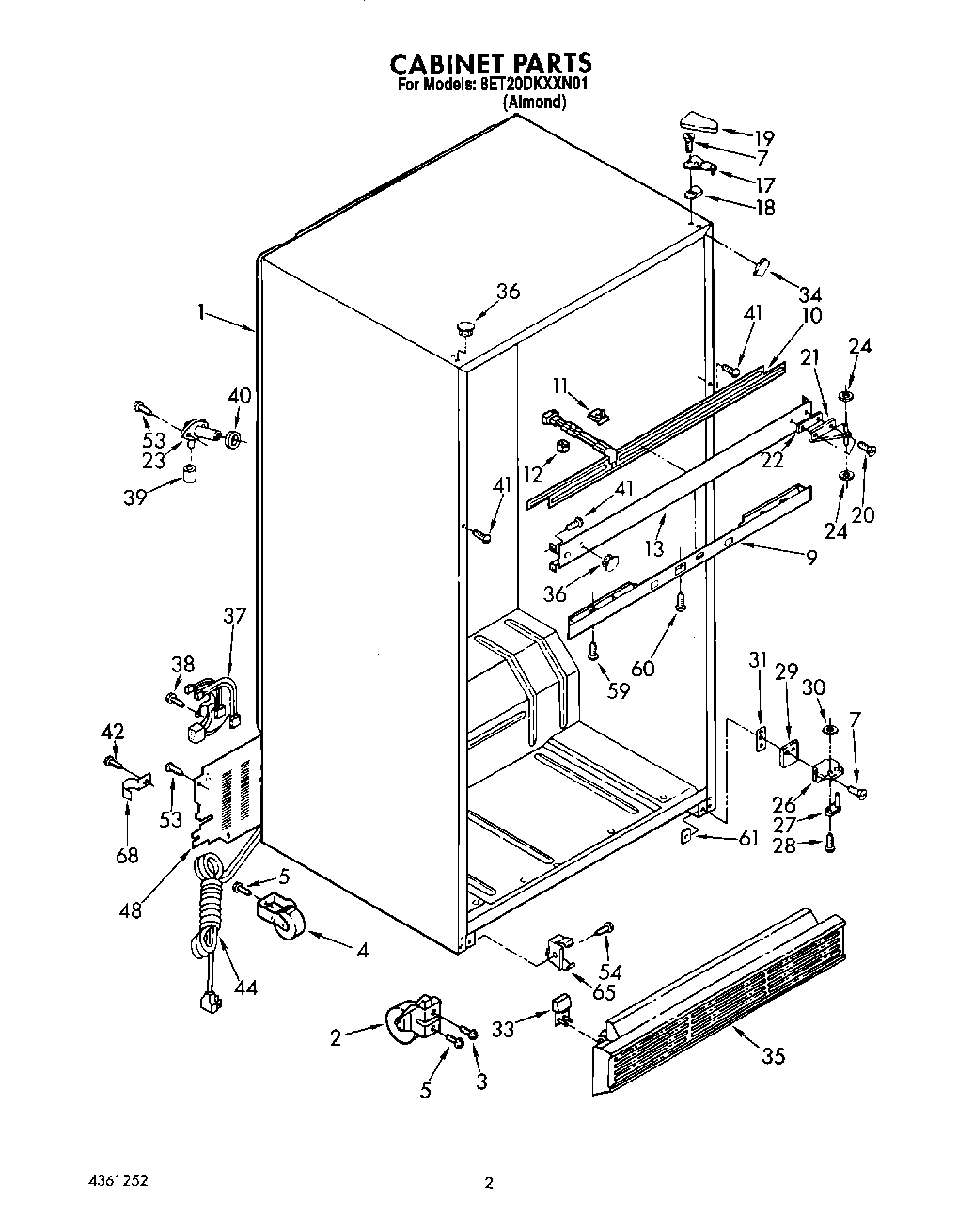

8ET20DKXXN01 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
7	Screw
8	WP489464 Whirlpool Refrigerator Screw
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Center Rail (4)
12	Spacer (3)
13	Center Rail (White)
17	Hinge, Top
18	Shim, Hinge Top
19	1119787 Whirlpool Refrigerator Hinge Cover
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP2196157 Whirlpool Fill Tube
24	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	WP489200 Whirlpool Refrigerator Washer
31	Spacer
33	Corner Filler, Grille
34	Filler, Wrapper Corner (2) (Almond)
35	Grille (Black)
36	Hole Plug (4) (White)
37	Wire, Assembly Overload
38	WP250830 Whirlpool Refrigerator Screw
39	WP487996 Whirlpool Refrigerator Cap Tube
40	WP1106508 Whirlpool Refrigerator Gasket
44	Cord, Service
48	Cover, Unit
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap Plate (2)
65	WP2155013 Whirlpool Refrigerator Clip
68	549193 Whirlpool Refrigerator Power Clamp
69	WP489478 Whirlpool Refrigerator Screw
