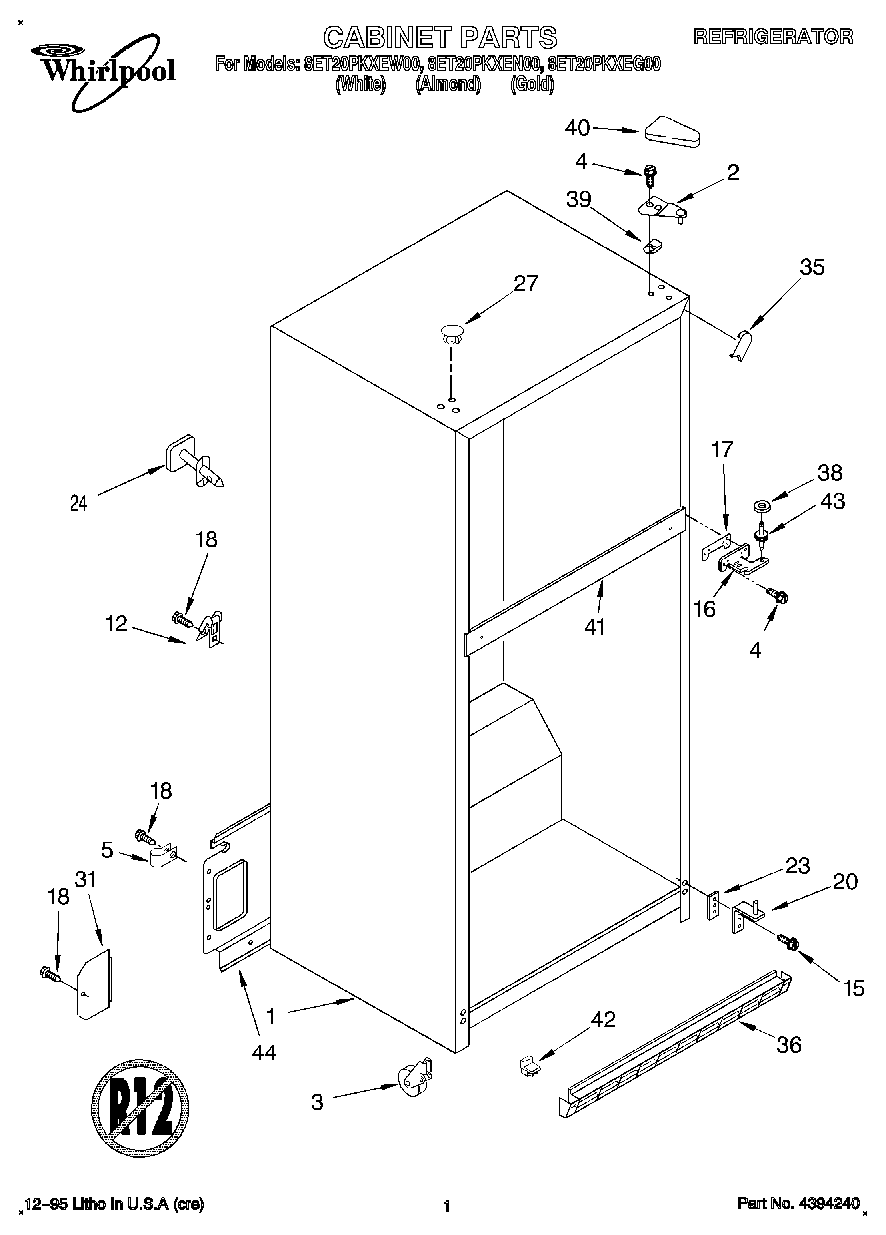

8ET20PKXEN00 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2WP2189412 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4WP999367 Whirlpool Refrigerator Screw
5WP488366 Whirlpool Refrigerator Clamp
12549193 Whirlpool Refrigerator Power Clamp
15Screw
17Shim, Hinge Center
18WP489463 Whirlpool Refrigerator Screw
20Hinge, Butt
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
27Hole Plug (5) (Golden Harvest)
27Hole Plug (6) (Almond)
27WP2151652 Whirlpool Refrigerator Button Plug
31Cover, Water Valve
35Corner Filler (2) (Almond)
35Corner Filler (2) (Gold)
35WPW10283959 Whirlpool Refrigerator Filler
36Grille
36Grille (White)
36Grille (Almond)
38WP487576 Whirlpool Washer
39Shim, Hinge Top
40WP2213360 Whirlpool Refrigerator Cover
40Cover, Hinge (Almond)
41Rail Center (Not Serviced)
42Corner Filler, Grille
42Corner Filler, Grille (Almond)
42Corner Filler, Grille (White)
43WP2254618 Whirlpool Center Door Hinge
44Cover, Unit
