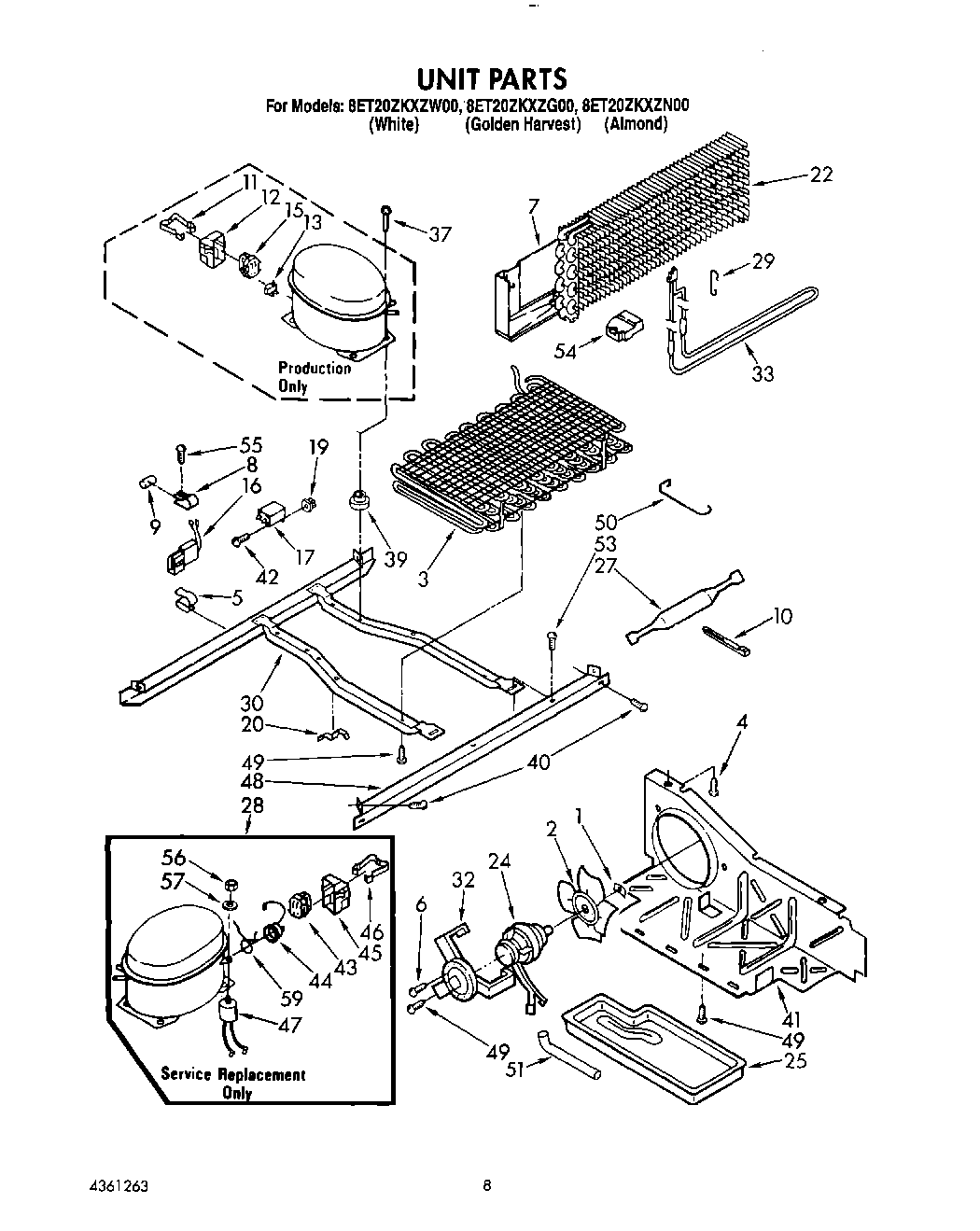

8ET20ZKXZG00 07 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
8	Clamp Tube
9	Dampener (2)
10	WPW10339879 Whirlpool Wire Tie
11	case spring
12	Case, Relay
13	Overload
15	2154436 Whirlpool Refrigerator Start Relay
16	Housing Plug
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
19	Screw Grommet
20	Clip (2)
22	Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 59) (Also Order 876765 Tube Kit)
29	Support, Heater
30	Unit Mounting Frame
32	Bracket, Motor
33	Heater, Defrost
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air, Baffle
42	W11693756 Whirlpool Screw Assembly
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover
46	Strap
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
51	Drain Extension
53	Screw, 1/4-28 x 1/2 (2)
54	Support (L.S.)
54	Support (R.S.)
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
56	Nut
57	Washer
59	VALVE, ACCESS (5/8“)
59	978026 Whirlpool Refrigerator Primary Valve
59	978027 Whirlpool Refrigerator Primary Valve
59	978030 Whirlpool Refrigerator Valve
59	WP978025 Whirlpool Refrigerator Valve
59	VALVE, ACCESS (1/2“)
59	876764 Whirlpool Refrigerator Primary Valve
59	Overload Spring
