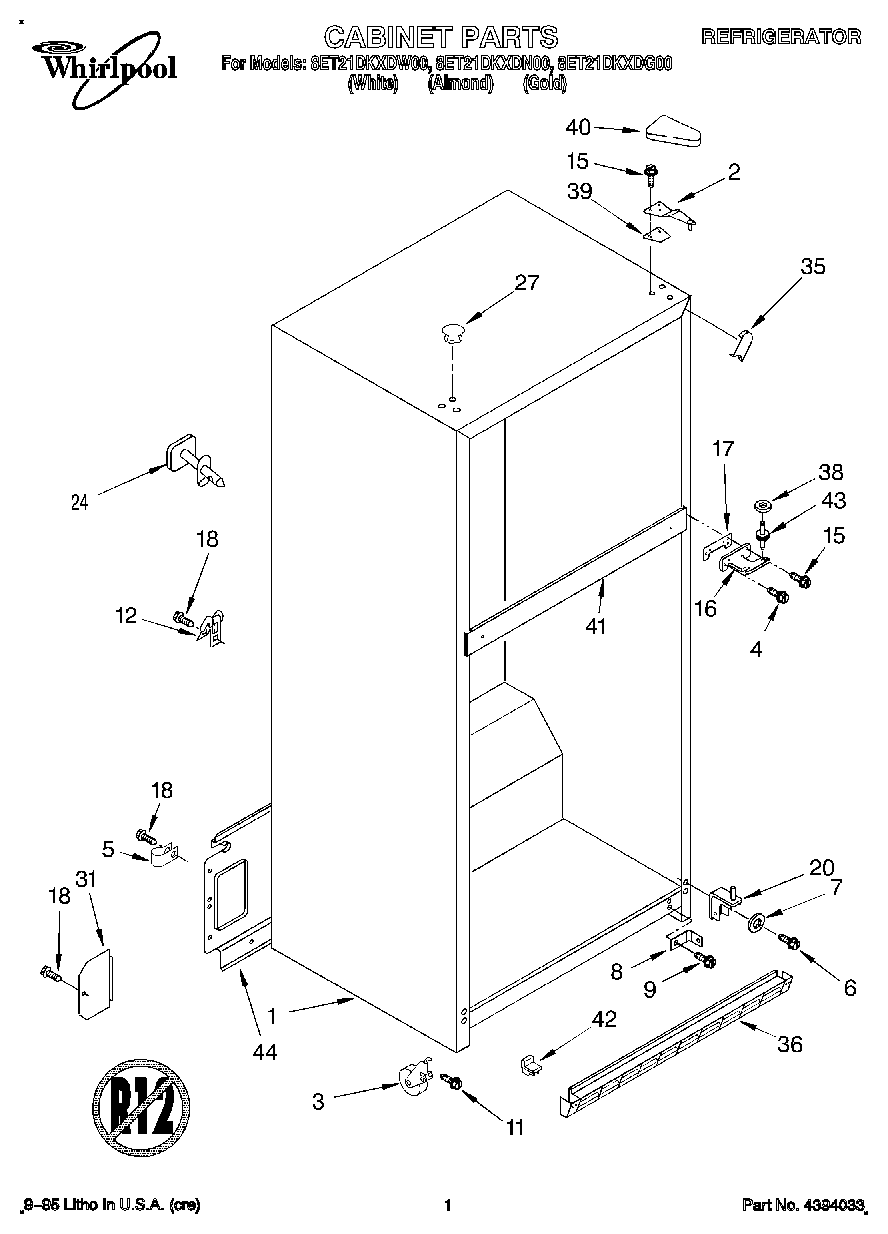

8ET21DKXDW00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Hinge (Top)
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Screw
5	WP488366 Whirlpool Refrigerator Clamp
6	Screw
7	WP489467 Whirlpool Hinge Shim
8	Bracket, Bottom Hinge
9	Screw
11	Screw
12	549193 Whirlpool Refrigerator Power Clamp
15	WP999367 Whirlpool Refrigerator Screw
16	Hinge, Center
17	Shim, Hinge Center
18	WP489463 Whirlpool Refrigerator Screw
20	Hinge Butt
24	Fitting, Water Tube (Not Serviced)
27	WP2151652 Whirlpool Refrigerator Button Plug
27	Hole Plug (6) (Almond)
27	Hole Plug (5) (Golden Harvest)
31	Cover, Water Valve
35	Corner Filler (2) (Almond)
35	Corner Filler (2) (Gold)
35	WPW10283959 Whirlpool Refrigerator Filler
36	Grille
36	Grille (White)
36	Grille (Almond)
38	WP487576 Whirlpool Washer
39	Shim
40	Cover-Hinge (Almond)
40	Cover-Hinge (Gold)
40	Cover-Hinge (White)
41	Rail Center (Not Serviced)
42	Corner Filler, Grille
42	Corner Filler, Grille (Almond)
42	Corner Filler, Grille (White)
43	WP2254618 Whirlpool Center Door Hinge
44	Cover, Unit
