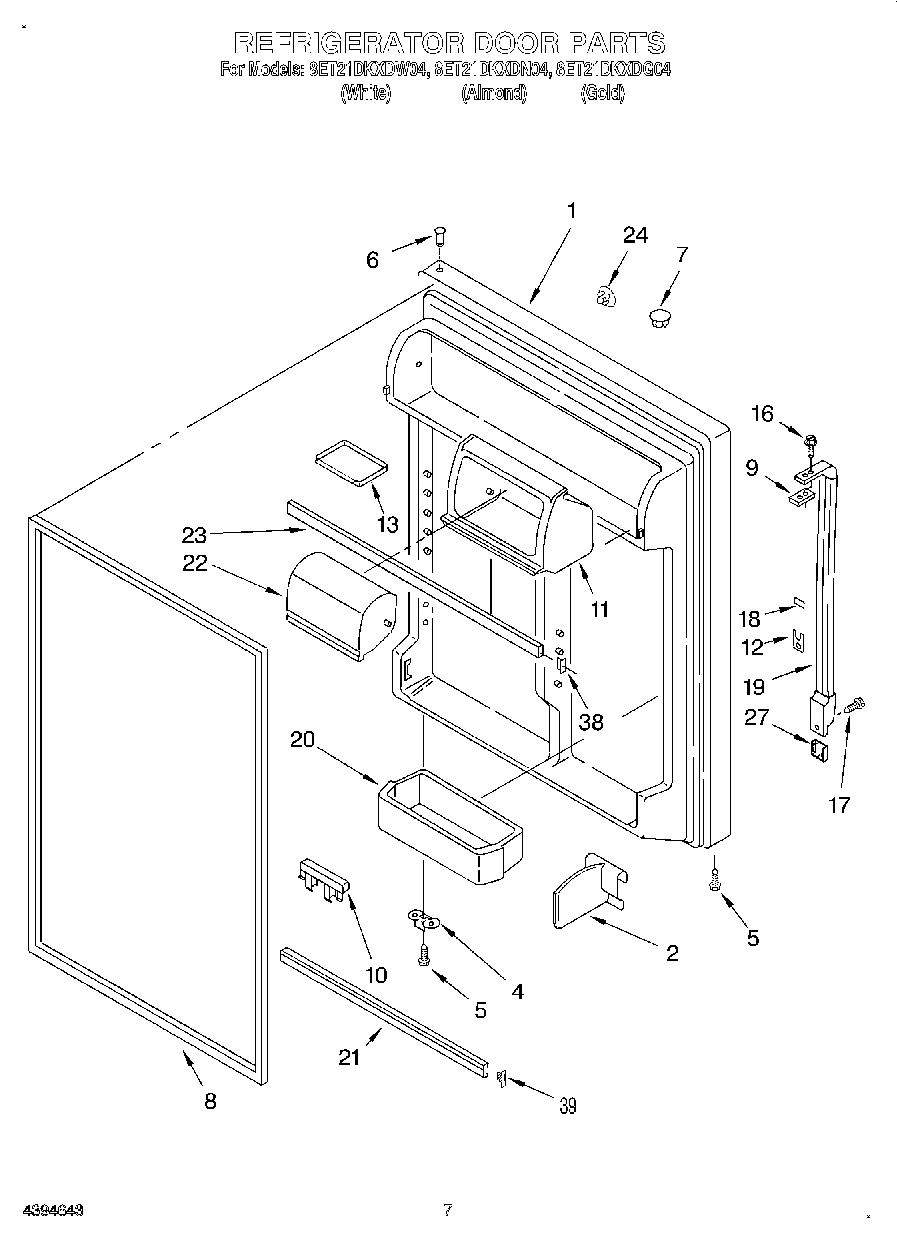

8ET21DKXDW04 04 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.6 & No.8) (Gold)
1	Refrigerator Door (Includes No.6 & No.8) (Almond)
1	Refrigerator Door (Includes No.6 & No.8) (White)
2	WPL 2171284
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159081 Whirlpool Refrigerator Door Gasket
8	2159073 Whirlpool Refrigerator Door Gasket
9	Shim, Bottom
10	Retainer, Bottle
11	Housing Compartment
12	Shim, Handle
13	Tray, Door
16	WP488920 Whirlpool Refrigerator Screw
17	WP488729 Whirlpool Refrigerator Door Screw
18	Shim
19	Handle (Almond)
19	Handle (White)
19	Handle (Black)
20	BIN-CNTLVR
21	WPW10421486 Whirlpool Refrigerator Door Trim
22	Door Compartment
23	Trim, Door Shelf
24	Hole Plug (Almond)
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (Black)
27	Cover, Endcap (White)
27	Cover, Endcap (Black)
27	Cover, End Cap (Almond)
38	Endcap, Door Trim
39	Plug, Trim (2)
