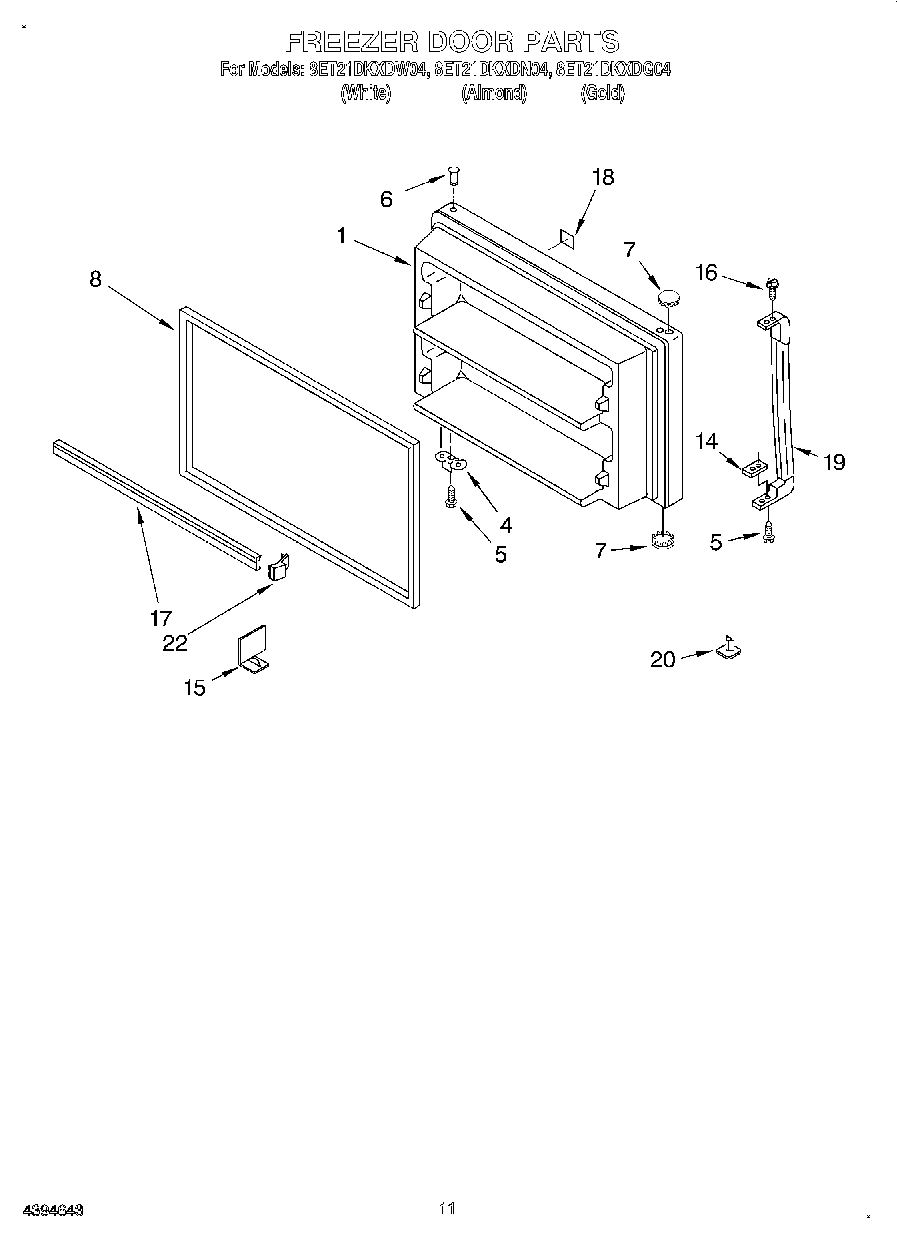

8ET21DKXDW04 06 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT677971
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT2195258
	Torx Key
	WPL LIT2193088
1	Freezer Door (Includes No.8) (White)
1	Freezer Door (Includes No.8) (Almond)
1	Freezer Door (Includes No.6 & No.8) (Gold)
4	W11745278 Whirlpool Bracket
5	WP488921 Whirlpool Refrigerator Screw
6	WP2183003 Whirlpool Thimble
7	Hole Plug (Almond)
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2159072 Whirlpool Refrigerator FIP Gasket
8	2159080 Whirlpool Refrigerator Door Gasket
14	Shim, Bottom
15	Divider-Door
16	WP488920 Whirlpool Refrigerator Screw
17	Trim-Door (2)
18	Nameplate (Almond and Gold Models)
18	Nameplate
19	Handle (Black)
19	Handle (Almond)
19	Handle (White)
20	Hole Plug (Black)
20	Hole Plug (Almond)
20	Hole Plug (White)
22	285006 Whirlpool Spray
22	Almond (Uncut)
22	WP72107 Whirlpool Touchup
22	Door Reversal Instructions
22	TAPE, VINYL (3/4 X 108“)
22	350930 Whirlpool White Spray Paint
22	WPL 876029
22	799344 Whirlpool Refrigerator Paint
22	72017 Whirlpool Appliance Touch-Up Paint White
22	350956 Whirlpool Spray Assembly
22	WPL 799833
22	WP542638 Whirlpool Refrigerator Grease
22	212643 Whirlpool Refrigerator Permagum Sealer
22	72032 Whirlpool Touch Up Paint Black
22	ENDCAP
22	833938 Whirlpool Refrigerator Terminal
22	WPL 799832
22	606755 Whirlpool Refrigerator Bag
22	876370 Whirlpool Refrigerator Insulation
22	WP503695 Whirlpool Refrigerator Sealer
22	WP505587 Whirlpool Refrigerator Sealer
22	511873 Whirlpool Refrigerator Paint
22	350942 Whirlpool Spray Paint
22	CEMENT, ALUMILASTIC (1 1/4 OZ.)
