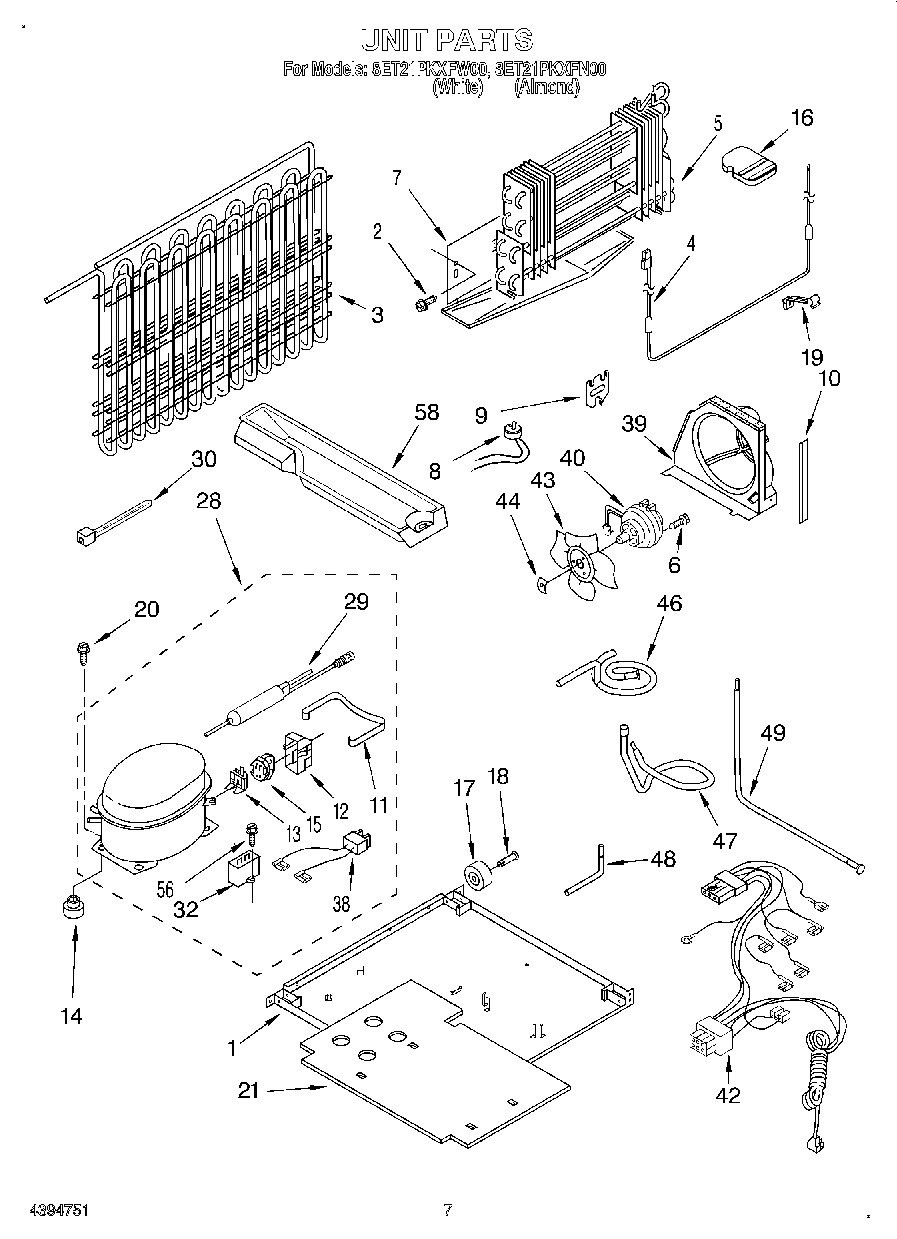

8ET21PKXFW00 04 – UNIT

8ET21PKXFW00 04 – UNIT

Written by

in

8ET21PKXFW00 04 – UNIT

Products

PositionProduct
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3Condenser
4WP2315530 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WP8281196 Whirlpool Screw
7Drain Pan
8WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
9Bracket, Heater
10Extension, Air Baffle
11case spring
12Case, Relay
132183409 Whirlpool Refrigerator Overload
134387913 Whirlpool Refrigerator Primary Overload Relay
14876811 Whirlpool Grommet
14W11661108 Whirlpool Grommet
15Relay (See Overload)
16Support Block
174388239 Whirlpool Refrigerator Primary Cabinet Roller
18W11594405 Whirlpool Axle
19Clip, Heater
20SCREW
21Cover, Unit
28Installation Kit
28876765 Whirlpool Primary Mounting Kit Refrigerator
28W10309988 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32Capacitor
38WP2172890 Whirlpool Refrigerator Wire
39Air Baffle
40W10822259 Whirlpool Refrigerator Condenser Fan Motor
42Wire Assy. Unit
43Blade, Fan
44WP486692 Whirlpool Refrigerator Nut
46Tube, Discharge
47Tube, Suction
482154109 Whirlpool Refrigerator Tube
49Tube, Condenser To Heat Loop
56W11693756 Whirlpool Screw Assembly
58978026 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (1/2“)
58VALVE, ACCESS (5/8“)
58Evap. Tray
58WP978025 Whirlpool Refrigerator Valve
58978030 Whirlpool Refrigerator Valve
58Start Kit
58876764 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
