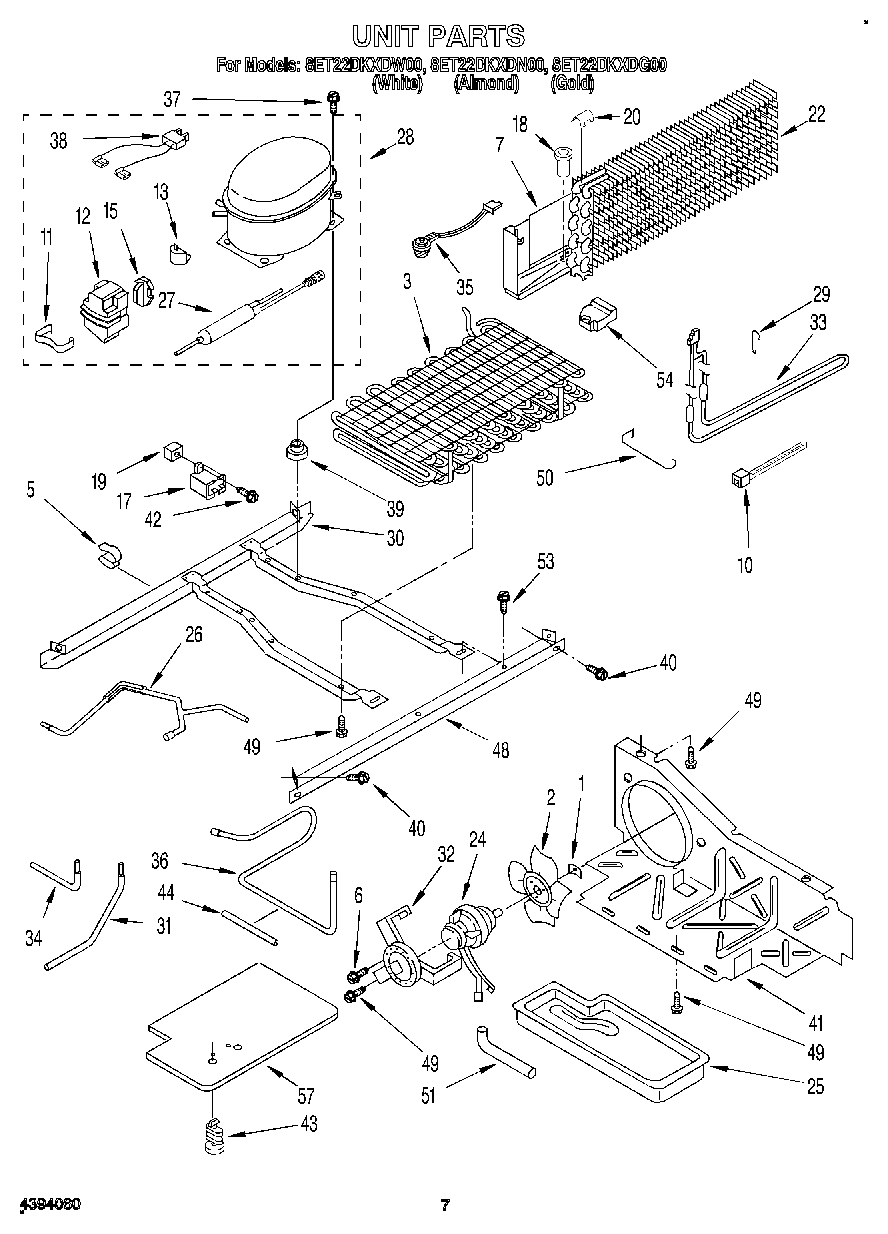

8ET22DKXDW00 05 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
10	WPW10339879 Whirlpool Wire Tie
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	OVERLOAD
15	Relay (See Overload)
17	Capacitor
18	Drain Fitting
19	Screw Grommet
20	9791833 Whirlpool Refrigerator Clip
22	Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	Tube, Discharge
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Support, Heater
30	2304903 Whirlpool Refrigerator Frame
31	Tube, Condenser To Heat Loop
32	Bracket, Motor
33	Heater, Defrost
34	2154109 Whirlpool Refrigerator Tube
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36	Tube, Suction
38	Wire, Assembly Overload
39	876811 Whirlpool Grommet
40	WP489478 Whirlpool Refrigerator Screw
41	Air Baffle
42	W11693756 Whirlpool Screw Assembly
43	489396 Whirlpool Refrigerator Clip
44	SLEEVE
48	Unit Mounting Rail
50	1105612 Whirlpool Fan Guard
51	Drain Extension
53	WP489464 Whirlpool Refrigerator Screw
54	Support-Evaporator (L.S.)
54	Support-Evaporator (R.S.)
57	978026 Whirlpool Refrigerator Primary Valve
57	978030 Whirlpool Refrigerator Valve
57	876764 Whirlpool Refrigerator Primary Valve
57	VALVE, ACCESS (5/8“)
57	WP978025 Whirlpool Refrigerator Valve
57	Cover-Unit Btm.
57	VALVE, ACCESS (1/2“)
57	978027 Whirlpool Refrigerator Primary Valve
