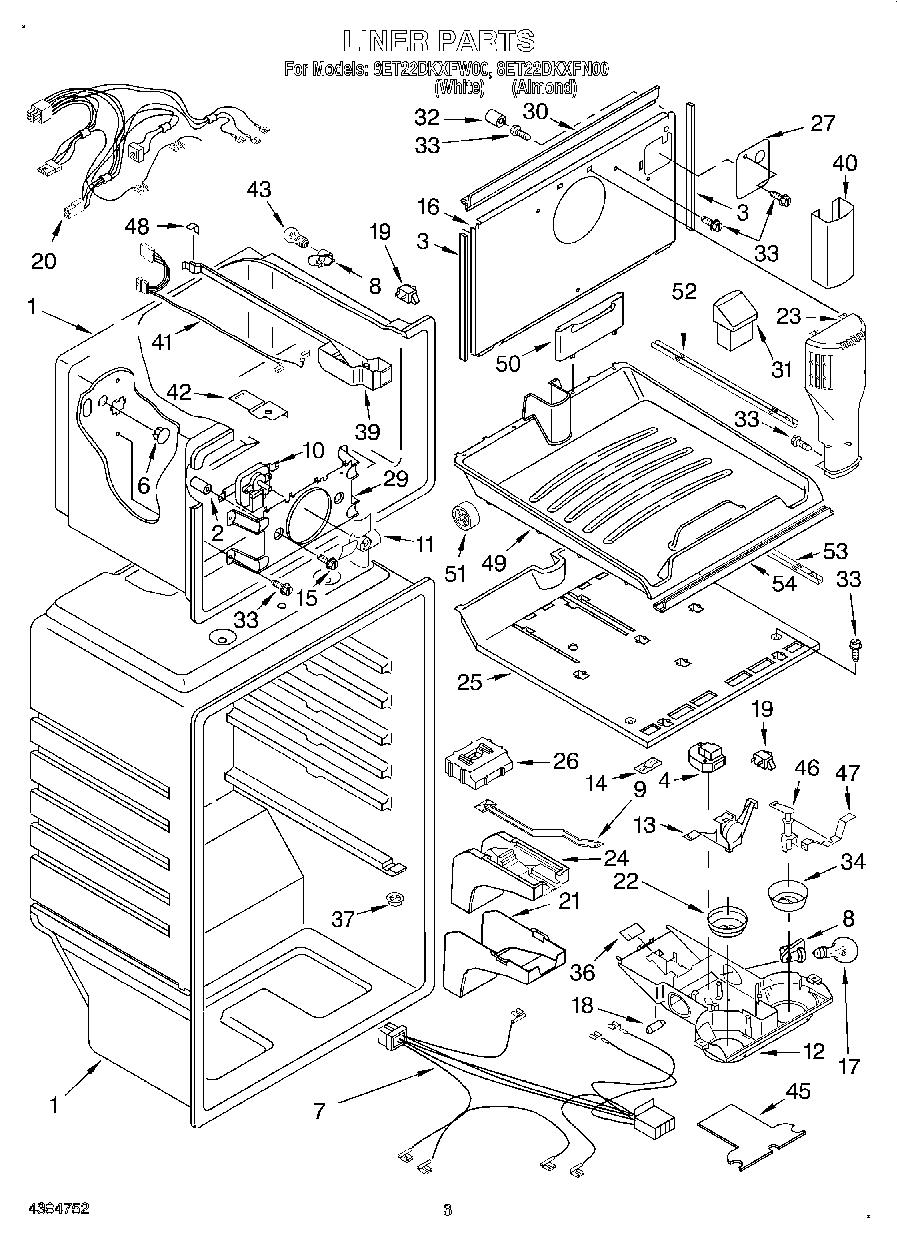

8ET22DKXFW00 02 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Grommet
3	WP2254360 Whirlpool Refrigerator Gasket
4	Timer, Defrost
6	WP941839 Whirlpool Refrigerator Button Plug
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	4387562 Whirlpool Refrigerator Thermostat Temperature Cold Control
14	Clip, Defrost Timer
15	Screw
16	Cover-Evaporator
17	RANGE ONLY 40W 120V APPL BULB
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Wire Assembly, F.C.
21	Cover, Air Diffuser
22	Knob, Thermostat
23	Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Freezer Floor
26	Air Diffuser, Top
27	WP2217784 Whirlpool Refrigerator Cover
29	Bracket, Fan Motor
31	4388450 Whirlpool Refrigerator Insert
32	WP487996 Whirlpool Refrigerator Cap Tube
33	WP489478 Whirlpool Refrigerator Screw
34	Knob, Damper
36	WP2205079 Whirlpool Refrigerator Seal
37	WP2210509 Whirlpool Refrigerator Tub Valve
39	Housing Base
40	Sleeve
41	Wiring Harness, Freezer Light
42	Electrical Shield, Freezer Light
43	4396822 Whirlpool Refrigerator Light Bulb
45	Shield
46	Post, Damper
47	Bracket, Damper Knob
48	Gasket, Rear
49	Pullout, Freezer Floor
50	REAR FENCE PULL-OUT FREEZER FLOOR
51	Roller, Slide
52	Side Support, Floor Assembly
53	Center Support, Floor Assembly
54	Trim, Pullout Freezer Floor
