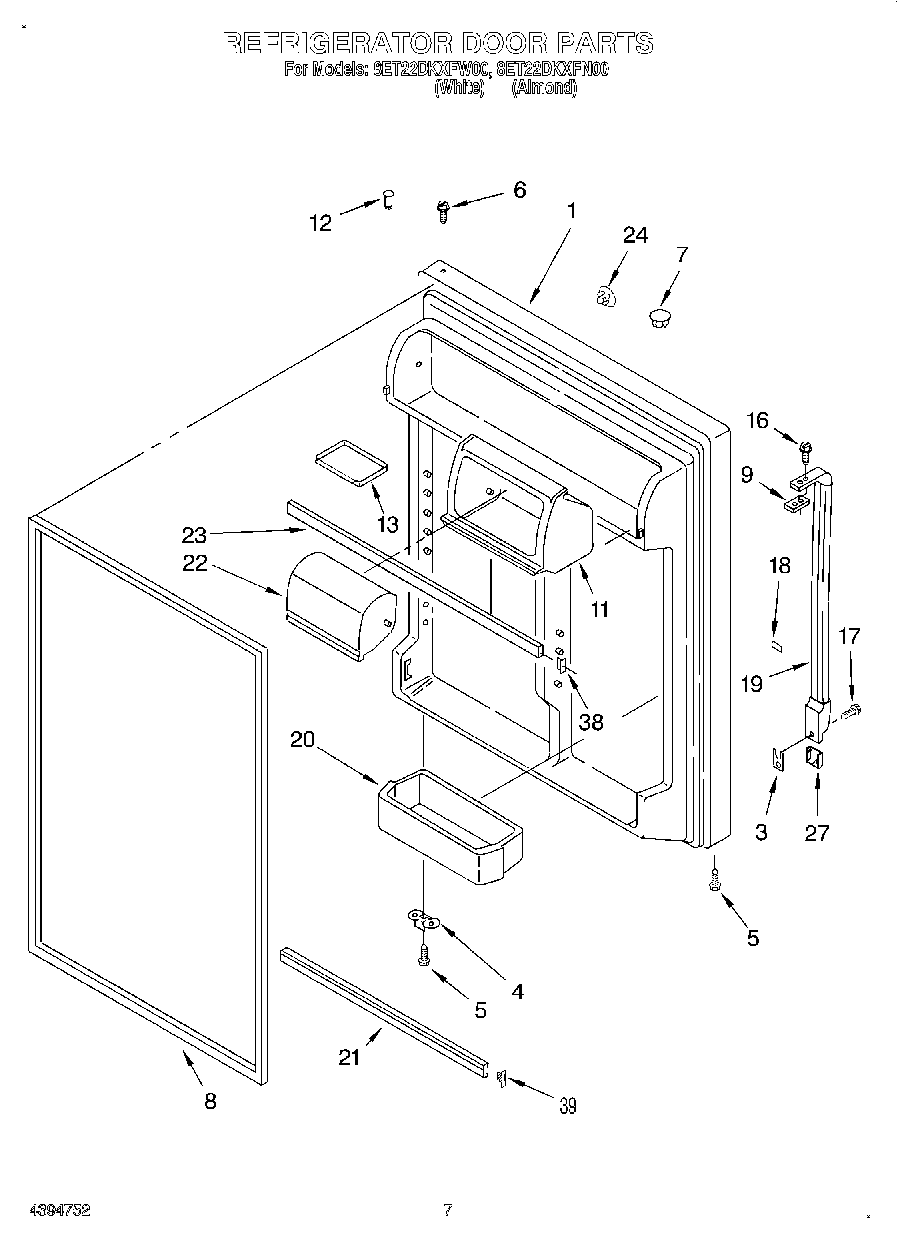

8ET22DKXFW00 04 – REFRIGERATOR DOOR

8ET22DKXFW00 04 – REFRIGERATOR DOOR

Written by

in

8ET22DKXFW00 04 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.8 & No.12) (White)
1Refrigerator Door (Includes No.8 & No.12) (Almond)
3Shim, Handle
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
82159073 Whirlpool Refrigerator Door Gasket
9Shim, Bottom
11Housing Compartment
12WP2183003 Whirlpool Thimble
13Tray, Door
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18Shim
19Handle (Almond)
19Handle (White)
20BIN-CNTLVR
21WPW10421486 Whirlpool Refrigerator Door Trim
22DOOR-COMP
23Trim, Door Shelf
24WP2189000 Whirlpool Refrigerator Handle Plug
24Hole Plug (Almond)
27Cover, End Cap (Almond)
27Cover, Endcap (White)
38Endcap, Door Trim
39WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
100FeaturePak (Includes 4,12, 14,16,20,22,27, 37) Also See Ref. & Frz Door Pages.
