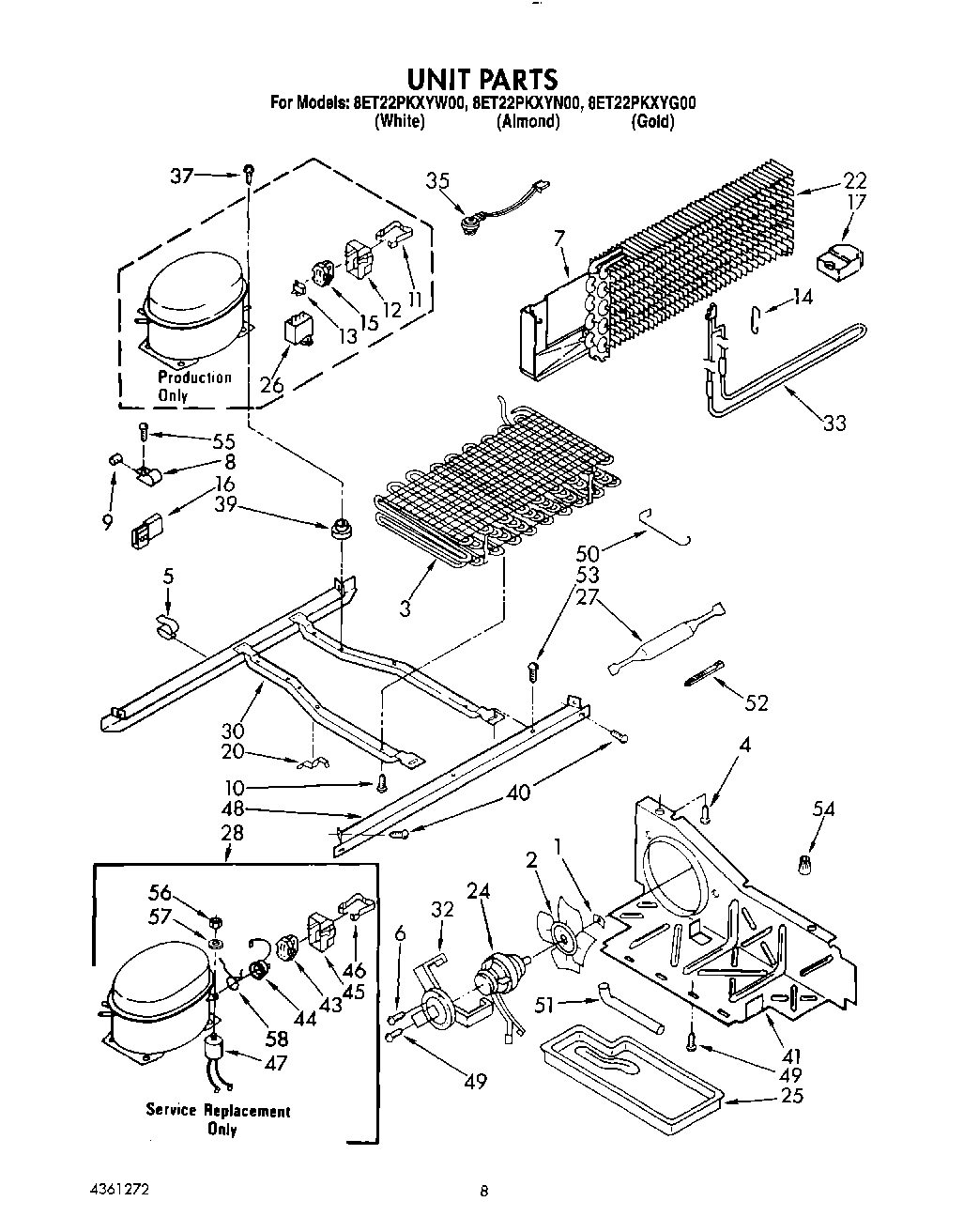

8ET22PKXYG00 06 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
8	Clamp Tube
9	Dampener (2)
10	WP489464 Whirlpool Refrigerator Screw
11	case spring
12	Case, Relay
13	Overload
14	Support, Heater
15	2154436 Whirlpool Refrigerator Start Relay
16	Housing Plug
17	Support (R.S.)
17	Support (L.S.)
20	Clip (2)
22	Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	WPW10662129 Whirlpool Refrigerator Run Capacitor
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 59) (Also Order 876765 Tube Kit)
30	2304903 Whirlpool Refrigerator Frame
32	Fan, Motor Bracket
33	Heater, Defrost
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover
46	Strap
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
51	Drain Extension
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
56	Nut
57	Washer
58	876764 Whirlpool Refrigerator Primary Valve
58	978027 Whirlpool Refrigerator Primary Valve
58	978030 Whirlpool Refrigerator Valve
58	VALVE, ACCESS (5/8“)
58	VALVE, ACCESS (1/2“)
58	978026 Whirlpool Refrigerator Primary Valve
58	Overload Spring
58	WP978025 Whirlpool Refrigerator Valve
