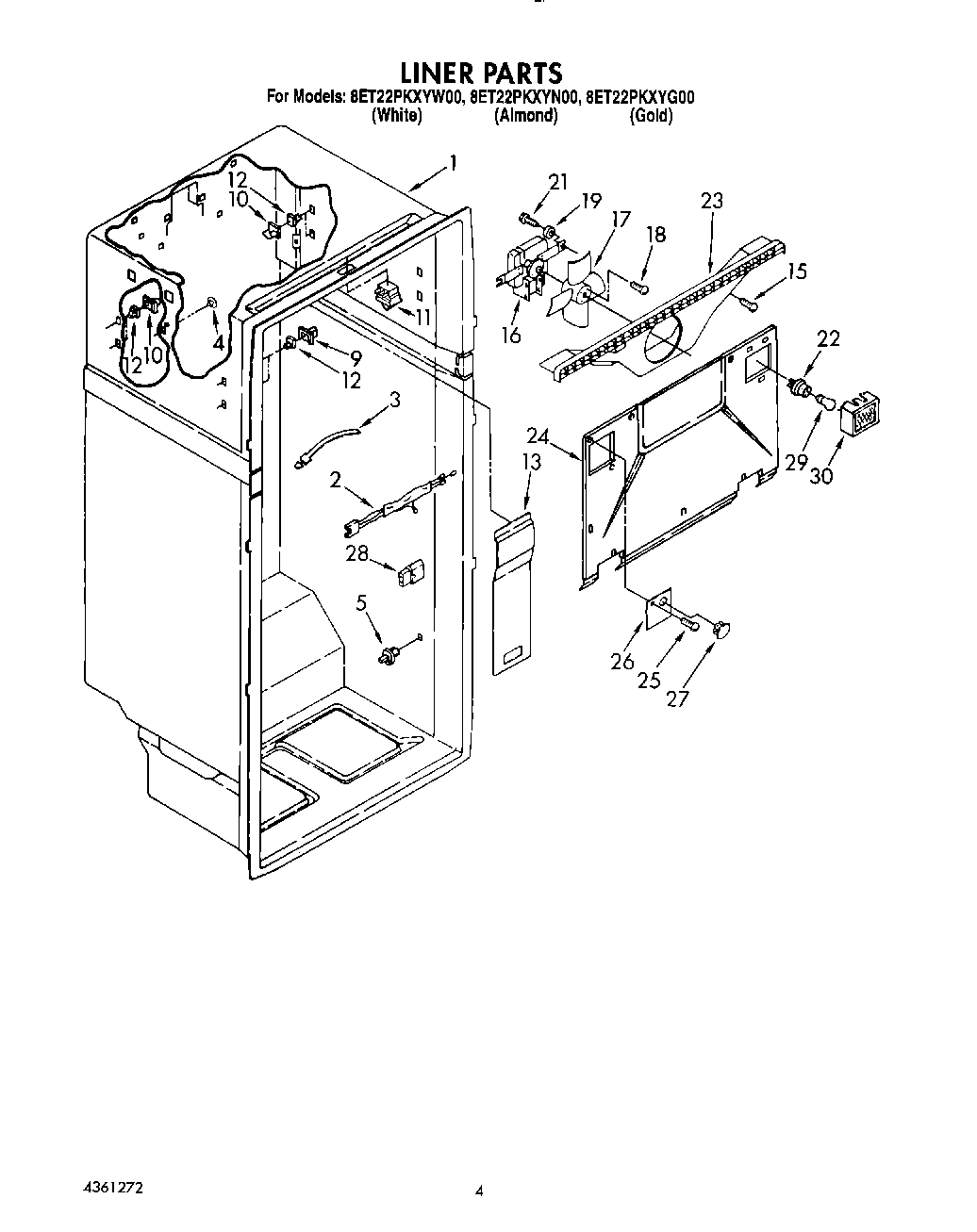

8ET22PKXYW00 03 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Wiring, Fan Motor
3	Clip, Strap
4	WP941839 Whirlpool Refrigerator Button Plug
5	W10854959 Whirlpool Refrigerator Shelf Stud
9	Stud, Front R.S.
10	819091 Whirlpool Refrigerator Shelf Stud
11	W11384469 Whirlpool Door Switch
12	Stud, Support
13	Cover, Air Duct
15	WP489478 Whirlpool Refrigerator Screw
16	482731 Whirlpool Refrigerator Evaporator Fan Motor Kit
17	WP1100938 Whirlpool Refrigerator Fan Blade
18	WP487887 Whirlpool Refrigerator Screw
19	Grommet
21	Screw (2)
22	SOCKET
23	Scroll, Fan
24	Evaporator Cover
25	SCREW
26	WP2217784 Whirlpool Refrigerator Cover
27	Hole Plug
28	WP717253 Whirlpool Dishwasher Connector
29	W11679940 Whirlpool Refrigerator Light Bulb Assembly
30	Light Lens
