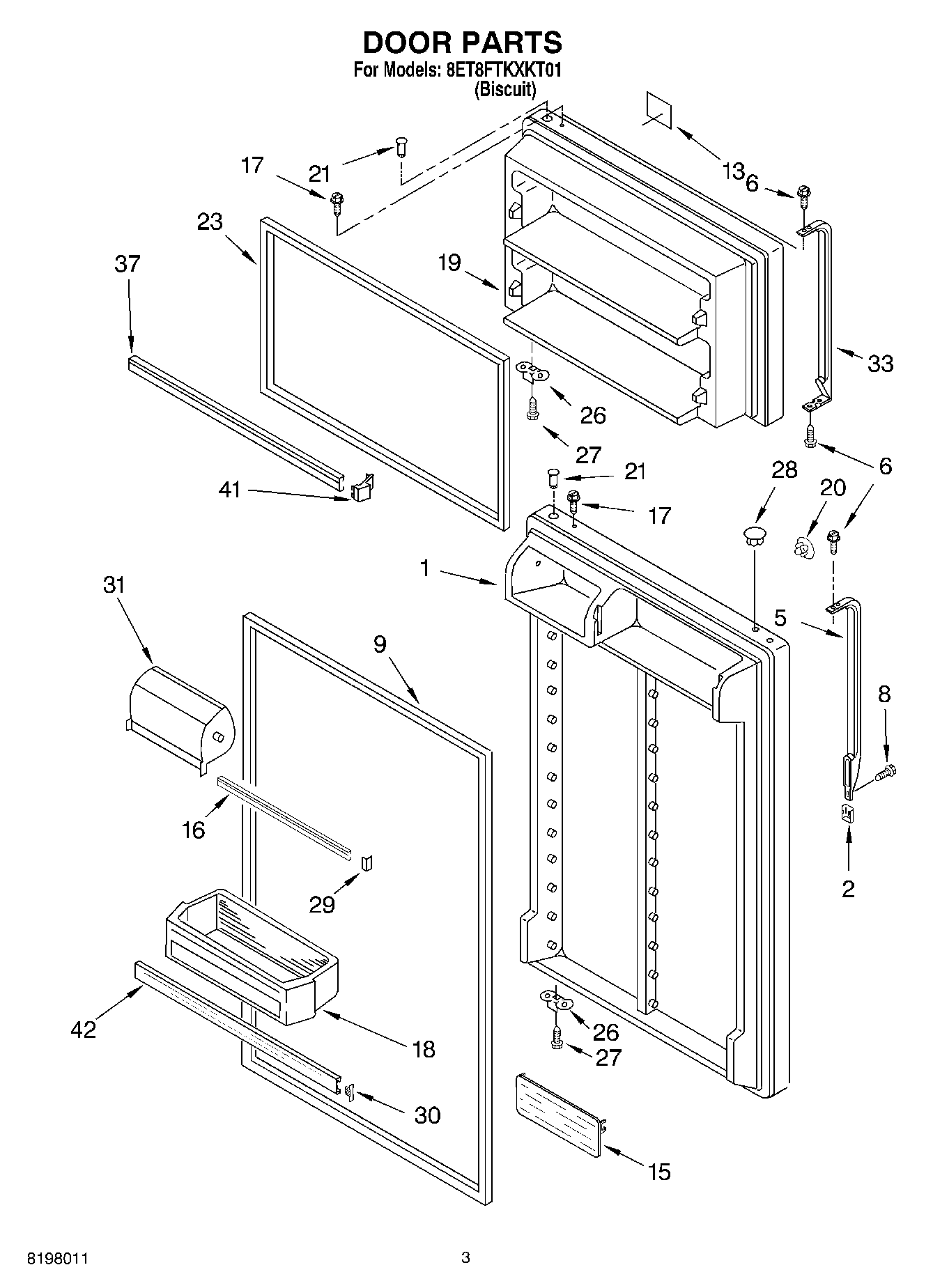

8ET8FTKXKT01 02 – DOOR

Products

PositionProduct
1Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Biscuit)
2Cover, Trim (Biscuit)
6WP489357 Whirlpool Recessed Screw
8WP8281146 Whirlpool Screw
92159057 Whirlpool Refrigerator Fresh Food Door Gasket
13Nameplate (Biscuit)
15WP2188234 Whirlpool Shelf
16TRIM-DOOR
17WP8281206 Whirlpool Refrigerator Screw
18WP2204810 Whirlpool Refrigerator Cantilever Bin
19Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
20WP2200936 Whirlpool Refrigerator Handle Plug
21WP2183003 Whirlpool Thimble
232159327 Whirlpool Refrigerator Door Gasket
26W11745278 Whirlpool Bracket
27WP488921 Whirlpool Refrigerator Screw
28WP2212649 Whirlpool Refrigerator Button Plug
29ENDCAP-TRM
30WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31WP2218113 Whirlpool Dairy Door
334388949 Whirlpool Refrigerator Handle
37Trim-Door (2)
41ENDCAP
42WPW10421484 Whirlpool Refrigerator Door Trim
