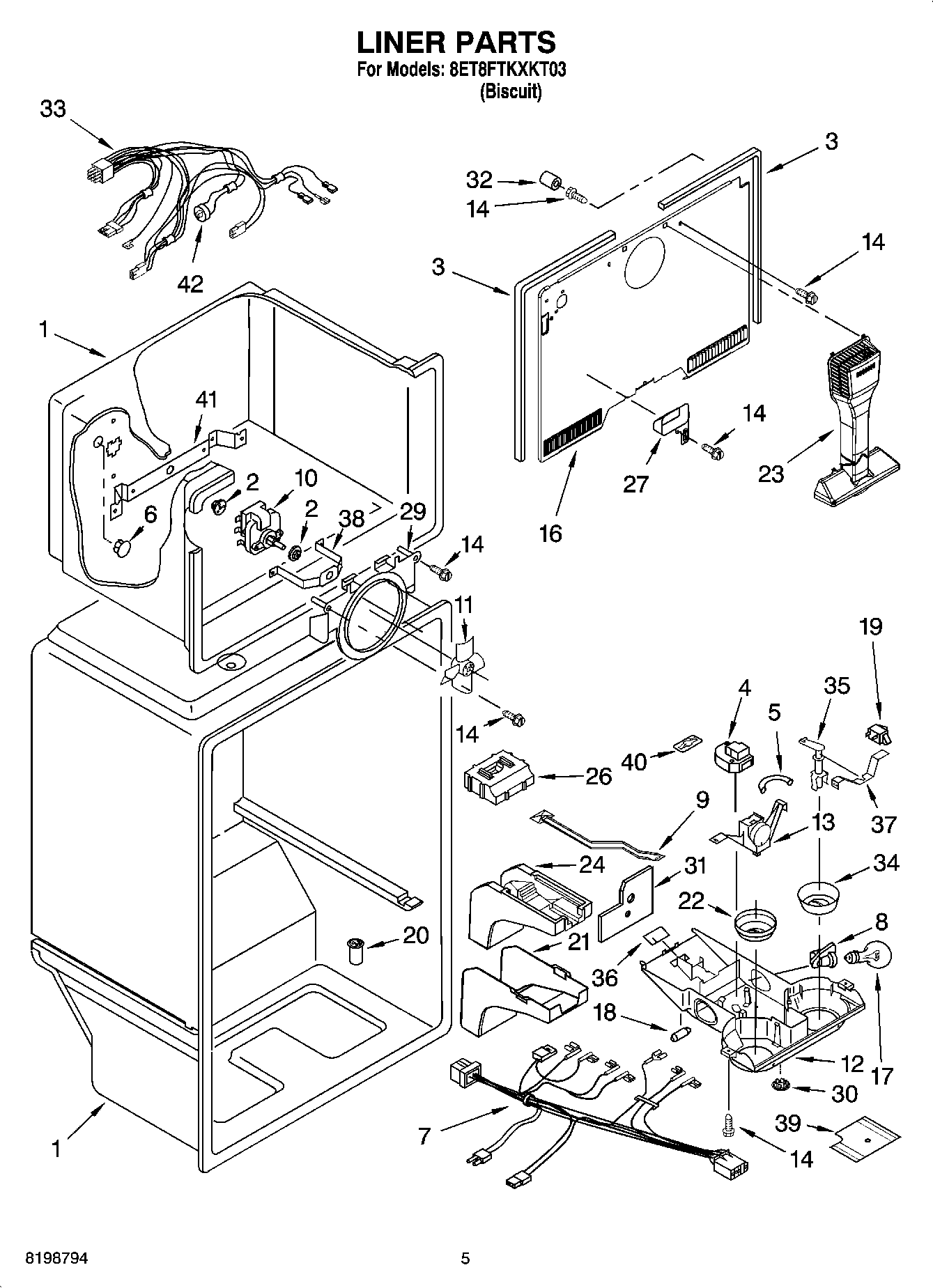

8ET8FTKXKT03 03 – LINER PARTS
Written by
in
8ET8FTKXKT03 03 – LINER PARTS
Products
Position
Product
1
Liner (Not A Serviceable Part)
2
WP2264462 Whirlpool Refrigerator Grommet
3
WP2254360 Whirlpool Refrigerator Gasket
4
Defrost Timer
5
Thermostat Tube Barrier
6
WP941839 Whirlpool Refrigerator Button Plug
7
Wire Assy. Control Box
8
4387478 Whirlpool Refrigerator Light Socket
9
Damper, Air
10
WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11
WP2163777 Whirlpool Refrigerator Fan Blade
12
Control Box
13
Thermostat Assy. (Includes Illus. 5 & 18)
14
WP489478 Whirlpool Refrigerator Screw
16
Cover-Evaporator
17
RANGE ONLY 40W 120V APPL BULB
18
Weight, Thermal
19
W11384469 Whirlpool Door Switch
20
WP2210509 Whirlpool Refrigerator Tub Valve
21
Cover, Air Diffuser
22
W10829461 Whirlpool Refrigerator Thermal Knob
23
WP2254354 Whirlpool Refrigerator Air Tower
24
WP2189452 Whirlpool Refrigerator Diffuser
26
Air Diffuser, Top
27
Cover, Hole
29
Bracket, Fan Motor
30
940014 Whirlpool Refrigerator Primary Button Plug
31
Shield, heat
32
WP487996 Whirlpool Refrigerator Cap Tube
33
Wire Assembly, Freezer Compartment
34
Knob, Damper
35
Post, Damper
36
WP2205079 Whirlpool Refrigerator Seal
37
Bracket, Damper Knob
38
Bracket, Evap. Fan, Front
39
Shield
40
Clip, Defrost Timer
41
Bracket, Evap. Fan, Rear
42
WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
←
